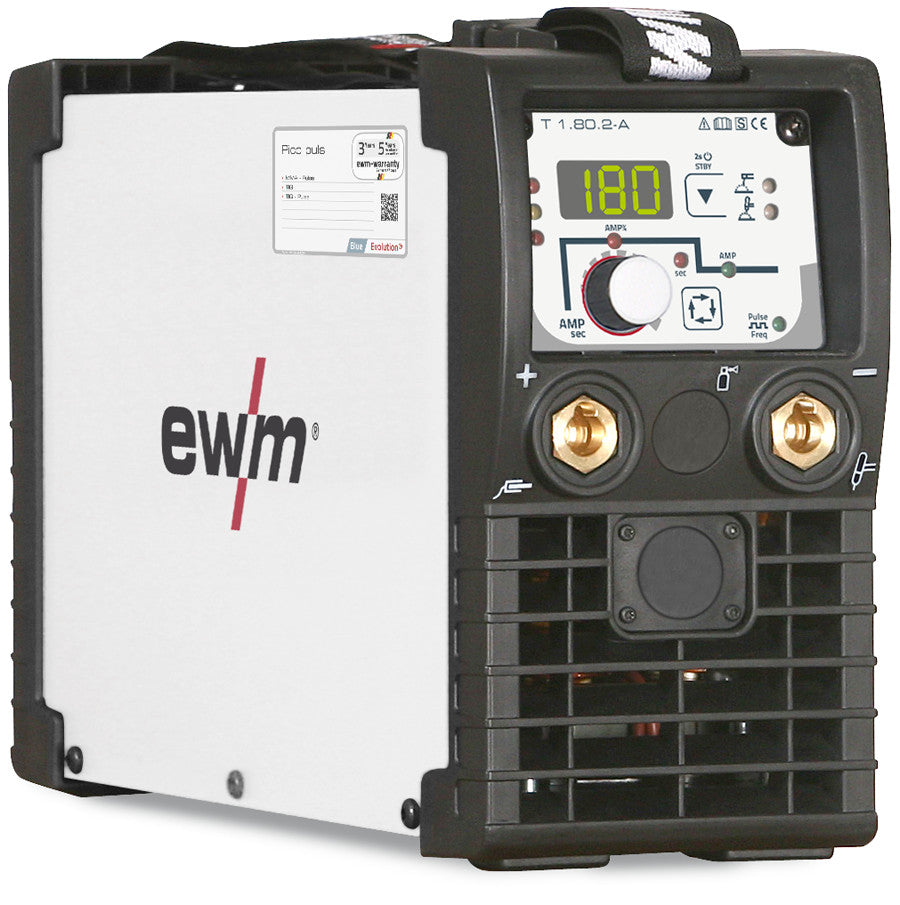

EWM 090-005545-00502 Pico 180 puls 230V, 180Amps

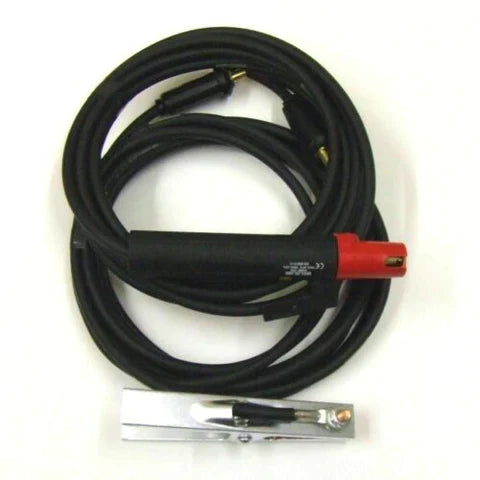

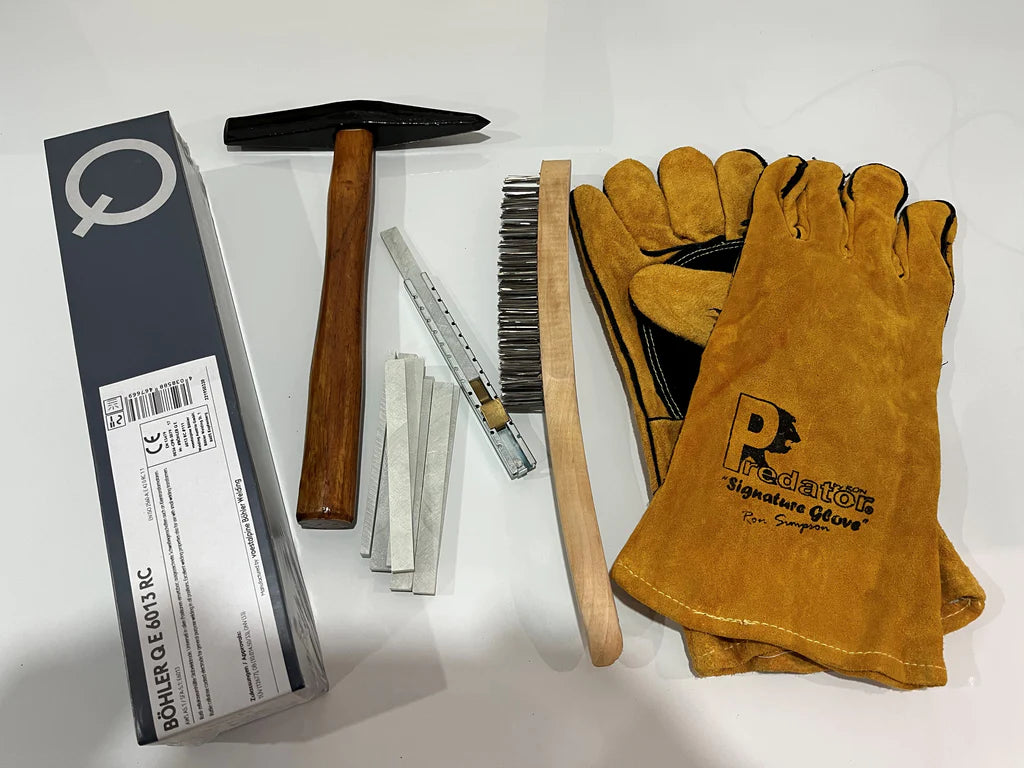

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
- Inverter welding machine, DC
- Welding procedures and functions
- MMA and pulsed TIG welding
- MMA welding
- TIG lift arc welding
- Arc-force and hot start can be set
- Your benefits
- Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
- Robust design suitable for construction site use
- Impact-resistant casing
- Connection capability for remote control
- Portable, shoulder strap
- Energy-saving thanks to high efficiency and standby function
- IP23 spray water protected
- Available with open circuit voltage reduction, VRD (to AS 1674.2-2003; IEC/DIN EN 60974-1 and ГОСТ 12.2 007.8)
- Dynamic power adjustment: The welding machine can be operated with a 16 A and a 20 A mains fuse (details can be found in the operating instructions)
- Delivered with mains plug unassembled
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
|
Version |
Pico 180 puls |
|
Setting range for welding current |
5 A - 180 A |
|
Duty cycle 40 °C |
180 A / 25 % |
|
130 A / 60 % |
|
|
120 A / 100 % |
|
|
Open circuit voltage |
98 V |
|
Mains tolerances (ex works) |
-40 % up to +15 % |
|
Mains frequency |
50 Hz / 60 Hz |
|
Recommended generator power |
9.3 kVA |
|
Protection classification |
IP23 |
|
Test mark |
|
|
EMC class |
A |
|
Dimensions (L x B x H) |
428 mm x 136 mm x 252 mm |
|
16.9 inch x 5.4 inch x 9.9 inch |
|
|
Weight |
8.3 kg / 18.3 lbs |
|
Standards |
IEC 60974-1 and -10 CL.A |
