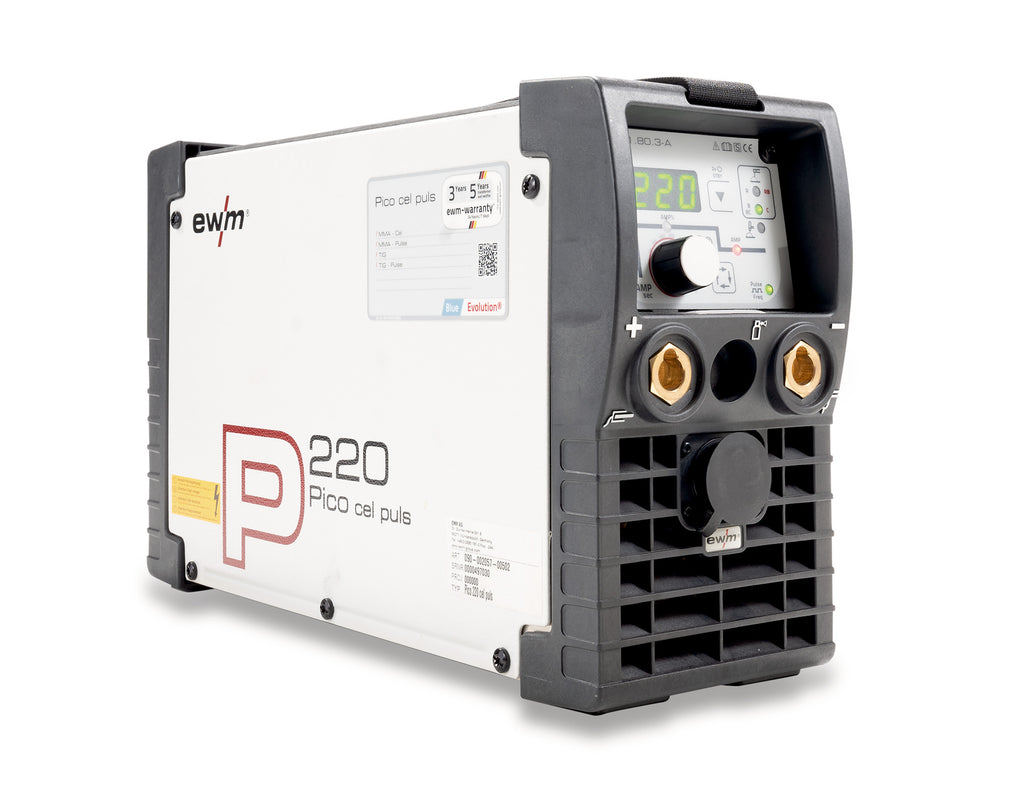

EWM 090-002057-00502 Pico 220 cel puls 400V, 220Amps
- Inverter welding machine, DC
- Welding procedures and functions
- MMA and pulsed Tig welding
- MMA welding
- Tig lift arc welding
- Cel characteristic
- Arc-force, hot start, antistick
- Arc-force and hot start can be set
- Your benefits
- Cellulose electrodes: 100% safe for vertical-down welding
- Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
- Robust design suitable for construction site use
- Impact-resistant casing
- Connection capability for remote control
- Portable, shoulder strap
- Energy-saving thanks to high efficiency and standby function
- IP23 spray water protected
- 5 m mains supply lead
- Available with open circuit voltage reduction, VRD (to AS 1674.2-2003; IEC/DIN EN 60974-1 and ГОСТ 12.2 007.8)
-
Version
Pico 220 cel puls
Setting range for welding current
10 A - 220 A
Duty cycle 40 °C
220 A / 30 %
160 A / 60 %
140 A / 100 %
Open circuit voltage
97 V
Mains tolerances (ex works)
-25 % up to +20 %
Mains frequency
50 Hz / 60 Hz
Recommended generator power
10.8 kVA
Power consumption Pi
12 W
Protection classification
IP23
Test mark
EMC class
A
Dimensions (L x B x H)
428 mm x 136 mm x 252 mm
16.9 inch x 5.4 inch x 9.9 inch
Weight
10.5 kg / 23.2 lbs
Standards
IEC 60974-1 and -10 CL.A
