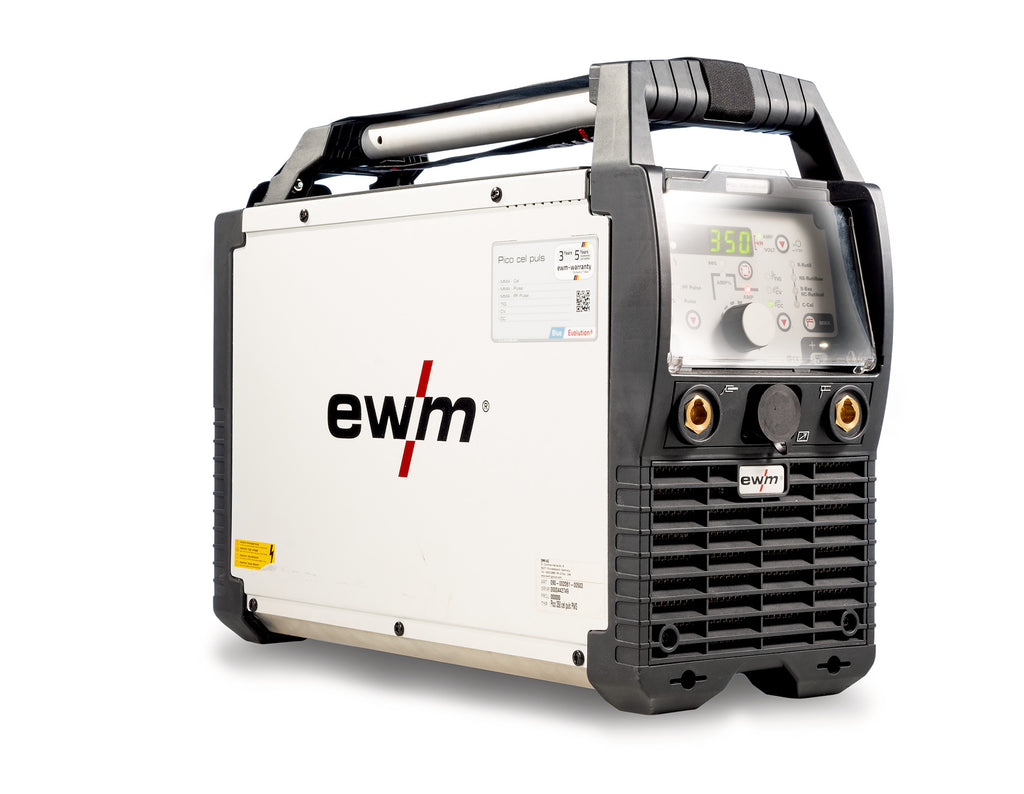

EWM Pico 350 cel puls 400V, 350Amps

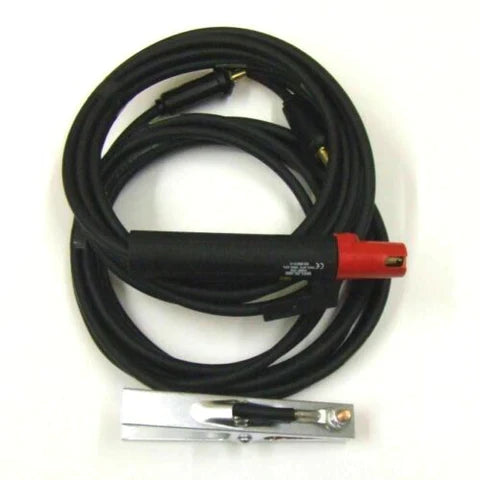

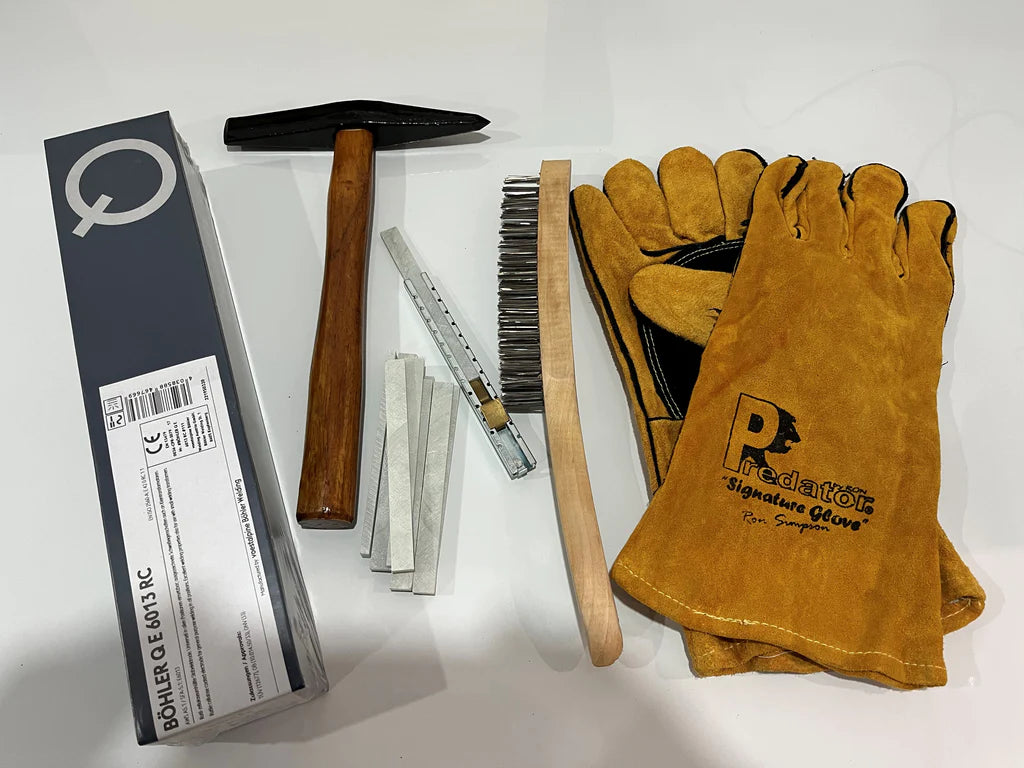

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
-
Robust and handy CC/CV multiprocessing inverter welding machine suitable for use on building sites
-

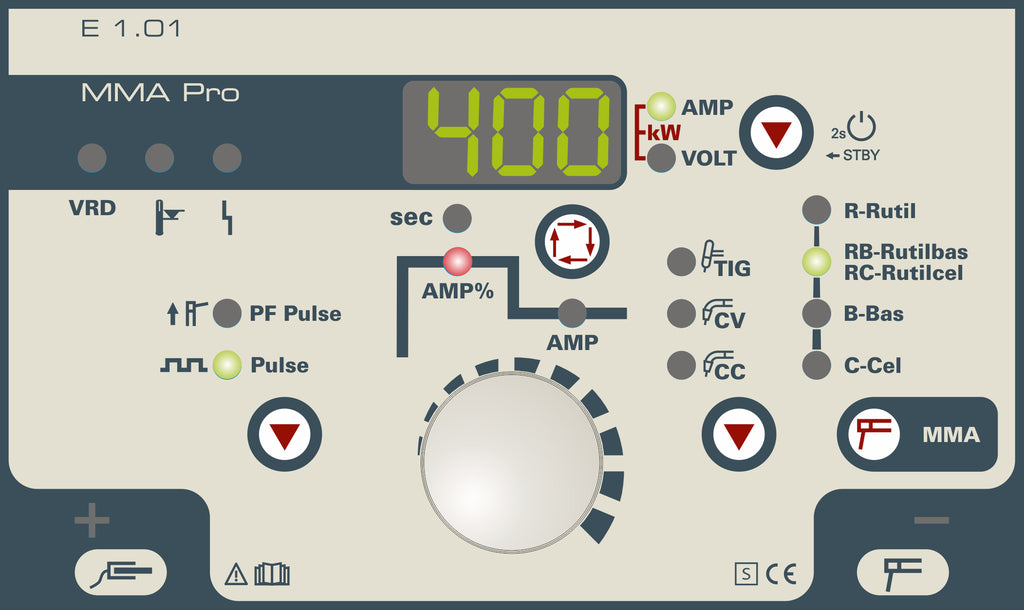

Welding procedures and functions
-
CC/CV characteristic
-
MMA and pulsed TIG welding
-
MMA welding
-
TIG lift arc welding
-
PF pulse function
-
Cel characteristic
-
Arc-force, hot start, antistick
-
Arc-force and hot start can be set
-
GMAW welding with Pico drive 4L
-
Suitable for flux cored wire welding
-
Your benefits
-
Perfect MMA vertical-up welding thanks to PF pulse function
-
Cellulose electrodes: 100% safe for vertical-down welding
-
Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
-
Robust design suitable for construction site use
-
Impact-resistant casing
-
Connection capability for remote control
-
Inspected protection against splash water (IP-34s)
-
Portable, shoulder strap
-
Energy-saving thanks to high efficiency and standby function
-
5 m mains supply lead
-
Available with open circuit voltage reduction, VRD (to AS 1674.2-2003; IEC/DIN EN 60974-1 and ГОСТ 12.2 007.8)
-
Included in the delivery ex works:
-
Practical cable strap for easy and organised transport of e.g. earth cable, welding torch, electrode holder, etc. (see figure 2)
-
Cable holder for winding up the mains cable – guarantees convenient transport (see figure 3
-
Version
Pico 350 cel puls
Setting range for welding current
10 A - 350 A
Duty cycle 40 °C
350 A / 35 %
280 A / 60 %
230 A / 100 %
Open circuit voltage
95 V
Mains tolerances (ex works)
-25 % up to +20 %
Mains frequency
50 Hz / 60 Hz
Recommended generator power
20.3 kVA
Protection classification
IP34
Test mark
EMC class
A
Dimensions (L x B x H)
539 mm x 210 mm x 415 mm
21.2 inch x 8.3 inch x 16.3 inch
Weight
23.5 kg / 51.8 lbs
Standards
IEC 60974-1 and -10 CL.A
