EWM

EWM Picomig 220 Puls TKG 230V, 220Amps

  • Sale
  • £2,595.46
  • Regular price £3,707.80

Excludes VAT



EWM Picomig 220 puls TKG 230V, 220Amps

The price shown includes the following components:

  • Multiprocess MIG/MAG pulse welding machine, compact, portable, Euro torch connector, with PFC module, for 5 kg D200 spools

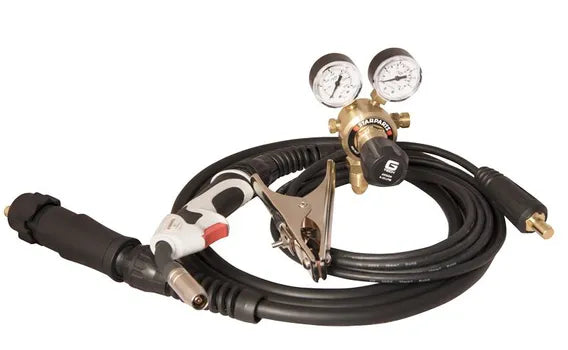

  • MIG/MAG welding torch, gas-cooled, 4 m

  • Workpiece lead with clamp, 230 A / 60 %, 25 mm²

  • Gas hose, 2 m

  • Pressure regulator with manometer, 30 l

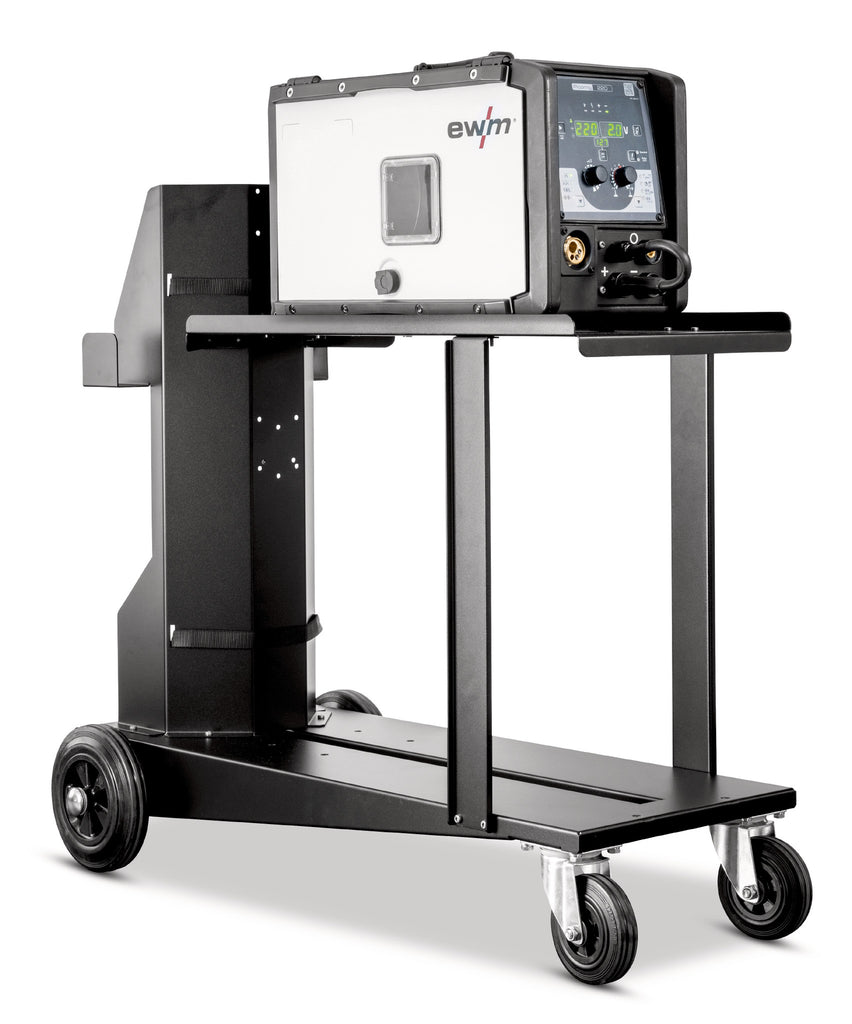

  • Transport cart (four wheels) for moving a power source, cooling unit or a tool box and one shielding gas cylinder,

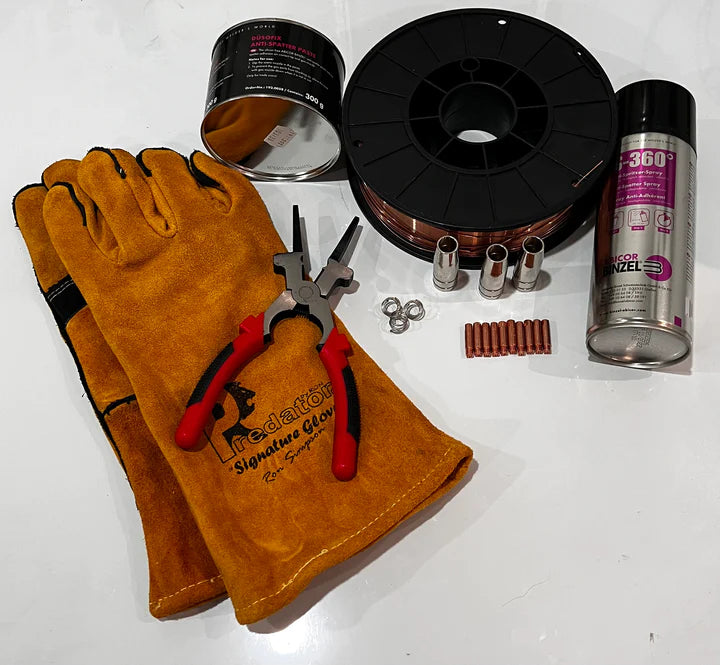

  • All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers  16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin

  • Multiprocessing MIG/MAG pulse welding machine, compact, portable, Euro torch connector, with PFC module, for 5 kg D200 spools

  • High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology

  • Welding procedures and functions

  • GMAW pulsed welding and GMAW standard welding

  • Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function

  • GMAW pulse welding of aluminium and aluminium alloys

  • Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires

  • MMA welding and TIG lift arc welding

  • Perfect for welding self-shielding flux cored wires

  • Infinitely adjustable arc dynamics (choke effect)

  • Non-latched/latched operation

  • Interval welding

  • Adjustable gas pre- and post-flow time

  • Your benefits

  • Portable, compact

  • No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works

  • Robust casing suitable for construction site use

  • High open circuit voltage for excellent ignition characteristics

  • 4-roll drive

  • Energy-saving thanks to high efficiency and standby function

  • Easy, tool-free change of welding polarity

  • Insulated wire space

  • 3.5 m mains supply lead with 16 A shock-proof plug

  • Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355

  • Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

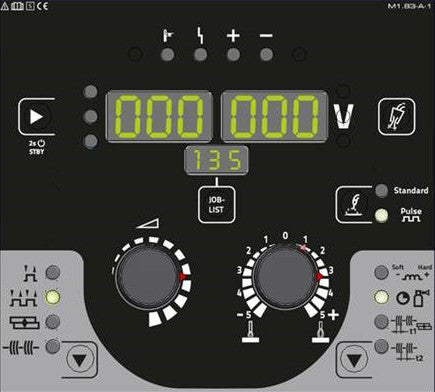

  • Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list

  • GMAW pulsed welding and GMAW standard welding

  • Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function

  • GMAW pulse welding of aluminium and aluminium alloys

  • Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires

  • MMA welding and TIG lift arc welding

  • Perfect for welding self-shielding flux cored wires

  • Infinitely adjustable arc dynamics (choke effect)

  • Non-latched/latched operation

  • Interval welding

  • Adjustable gas pre- and post-flow time

  • Operation mode

    One-knob operation

    Welding process

    MIG/MAG

    MIG/MAG pulse

    TIG

    MMA

    Operating modes

    Non-latched

    Latched

    Resistance spot welding

    Interval

    Parameters in display

    Welding current

    Wire feed speed

    Plate thickness

    Error code JOB number

    Polarity display

    Number of JOBs

    50

    Functions

    Wire burn-back

  • Version

    Picomig 220 puls TKG

    Setting range for welding current

    5 A - 220 A

    Duty cycle 40 °C

    220 A / 30 %

    170 A / 60 %

    150 A / 100 %

    Open circuit voltage

    70 V

    Mains tolerances (ex works)

    -40 % up to +15 %

    Mains frequency

    50 Hz / 60 Hz

    Recommended generator power

    8.8 kVA

    Power consumption Pi

    15 W

    Factory-installed roll equipment

    0.8 + 1.0 mm / Steel

    Spool diameter

    D200

    Torch connection

    Euro torch connector

    Protection classification

    IP23

    Test mark



    EMC class

    A

    Dimensions (L x B x H)

    559 mm x 276 mm x 340 mm

    22 inch x 10.9 inch x 13.4 inch

    Weight

    18 kg / 39.7 lbs

    Standards

    IEC 60974-1, -5 and -10 CL.A

    Operation mode

    One-knob operation

    Welding process

    MIG/MAG

    MIG/MAG pulse

    TIG

    MMA

    Operating modes

    Non-latched

    Latched

    Resistance spot welding

    Interval

    Parameters in display

    Welding current

    Wire feed speed

    Plate thickness

    JOB number

    Error code

    Polarity display

    Number of JOBs 50
    Functions Wire burn-back
