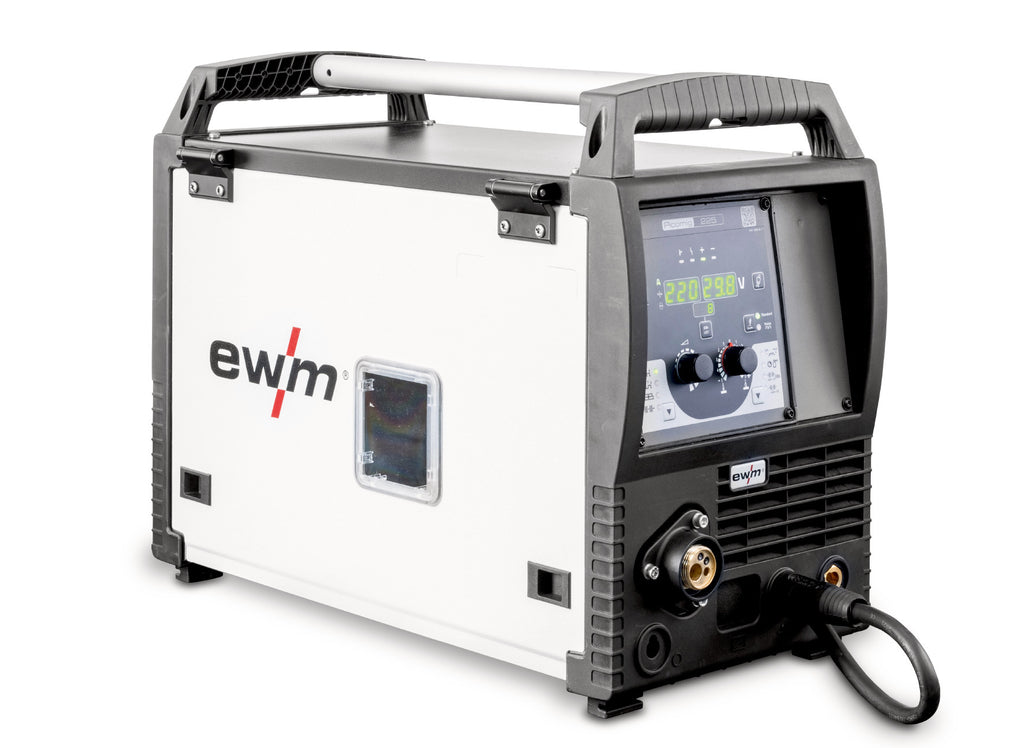

EWM 090-005682-00502 Picomig 225 Puls TKG 230V, 220Amps

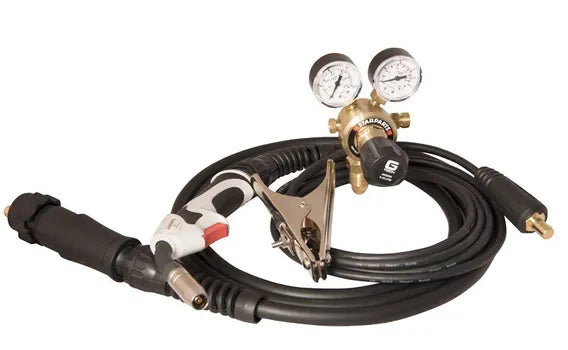

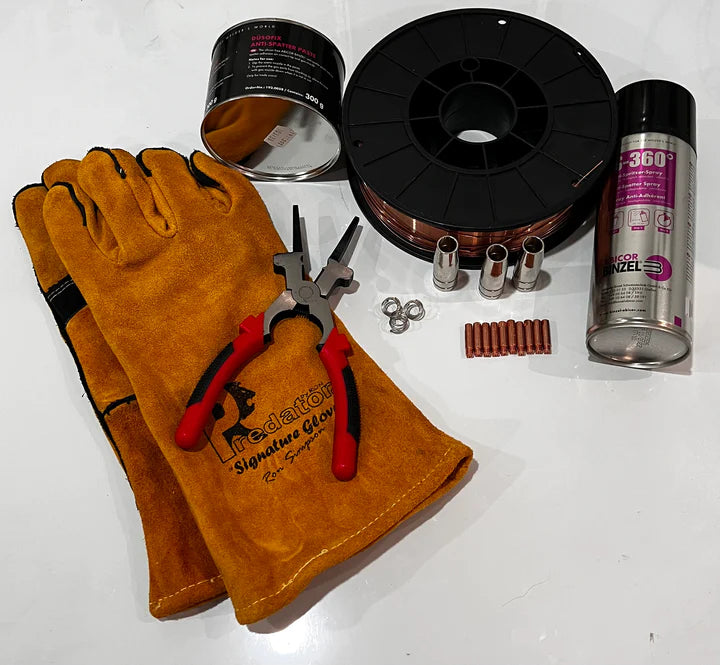

All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
- Multiprocessing MIG/MAG pulse welding machine, compact, portable, Euro torch connector, with PFC module, for 15 kg D300 spools
- High-efficiency current draw thanks to integrated PFC (Power Factor Correction) technology
- Welding procedures and functions
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
- Your benefits
- No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
- Portable or can be carried on a trolley
- High-precision, powerful EWM eFeed 4-roll wire feed mechanism for secure feeding of all solid and flux cored wires
- High open circuit voltage for excellent ignition characteristics
- Energy-saving thanks to high efficiency and standby function
- Easy, tool-free change of welding polarity
- Insulated wire space
- Delivery includes practical torch holder
- 3.5 m mains supply lead with 16 A shock-proof plug
- Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

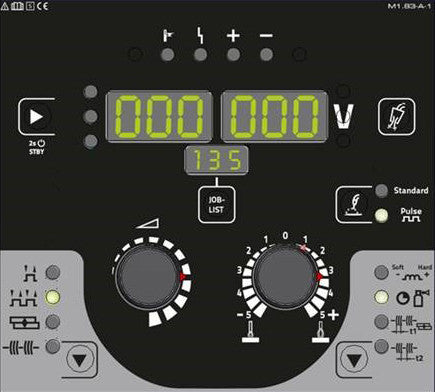

Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
Technical Data
| Version | Picomig 225 puls TKG |
| Setting range for welding current | 5 A - 220 A |
| Duty cycle 40 °C | 220 A / 30 % |
| 170 A / 60 % | |
| 150 A / 100 % | |
| Open circuit voltage | 70 V |
| Mains voltage (ex works) | 1 x 230 V |
| Mains tolerances (ex works) | -40 % up to +15 % |
| Mains frequency | 50 Hz / 60 Hz |
| Recommended generator power | 8.8 kVA |
| Efficiency | 86 % |
| Power consumption Pi | 15 W |
| Wire feed speed | 1 m/min - 18 m/min |
| 39.37 ipm - 708.662 ipm | |
| Factory-installed roll equipment | 0.8 – 0.9 –1.0 mm UNI / Steel |
| Spool diameter | D200/D300 |
| Torch connection | Euro torch connector |
| Protection classification | IP23 |
| Test mark | |
| EMC class | A |
| Dimensions (L x B x H) | 636 mm x 298 mm x 482 mm |
| 25 inch x 11.7 inch x 19 inch | |
| Weight | 24 kg / 52.9 lbs |
| Standards | IEC 60974-1, -5 and -10 CL.A |
