EWM 090-005683-00502 Picomig 225 Synergic TKG 230V, 220Amps
The price shown includes the following components:

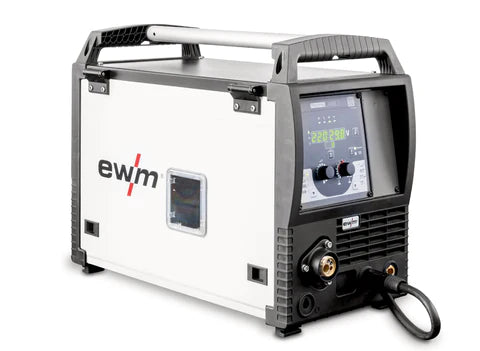

- Multiprocessing MIG/MAG welding machine, compact, portable, Euro torch connector, with PFC module, for 15 kg D300 spools

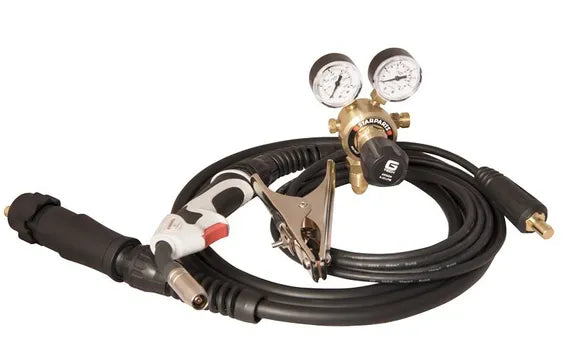

- MIG/MAG welding torch, gas-cooled, 4 m
- Workpiece lead with clamp, 290 A / 60 %, 35 mm²
- Gas hose, 2 m
- Pressure regulator with manometer, 30 l

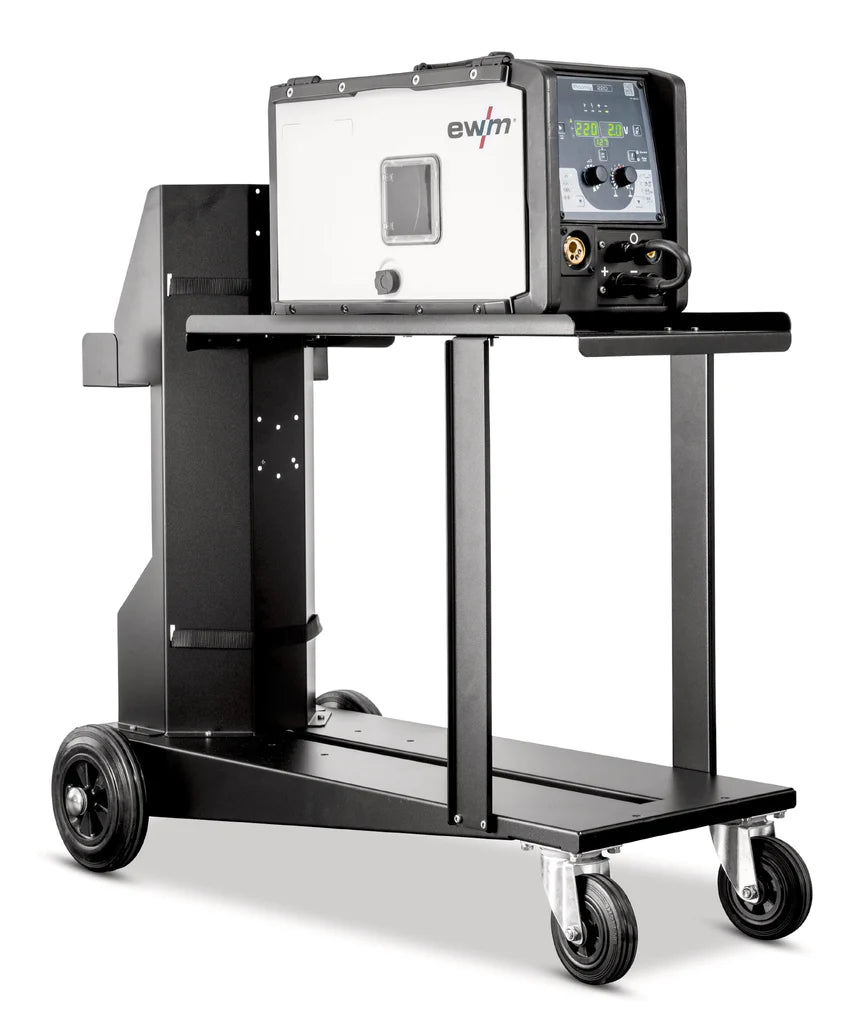

- Transport cart (four wheels) for moving a power source, cooling unit or a tool box and one shielding gas cylinder, assembled
- Tool box for mounting to transport cart Trolly 55-5/Trolly 55-6/Trolly 53/Trolly 54/Trolly XQ 55-5

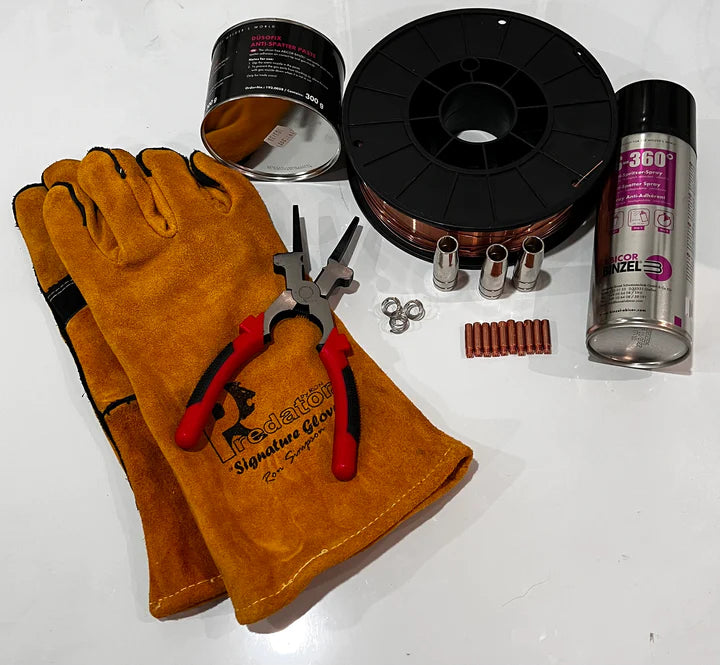

- All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
- Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
- GMAW standard welding
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
|
Operation mode |
One-knob operation |
|
Welding process |
MIG/MAG |
|
TIG |
|
|
MMA |
|
|
Operating modes |
Non-latched |
|
Latched |
|
|
Resistance spot welding |
|
|
Interval |
|
|
Parameters in display |
Welding current |
|
Wire feed speed |
|
|
Plate thickness |
|
|
JOB number |
|
|
Error code |
|
|
Polarity display |
|
|
Number of JOBs |
35 |
|
Functions |
Wire burn-back |
|
Version |
Picomig 225 Synergic TKG |
|
Setting range for welding current |
5 A - 220 A |
|
Duty cycle 40 °C |
220 A / 30 % |
|
170 A / 60 % |
|
|
150 A / 100 % |
|
|
Open circuit voltage |
70 V |
|
Mains tolerances (ex works) |
-40 % up to +15 % |
|
Mains frequency |
50 Hz / 60 Hz |
|
Recommended generator power |
8.8 kVA |
|
Power consumption Pi |
15 W |
|
Wire feed speed |
1 m/min - 18 m/min |
|
39.37 ipm - 708.662 ipm |
|
|
Factory-installed roll equipment |
0.8 – 0.9 –1.0 mm UNI / Steel |
|
Spool diameter |
D200/D300 |
|
Torch connection |
Euro torch connector |
|
Protection classification |
IP23 |
|
Test mark |
|
|
EMC class |
A |
|
Dimensions (L x B x H) |
636 mm x 298 mm x 482 mm |
|
25 inch x 11.7 inch x 19 inch |
|
|
Weight |
24 kg / 52.9 lbs |
|
Standards |
IEC 60974-1, -5 and -10 CL.A |
