Powerful, lightweight and handy PipeCut 170E can be used for cutting both metal and plastic pipes. Because of its adjustable speed and steady torque feature it is ideal for cutting stainless steel and cast iron pipes. It offers hi-end performance for pipe fitting professionals.
Includes
- PipeCut Bag 2

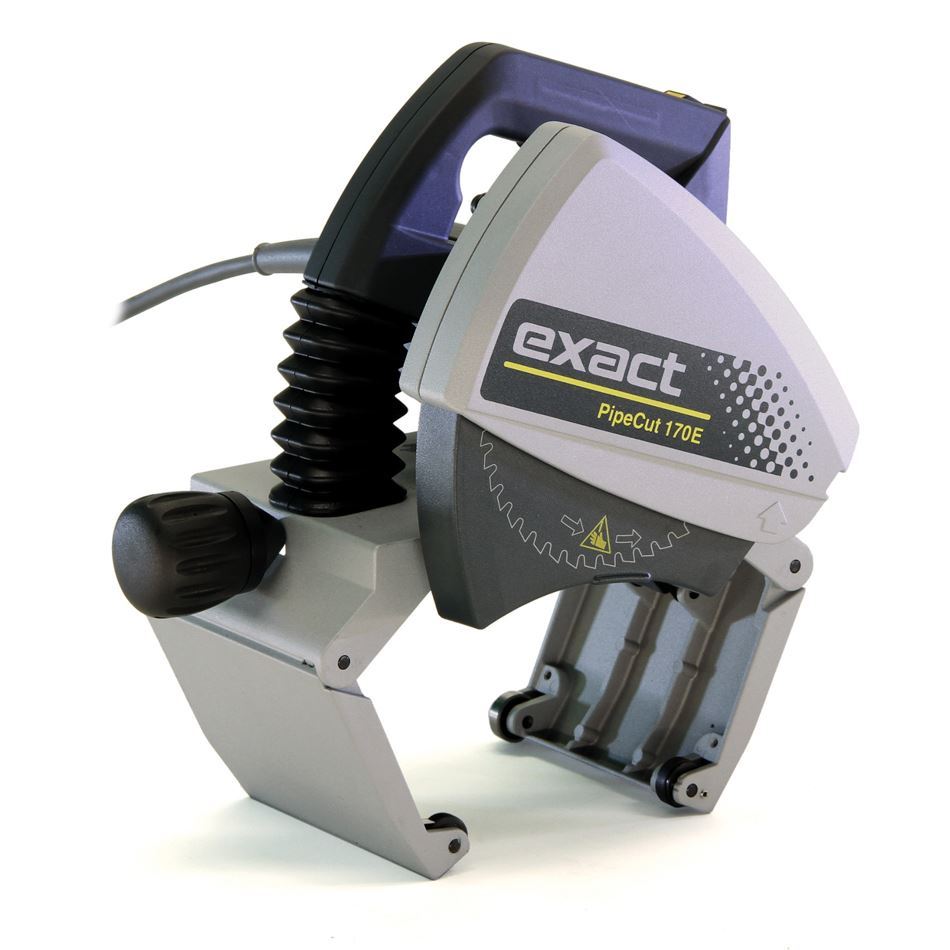

- Exact PipeCut 170 pipe saw

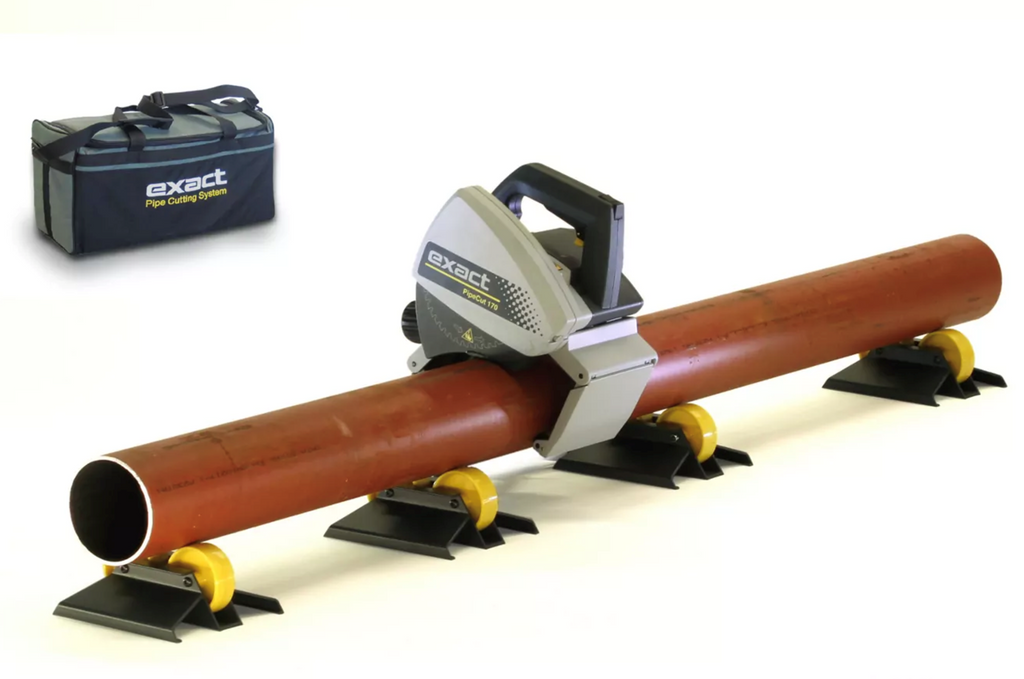

- Pipe Support 170, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine

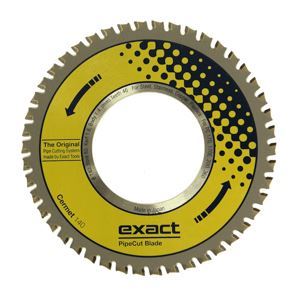

- TCT 140 blade fitted to the machine
| Pipe material |
Acid-resistant steel, Cast iron, Copper, Multi-layered materials, Plastic, Stainless steel, Steel |
|---|---|
| Pipe OD |
15mm – 170mm (0.6”- 6.7”) |
| Max. wall thickness |
8 mm (0.31“) steel, 14 mm (0.55“) plastic |
| Voltage / Power |
230V / 1200W |
| Voltage / Current |
110V, 120V / 9.2A |
| No-Load speed |
1600 – 3500 r/min |
| Blade diameter |
140mm (5.51”) |
| Mounting bore |
62mm (2.44”) |
| Weight |
5,7kg (12 lbs) |
| Electronical unit |
Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection |
4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
