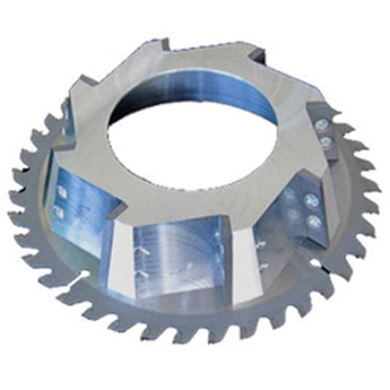

Cut Bevel Blade
Cut and bevel plastic pipes in one process
The blade is designed to cut and bevel plastic pipes in one process. The blade is intended for plastic materials.
The bevelling tips can be reversed when worn to obtain a new sharp cutting edge and extend the blade lifetime even further.
Available in (2) different models
| Blade model | Cut Bevel blade 148 | Cut Bevel blade 190 |
| Max. wall thickness | 22 mm (0,86″) | 40 mm (1,65″) |
| Fits machine models | P400, P1000 | P1000 |
| Suitable for cutting and bevelling | ✓ | ✓ |
Technical Data
| Machine type |
PC P1000, PC P400 |
|---|---|
| Dimensions (mm) |
148 x 62 x 2/30 x 40/8, 190 x 62 x 2/30 x 45/8 |
| Product number |
7010499 |
