Exact 7020999 PipeCut Infinity System 110V/230V
Cutting the world’s largest pipes

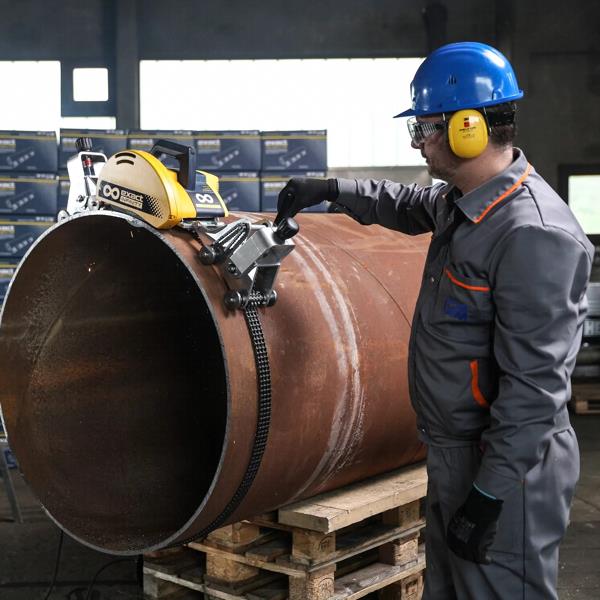

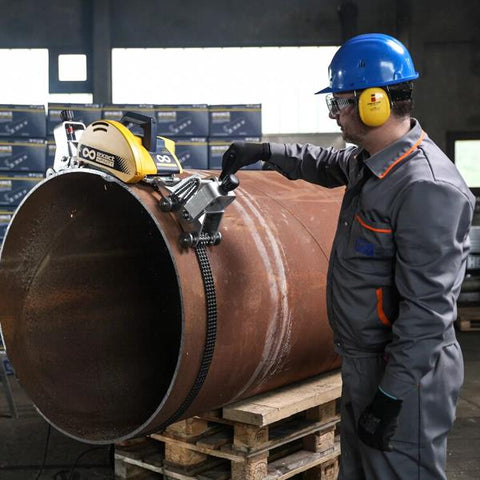

Exact Infinity takes pipe cutting to a whole new level. With no limits to cutting capacity for pipe outside diameters, Infinity truly means cutting without boundaries. You can handle virtually any pipe size with an outside diameter starting from 360 mm (14”) and up.

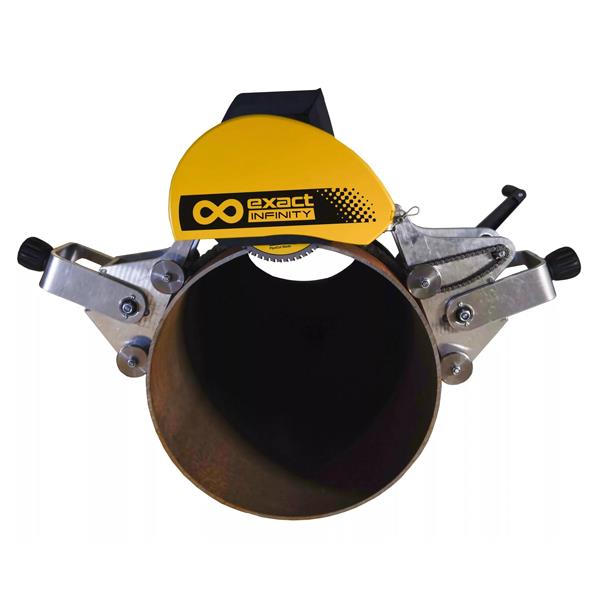

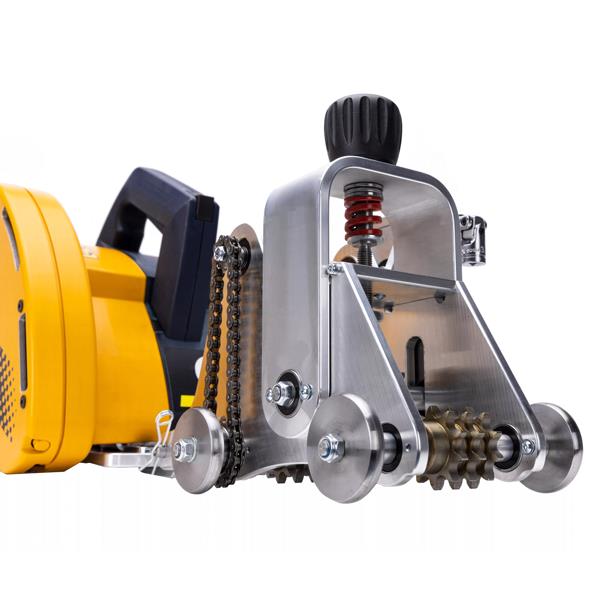

The system features a chain-based gripping mechanism that is as versatile as it is reliable. Thanks to the flexible chain segments, you can extend the gripping unit to accommodate pipes of any size.
compact form compared to traditional cutting methods.
As the name suggests, Infinity enables pipe cutting without boundaries when it comes to outside diameter. It can handle any pipe size from 360 mm (14”) OD and upwards.
The model includes a blade depth adjustment mechanism as standard.
Exact Infinity is a completely new type of pipe-cutting system. Unlike previous Exact models, it uses a chain-type gripping mechanism.
Thanks to the flexibility of the chain segments, the gripping unit can be extended as needed, allowing the system to accommodate larger pipe diameters without limitation.
By means of this innovative approach, pipe diameter limitations are no longer a concern – Infinity removes the boundaries traditionally associated with pipe-cutting capacity.
The machine can also be upgraded into a Cut & Bevel system by using the Cut & Bevel Package for Infinity (sold separately).
If operating the tensioner device with a crank feels too difficult, a version with a power drill connection is available (sold separately).
Good to know: Exact Tools also offers an Infinity model designed for wet and even fully underwater conditions. This version, operated by hydraulic power, is called HYDRA Infinity.
Features
- Easy and fast to attach to the pipe
- Safe to use: saw firmly attached during the cut
- Fast cutting process with very precise results
- Improved precision with traffic light system
- Blade depth adjustment mechanism
- Convertible into a Cut & Bevel machine with the Cut & Bevel package for Infinity (sold separately)
- Designed in Finland, made in the EU
Standard package includes
The equipment is supplied in 2 bags:
First bag:
- Shoulder bag

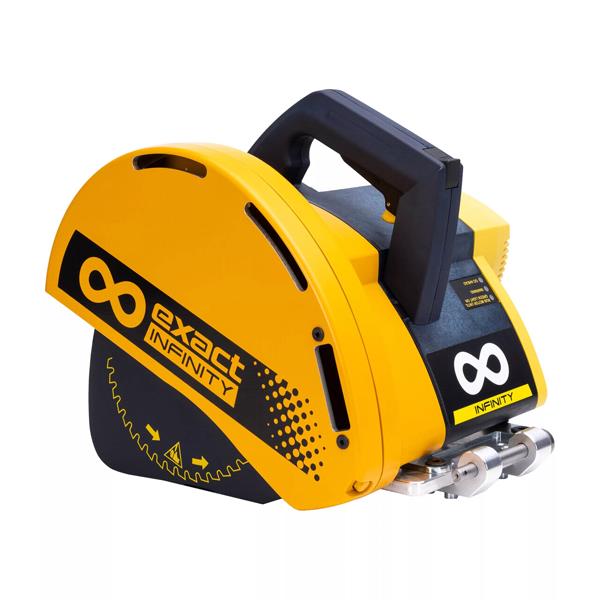

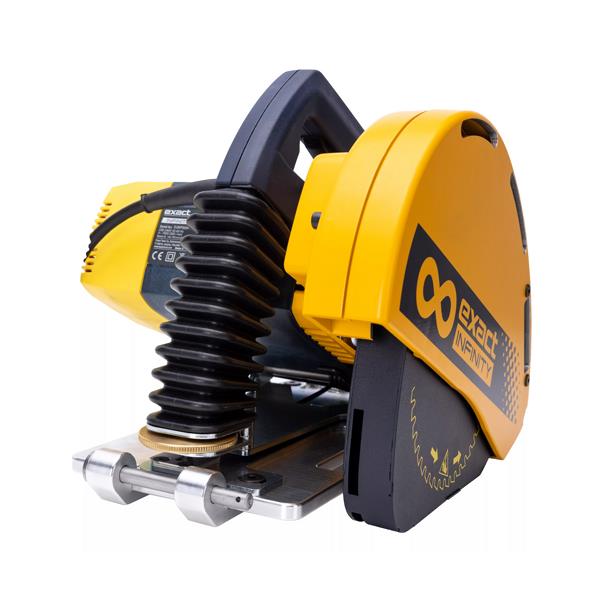

- PipeCut Infinity 2.0 motor unit with Cermet 165 blade installed
- Tensioner device
- Tensioner device with crank
- Operating instructions
- 5 mm Allen key attached to the saw
Second bag:
- Shoulder bag
- Box with chain segments for attaching the saw to the pipe:
- 2 m – 2 pcs
- 1 m – 1 pc
- 5 m – 1 pc
- 2 m – 2 pcs
- 1 m – 1 pc
- Pipe material - Stainless/Inox, Ductile (nodular cast iron), Glass fiber, Aluminium, Copper, Plastics.
- Pipe OD - 360 mm - Infinity
- Max. wall thickness - 20 mm (steel), 43 mm (plastic)
- Power - 1600 W
- No-Load speed - I (low) = 1900 /min, II (high) = 2900 /min
- Blade diameter - 140 mm, 165 mm, 180 mm, 190 mm
- Mounting bore - 62 mm
- Weight - 20 kg
- Electronical unit - Blade speed preselection, overload protection, soft start, torque control
- Recommended generator capacity - 3kVA for 100V-120V
Exact pipe cutting machines are designed and intended for the following industries
- House building
- Shipyards
- Industrial pipe installations, pulp, paper, chemical, boiler, pump stations etc.
- Worksites for fresh and waste water systems
- Municipal heating and cooling systems
- Municipal gas lines
- Municipal site works e.g. hospitals, office buildings, and large public buildings
- Maintenance and repair work of medium and large industry
- Power stations
- Installation companies that do pre-assemblies in workshops for sprinkler systems etc.
- Pipe repairs for old buildings
