High vacuum welding smoke extraction unit for up to four workstations
The high-vacuum suction and welding smoke extraction filter unit VacuFil 500 for high levels of smoke and dust is ideal for non-stop operation due to automatic filter cleaning. A side channel compressor to create negative pressure ensures robust performance for industrial users. In addition to up to four individual work station it can also be connected to a central pipe system.

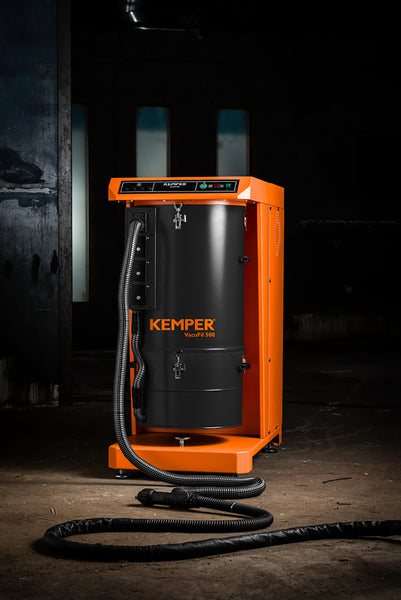

Kemper Welding Fume Extraction VacuFil 500.
The VacuFil 500 is the ultimate high-vacuum extraction unit for demanding welding environments. With its powerful side channel compressor and KemTex® ePTFE filter cartridges, it effectively captures harmful particles, providing unmatched health protection for employees. Ideal for torch and robot extraction, this versatile unit supports up to four workstations and can integrate with a central pipe system, making it perfect for non-stop industrial use.
Applications:
- High levels of smoke and particles
- Non-stop operation
- Torch extraction, robot extraction
- Suction nozzles or high vacuum exhaust arms
Benefits:
- High efficiency due to automatic filter cleaning
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Uninterrupted continuous operation due to automatically controlled filter cleaning
Properties:
- Automatic filter cleaning, pressure-controlled
- Dust collection container
- Filter monitoring
- Side channel blower
- KemTex® ePTFE filter cartridge
- 4 x 45mm and 1 x 100mm hose/duct connector
Filter:
- Filter stages - 1
- Filter method - Cleanable filter
- Filter cleaning method - Rotating nozzle
- Filter surface - 10 m²
- Type of filter - Filter cartridge
- Filter material - ePTFE membrane
- Filter efficiency - 99.9 %
- Dust classification - M
Technical Data:
- Extraction capacity - 500 m³/h
- Fan performance - 680 m³/h
- Dimensions (w x t x h) - 655 x 1197 x 1377 mm
- Weight - 270 kg
- Motor power - 5,5 kW
- Power supply - 3 x 400 V / 50 Hz
- Rated current - 12.9 A
- Noise level - 74 dB(A)
Additional Information:
- Fan type - Side channel blower
- Compressed air supply - 5 - 6 bar
- Capacity Dust collection container - 40 l
