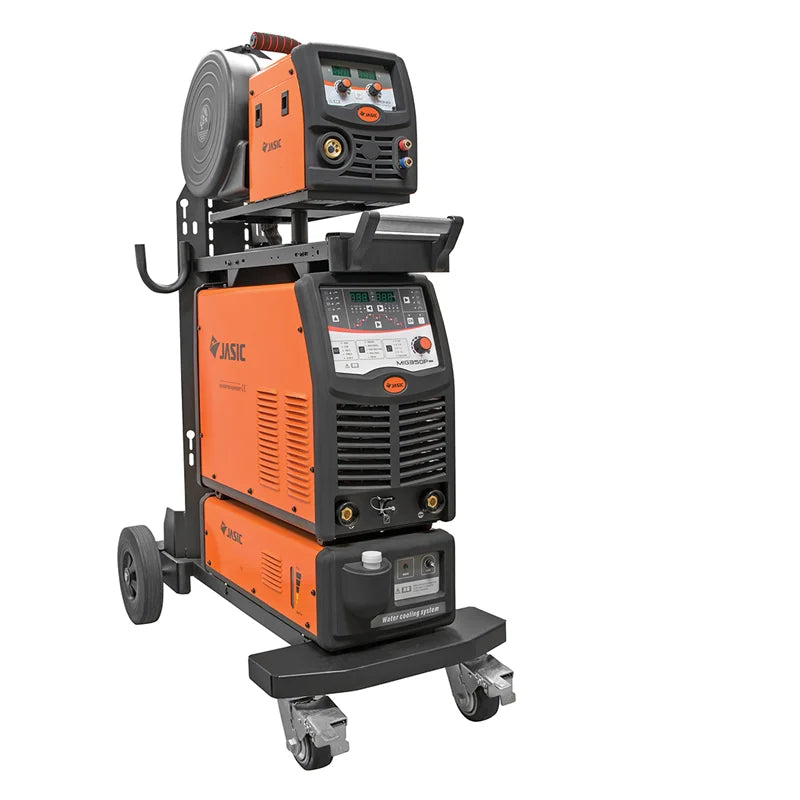

Jasic ZXJM-350P-10M Mig 350 Multi Process c/w 10m Interconnecting Cables 400V
Modular design double pulse IGBT
synergic inverter with DSP technology
The Jasic MIG 350 Pulse is equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This three-phase inverter welder offers synergic curves for common materials and wires.
The welding inverter also has self-diagnostic protection systems that provides extreme reliability.
Features
- IGBT multi process inverter welder
- Synergic MIG/MAG pulse, double pulse and DC MMA
- DSP all-digital technology for optimum welding performance

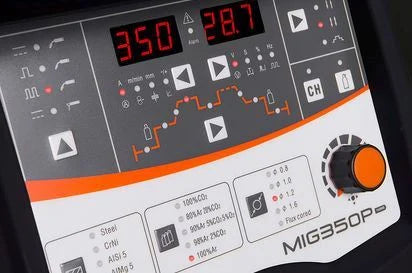

- Welding current, welding voltage, ignition current, crater filling current, ignition time, crater filling time and pulse frequency can be set via the easy to use computer interface
- Temperature/current/voltage protection system
- 4 Roll wire feed unit
- Easy parameter settings for the operator
- Synergic curves for common materials & wires
- Self-diagnostic system
- Encoder feedback control of wire feed system
- Spot/2T/4T modes
- Integrated water cooling system
- Inverter trolley takes full size gas cylinder
- AVR generator friendly
Technical Data
- Input voltage: 400V
- Current range: 10 -350
- Duty cycle @ 40%: 350A @ 60%
- Warranty: 5 years
- Weight: 117KG
- Wire feed: 4 roll unit
- Wire diameter range: Suitable for 0.8, 1.0, 1.2 and 1.6MM wire
- Power source type: Inverter
- Multi Process: Synergic, MIG/MAG Pulse, double pulse, DC MMA
Inverter Package Includes
- Pulse MIG inverter welder, 4 Roll Wire Feed Unit, Inverter trolley, Water-Cooler, 10m Interconnecting cables.
- MIG welding torch , Earth return lead,
- Gas hose and Regulator.
