Jasic ZXJT-500D PRO Tig 500P AC/DC c/w Trolley & Water Cooler 400V

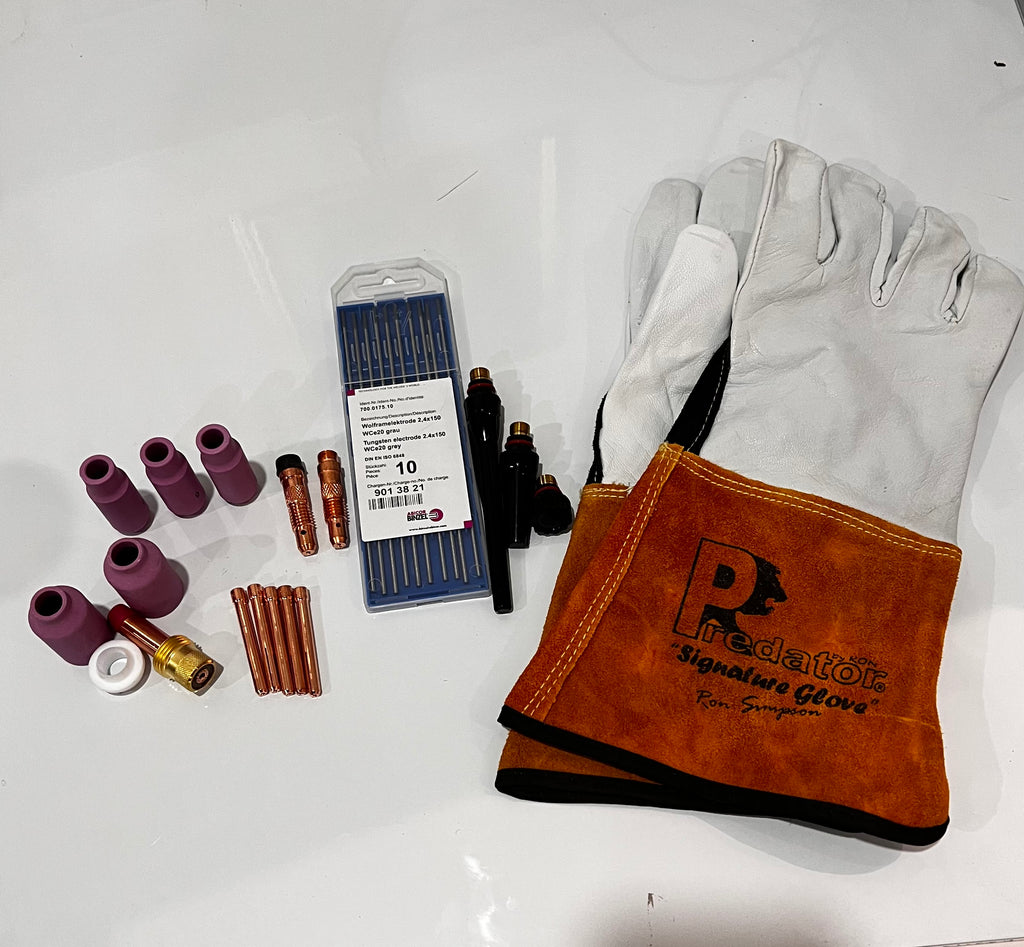

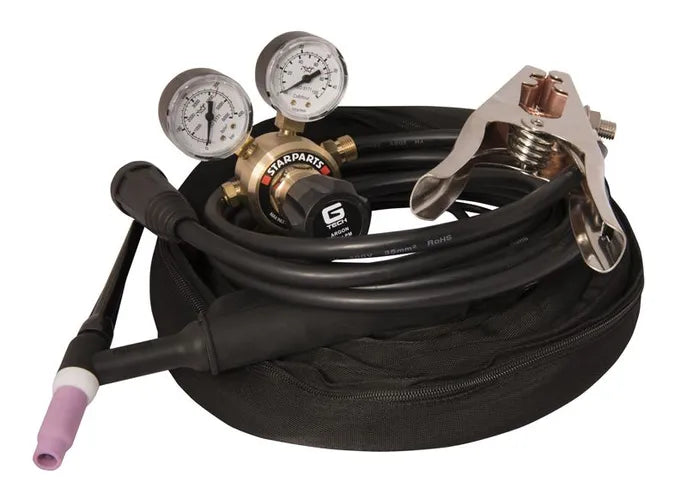

All TIG Packages incl. Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungsten's, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin

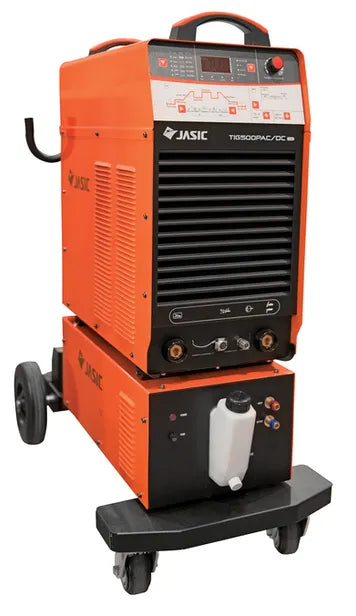

The JASIC TIG 500 Pulse AC/DC (Water cooled) is a technologically advanced three-phase inverter power source is suitable for medium to large production work.

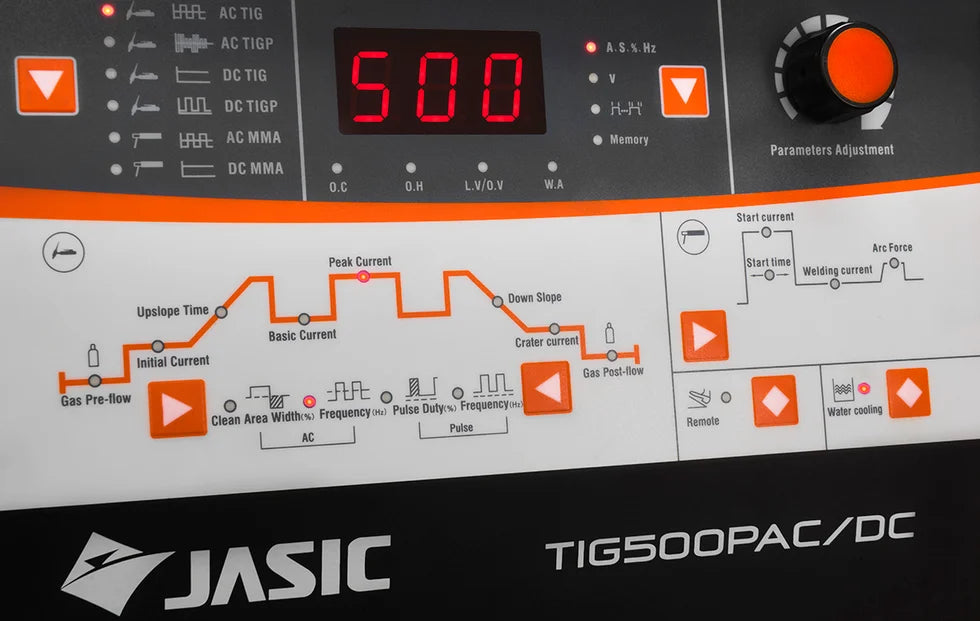

The innovative and user-friendly digital panel allows full control of the welding parameters.
The excellent technical characteristics of the 500 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
Features
- TIG Pulse AC/DC with digital control
- Program memory storage
- Easy to use, intuitive control panel
- Pre-post flow time, up/down slope
- Pulse adjustment
- Pulse frequency, pulse duty, arc force, clean width
- Remote control interface
- AC function for aluminium and aluminium alloys
- DC TIG function for carbon steel, stainless copper and non-ferrous metals
- Smooth arc and stable welding performance
- Water cooled
- Fan-on and Cooler-on demand (2023 models)
Specifications
- Input Power (3 Phase) AC 400V – 50/60 Hz
- Rated Input (A) 29.6
- Current Range MMA 400 A – TIG 500 A
- Duty Cycle @ 40ºC 60%
- No Load Voltage 68
- Power Factor 0.85
- Pulse Frequency DC – 200 AC – 70
- Protection/Class IP21S/F
- Generator Size 30 kVA
- Dimensions (mm) 650 x 340 x 783
- Weight (Kg) 63
Benefits of Pulse
- Greater Control of Heat – Pulsed TIG allows improved control to prevent burn through of your work piece. Setting up Pulse moderates the heat as you weld and ensures sufficient heat is present at the joint without laying too much filler metal into the joint without burning through the metal. This is particularly useful when welding thin sections of metal.
- Neat Welding – Using pulse in TIG welding is an easy way to create a smooth and clean weld. Moderating the amount of filler metal added to the weld assists with more even distribution, hence a better looking weld.
