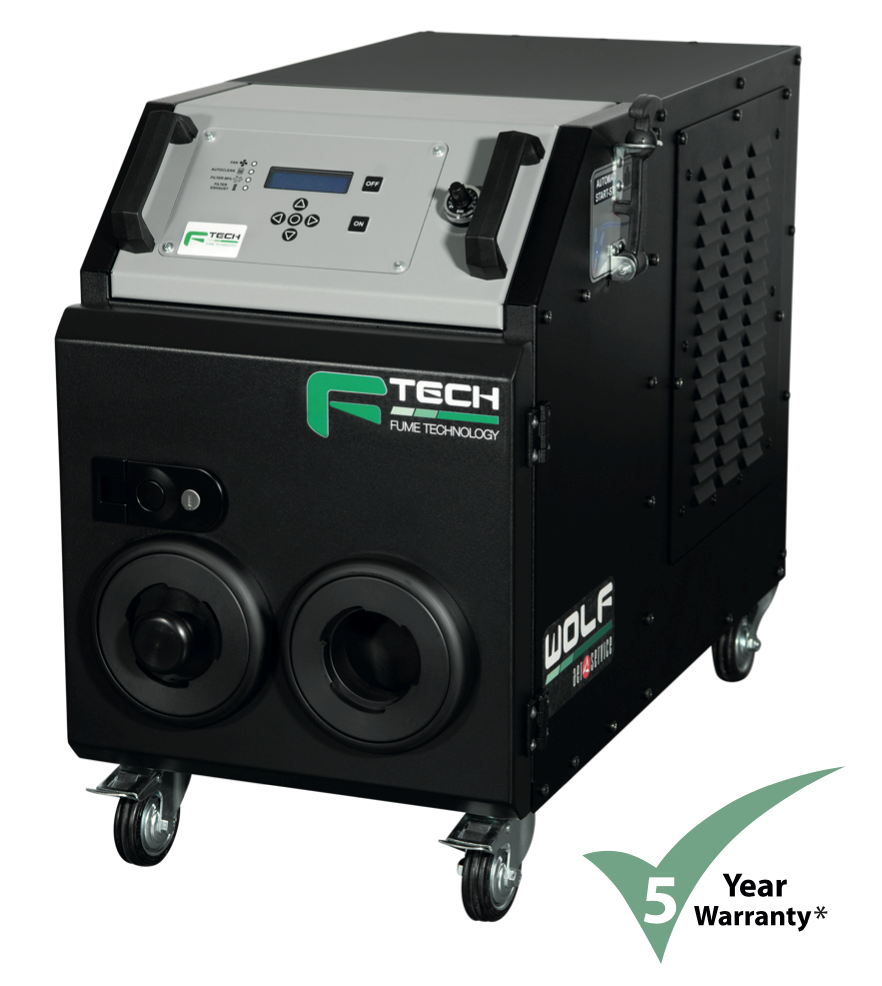

F-Tech FTWOLF110/230/400M0 Wolf On Torch Fume Unit Only (110V/230V/400V)

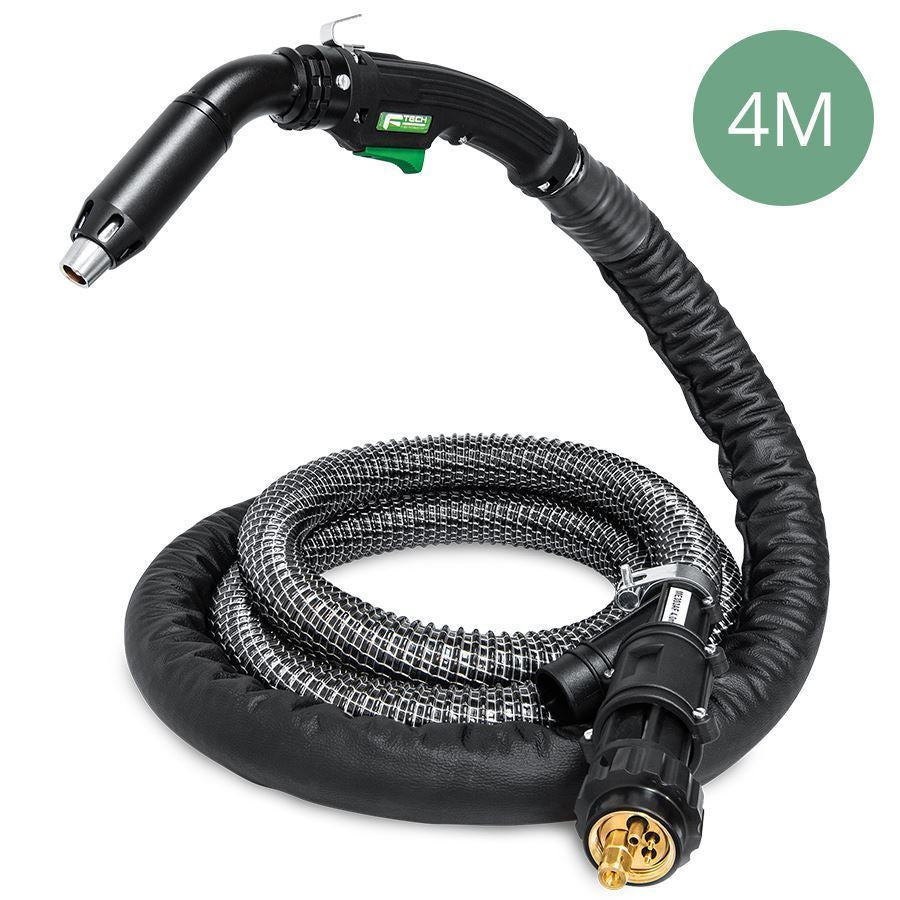

The new F-Tech Wolf extraction unit in combination with the F-Tech fume torch is a high quality on torch extraction system that can be used with 2 fume torches simultaneously.
The wolf extracts the fumes directly at the source, ensuring maximum safety not only for the welder but for everyone else in the workspace
Features
- Automatic Stop/Start Function fitted as standard
- Active carbon filter (1.5kg) for VOC's(stainless steel & Galvanised steels etc)
- Automatic cleaning function via compressed air
- Brushless motor on all voltages
- Digital control/informational panel including hour meter & clogged filter alarm
- can extract from 2 x 15mtr hoses simultaneously
- 3 filtration stages (cartridge BIA M class + active carbon + spark trap
- 1/4" female universal fitting
- dust collection tray
- each unit is supplied with 2 x machine side male hose connectors & 1 x blanking plug
- Available in 110V, 230V & 400V
- 5 Year Warranty
Technical Data:
- Filter efficiency - >99%
- Filtering Surface - 4M2
- Motor Power - 2.2Kw
- Extraction Capacity - 200M3/H
- Noise Level - 66dB(A)
- Air Consumption - 10L/Min
- Air Pressure - 8 Bar
- Absorbed Current - 10A(110V) 7.5A(230V) 4.55A(400V)
- Extractor - Side Channel Blower
- Motor Control - 230V & 400V (inverter)
- Dimensions - 370 x 720 x 550MM
- Weight - 80KG
