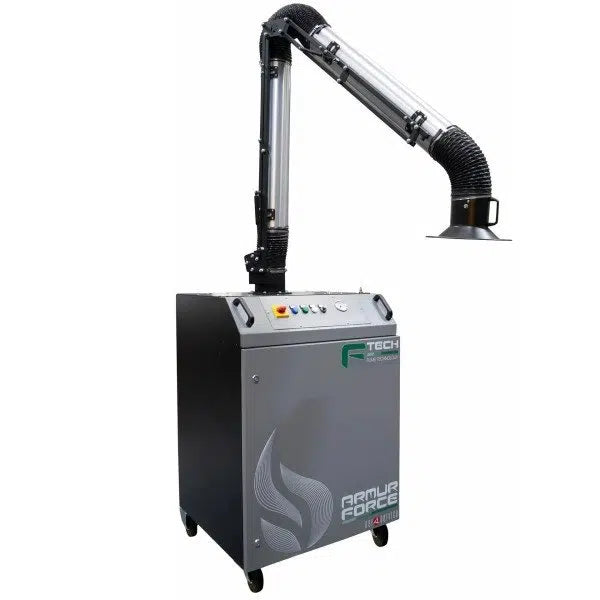

F-Tech ZXFTARMURFORCE230 Armur Force Mobile Fume Unit 230V c/w Hour Meter & 3m Armotech Arm
The F-Tech Armur Force Mobile Fume Unit is an ultra high-performance extraction system designed to extract and filter welding fumes, thermal cutting fumes, sand blasting dusts, manual plasma cutting, and grinding dusts. It is a portable unit with 4 sturdy swivel castors, ensuring easy maneuverability within the workplace.
The unit is equipped with a 3-meter positional Armotech extraction arm, providing efficient extraction. The Armur Force features 2 cartridge filters made of anti-static polyester, ensuring high filter efficiency. It also offers automatic cleaning with counter current compressed air. A carbon filter is available upon request. The unit is fully serviceable, and accessories and spare parts are readily available.
Features
- An efficient and versatile 1.5mtr down and rear draught bench
- For efficient use in the extraction and filtration of welding
or grinding fume particle recovery, deburring, polishing of components and items with limited weights and measures - Additionally it can be used for small manual thermal cutting operations
- Rugged standardised suction surface which is modifiable depending on work to be carried out
- Sealed dust collection drawers
- Internal mechanical pre-filtration section composed
of a cylindrical spark-trap steel mesh filter - Accessories available
-
Additional PPE recommended
Technical Data
| Filter efficiency | 99.9% |
| Motor power | 1.1 kW |
| Rated input voltage | 230V |
| Flow rate pressure | 2500 m³/h |
| Noise levels | 67 dB(A) |
| Dimensions | 600 x 1200 x 800 mm |
| Weight | 175 kg |
