F-Tech ZXFTARMURGRD110/230/400ATC3 Armur Guard Mobile Fume Extraction Unit c/w 3m Armotech Arm

F-Tech ZXFTARMURGRD110/230/400ATC3 Armur Guard Mobile Fume Extraction Unit c/w 3m Armotech Arm

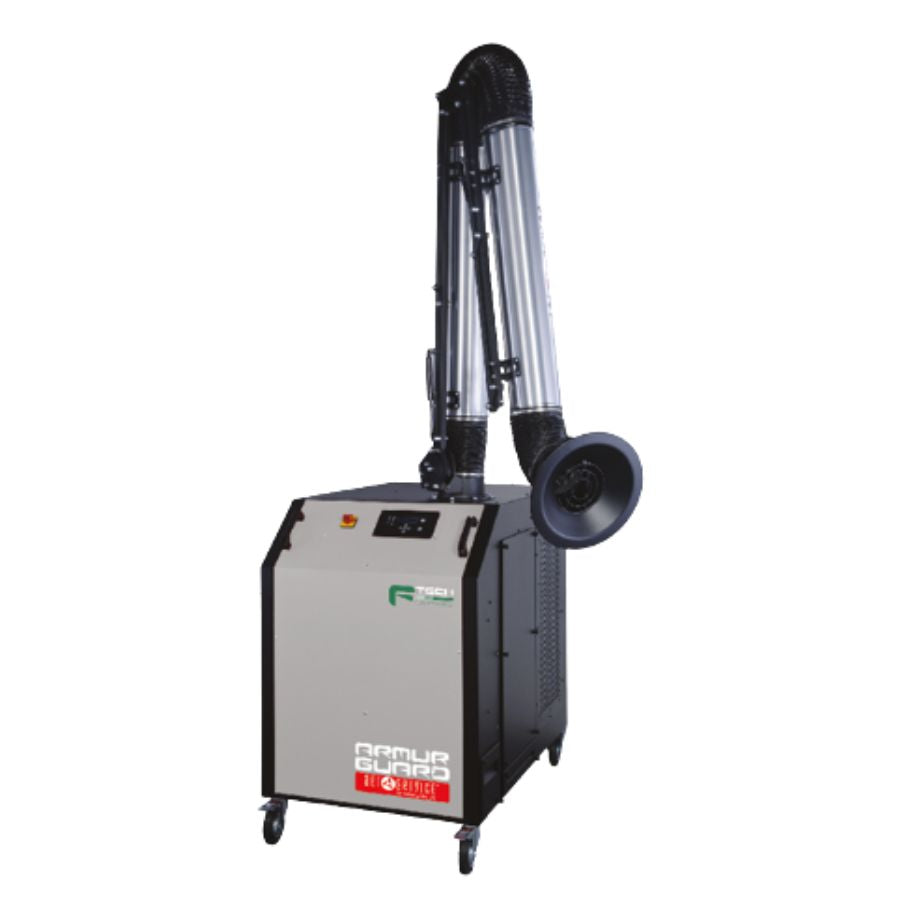

The F-Tech Armur Guard Welding Fume Extraction Unit is a portable, high performance solution for capturing welding fumes and dust. Mounted on swivel casters allowing the user to easily manoeuvre the unit closer to the welding area. This local exhaust ventilation (LEV) is perfect for use in garages, workshops and welding bays.

It features a positional suction arm so that the extraction hood is directed over the welding area. The LEV system extracts welding fume at source before reaching the operators breathing zone. Equipped with PTFE cartridge filters, a 10kg active carbon filter for VOCs, and an automatic compressed air cleaning system, it ensures efficient, low-maintenance operation.

Smoke and dust enter from above and the heaviest dust falls into the first collection drawer. The finest dust arrives on the external surface of the cartridge filters, from where they detach and fall into the second collection drawer during the automatic counter current cleaning cycle.

Includes: Armur Guard Extraction Unit, 3m Armotech Arms and 3m Power Supply Cable with Appropriate Plug 110v Yellow, 230v Blue, 400v Red.

Features

• Portable 4-wheel unit on swivel castors – Easily move the extractor around your workshop for flexible positioning.
• High-performance positional suction arm – Captures welding fumes and dust directly at the source, improving air quality.
• Digital control panel with multi-language support – Includes hour-meter, alarm log, clogged filter alert, and compressed air check for convenient monitoring.
• Automatic Stop/Start function – Saves energy and extends filter life by running the unit only when needed.
• Active carbon filter (10kg) for VOCs – Effectively captures gases from stainless steel, galvanised steel, and other metals.
• PTFE cartridge filters – High-efficiency filtration for fine dust and fumes.
• Automatic filter cleaning system – Uses compressed air to clean filters, maintaining peak performance with minimal maintenance.
• Automatic regulation of compressed air pressure – Ensures consistent filter cleaning and optimal airflow.
• Pre-chamber for heavy dust and spark separation – Protects the main filters and increases safety.
• Flow equaliser on the air discharge grid – Ensures uniform airflow and efficient extraction.
• Supports max arm length of 4m (Armotech) – Allows flexible positioning for larger welding areas.
• Readily available accessories and spare parts – Minimises downtime and ensures long-term usability.
• Fully serviceable – Designed for easy maintenance to extend the life of your unit.
• Suitable for dry fumes – Ideal for welding, grinding, and plasma cutting. Not suitable for oily fumes or hazardous areas.
• Suitable for MIG, MMA, TIG Welding, Plasma Cutting, and Manual Grinding – Captures fumes and dust from multiple processes, offering versatile, all in one workshop protection.
• 5 year warranty (12 month on arms)

When considering LEV systems for the workplace, its worth looking at the governments health and safety executive guidance to ensure any equipment is fit for purpose.
