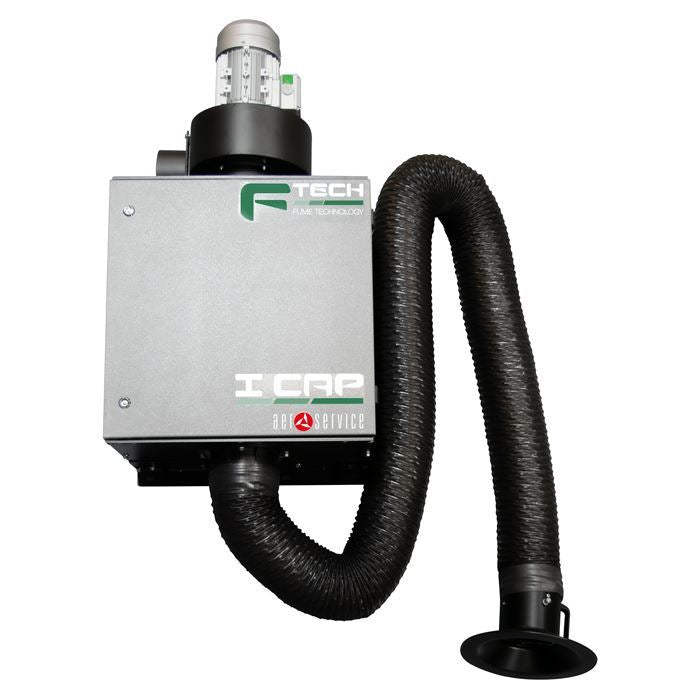

F-Tech ZXFTICAP230/AFX3 Wall Mounted Extractor ICAP 2.0 230V c/w 3m Armoflex Arm
The F-Tech ICAP Wall Mounted Extractor is a professional-grade fume extraction solution designed for welding, soldering, and industrial manufacturing environments. This robust wall-mounted system effectively captures and filters hazardous fumes, dust, and particulates at the source, protecting operators and maintaining clean air quality in the workplace.
Equipped with a 3-metre Armoflex extraction arm, the ICAP provides exceptional flexibility and positioning capabilities, allowing operators to position the extraction point precisely where needed. The flexible arm maintains its position once set, ensuring consistent capture efficiency throughout the working day without the need for constant readjustment.
The wall-mounted configuration saves valuable floor space while providing stable, permanent extraction capability. The system is engineered for continuous duty operation in demanding industrial settings, featuring durable construction and reliable performance. Suitable for metalworking shops, fabrication facilities, maintenance departments, and educational workshops, the ICAP integrates seamlessly into existing workplace layouts.
Installation is straightforward with the wall-mounting bracket system, and the unit is designed for easy maintenance to ensure long-term operational efficiency. This extractor represents a practical investment in workplace safety and air quality management.
Features
- 230 Volt (400 Volt also available)
- High performance centrifugal extraction fan encased in a rugged soundproof compartment
- Fixing holes on rear frame to allow wall mounting
- 3mtr arm (3mtr Armoflex or Armotech arms available)
- 2500m3/hr max flow
- 1480m3/hr max suction
- Powerful 3 stage effective E12 filtration up to 99.5%
- Filter Stages:
- 1 – Metallic pre-filter 25%
- 2 – Corrugated polyester fibre pre-filter
- 3 – Absolute filter E12HEPA
- Durable steel with powder coated finish
- Meets latest HSE regulations
Optional:
- De-odorising carbon filter available
- Twin arm adaptor available to allow use of 2 arms
Technical Specs |
|
| Filter efficiency | 99.5% |
| Motor power | 1.5 Kw |
| Rated input voltage | 230V (400V model also available) 50Hz |
| Flow rate pressure | 2500m3/h (at hood) |
| Noise levels | 73dB(A) |
| Dimensions | 508 x 747 x 759 mm |
| Weight | 100 Kg |
