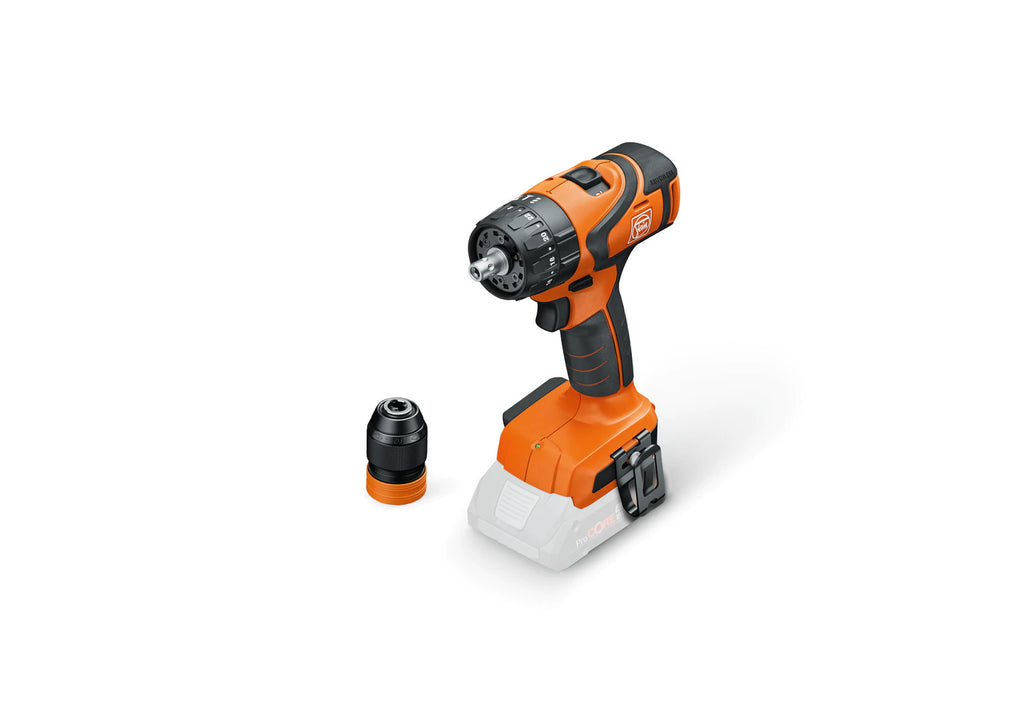

Fein 71040761000 Cordless Impact Drill/Driver ASB 18 Q AS
2-speed cordless combi drill
With brushless motor and QuickIN interface. Perfectly suited to drilling up to 13 mm in metal, stone and masonry.
- The Fein ASB 18 Q Combi Drill features a 2-speed solid metal gearbox and switchable striking mechanism for optimum drilling in metal, stone and masonry.
- Enjoy the greatest versatility with the FEIN QuickIN system. Work at speed in metal and timber with just one tool. QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
- Brushless FEIN PowerDrive motor with 30% higher efficiency and long service life.
- Mechanical torque setting.
- Compact design.
- The AMPShare interface makes almost 50% more screw connections (approx. 1300 screw connections, diameter of 5 x 40 mm in timber) possible per battery charge with the same level of FEIN quality (ProCORE 4 Ah).
- Bit and belt holder on the side for ergonomic and flexible handling.
- Compatible with all 18 V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless devices. Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries. Maximum work progress with AMPShare 18V ProCORE batteries:
- COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries.
- “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge. Ideally equipped for every form of use.
- Mobile working with the L-BOXX system.

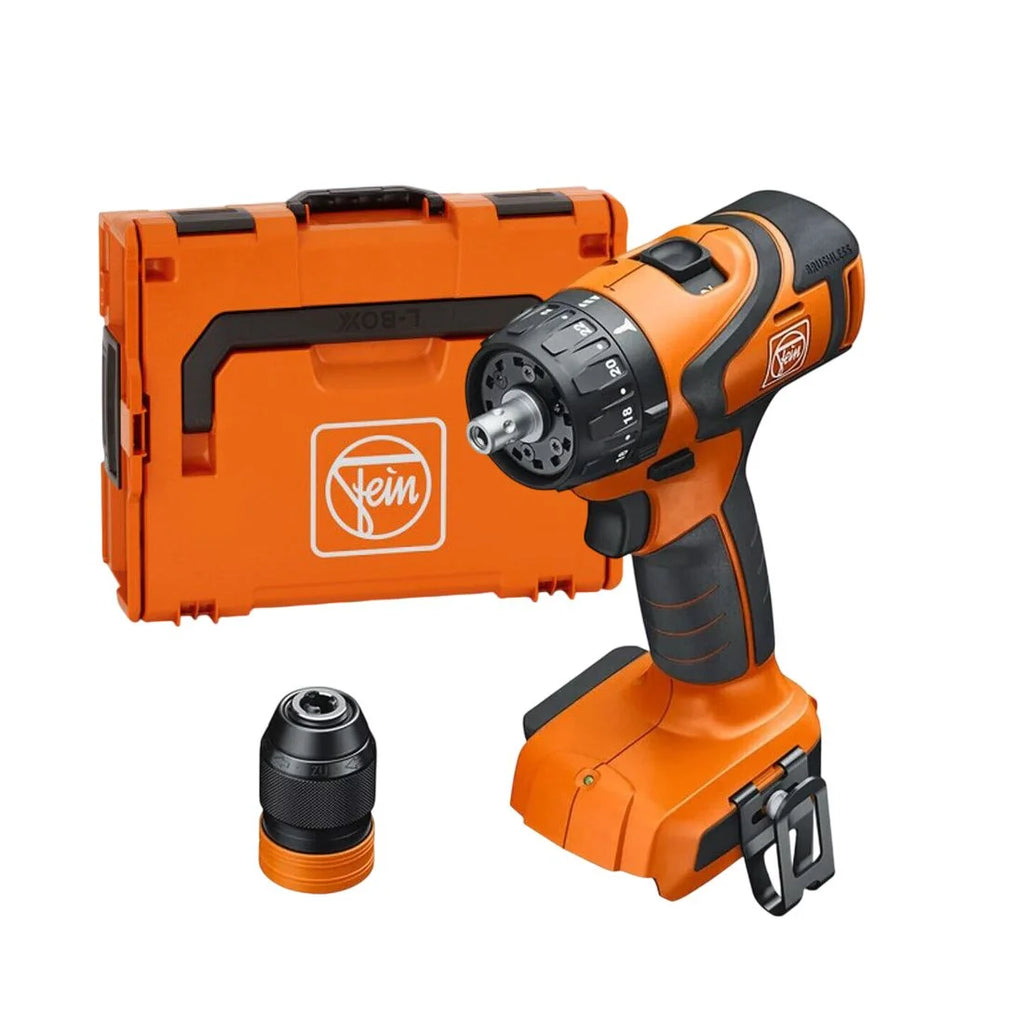

In The Box-
- 1x ASB 18 Q AS Cordless 2-Speed Combi Drill Body Only
- 1x QuickIN Drill Chuck
- 1x Belt Clip
- 1x Magnetic Bit Storage
- 1x L-Boxx 136 Carry Case
Technical Data
| Manufacturer | Fein |
| Actuation/Throttle Type/Switch Type | Trigger |
| Battery Type | Li-ion / ProCORE Li-ion |
| Motor | Brushless |
| Maximum Free Speed | 2000 RPM |
| Maximum Torque | 60 Nm |
| Sound Pressure | 92.9 dB |
| Vibration Level | 1.4 m/s2 |
| Voltage | 18 V |
| Weight | 1.5 kg |
| Drill Chuck Clamping Width | 1.5-13mm |
| Fastening | 8x300mm |
| Gearbox | 2-Speed |
| Tapping | M10 |
| Torque Levels | 22+1 |
| Capacity In Stone (Diameter) | 13 mm |
| Capacity In Wood (Diameter) | 50 mm |
| Capacity In Steel (Diameter) | 13 mm |
| Packaged Weight | 1.5 kg |
Vibration and Sound Emission Values
Sound pressure level LpA-92,9 dB
Uncertainty of measured value KpA-3 dB
Sound power level LWA-100,9 dB
Uncertainty of measured value KWA-3 dB
Sound peak value LpCpeak-110,0 dB
Uncertainty of measured value KpCpeak-3 dB
Vibration value 1 αhv 3-way-ah,D 1,4 m/s²
Uncertainty of measured value Kα-1,5 m/s²
Vibration value 2 αhv 3-way-ah 0,6 m/s²
Uncertainty of measured value Kα-1,5 m/s²
