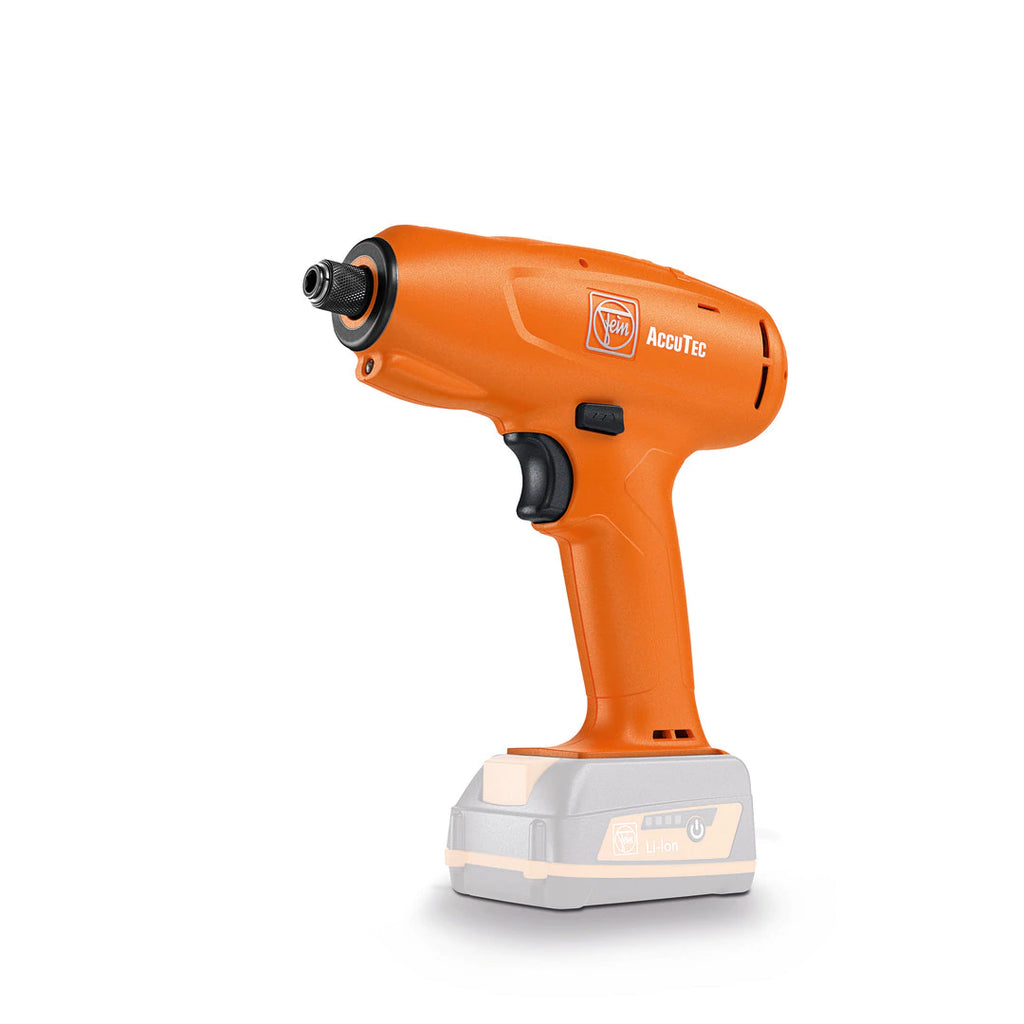

Fein 71127760000 ASM 18-3 PC Precision Cordless Screwdriver/Mid-Mounted Handle, up to 3 Nm
Parameterisable cordless screwdriver with mechanical shut-off clutch for industrial use, Supplied without battery, charger or torque wrench.
- Process-capable according to ISO 5393, VDI/VDE 2647, achieves CMK value > 1.67 at ± 10% (refers to 6 Sigma).
- For soft and hard screwed connections.
- Programmable parameters (up to 5 steps): speed, direction of rotation, angle of rotation, torque threshold, time.
- Error criteria settings can prevent manipulation of the screwdriving process.
- Infinitely variable speed adjustment.
- Parameters can be set for forwards or reverse running.
- Brushless motor with 30% higher efficiency and long service life.
- High speed stability for constant work progress.
- Can be fully loaded up to maximum output torque during continuous operation.
- Extra short design for use in tight spaces.
- Fatigue-free working thanks to narrow grip dimensions and good balance.
- Optimised air guide: air isn't blown onto the user’s hand or into his or her face.
- Extra large and bright signal unit (OK / not OK).
- Optimum illumination of the screwdriving site.
- Wear-free acceleration switch.
- Tools can be colour-coded using coding rings.
- Scope for attaching suspension bracket (balancer).
- Integrated fastening counter means that a maintenance interval can be set.
- Adjustable battery charge state display on tool.
- MultiVolt interface. Cordless tool can be operated with all FEIN Li-ion batteries (12-18 V).
Technical Data
Battery voltage - 18 V
Battery interface - MultiVolt
Torque range - 0.5 - 3 Nm
Speed, no load - 110 - 1,200 rpm
Tool Holder - 1/4 in hexagon socket
Weight without storage battery - 0.80 kg
Vibration and sound emission
Sound pressure level LpA - 73,5 dB
Uncertainty of measured value KpA - 3 dB
Sound power level LWA - 81,5 dB
Uncertainty of measured value KWA - 3 dB
Sound peak value LpCpeak - 84,2 dB
