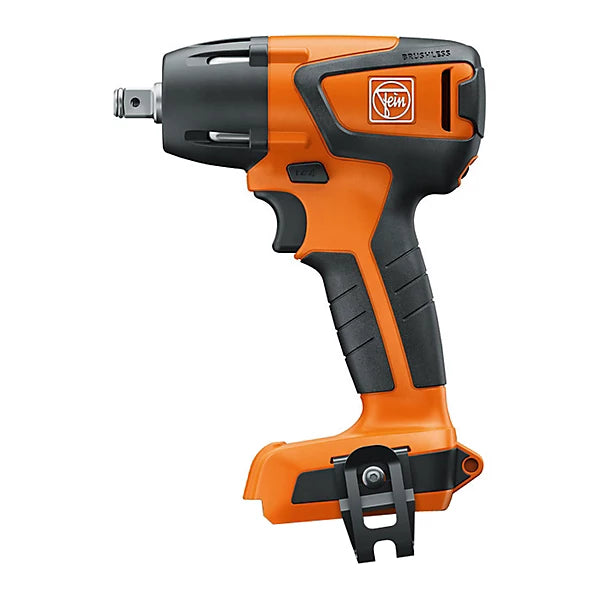

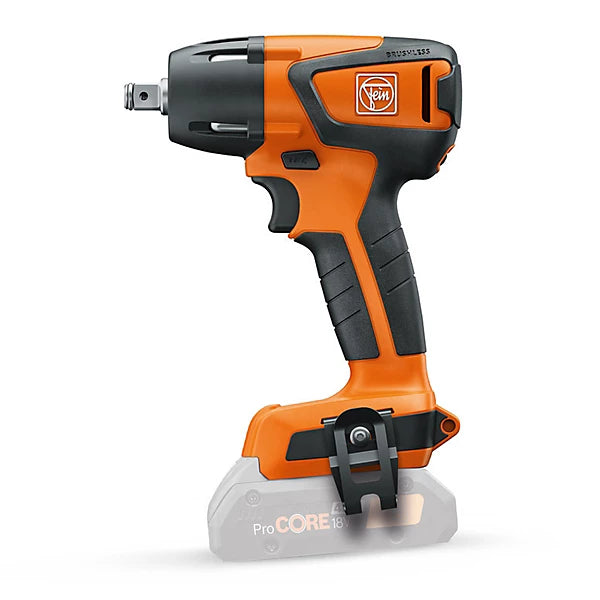

Fein 71151061000 ASCD 18-300 W2 AS Cordless Impact Wrench/Driver
Up to max. 290 Nm with brushless motor and 6-stage torque setting. For metric screwdriving applications up to M18. The Fein ASCD 18-300 W2 AS is a professional-grade 18V cordless impact wrench designed for high-precision screwdriving and tapping applications. Equipped with a brushless FEIN PowerDrive motor, it delivers up to 290 Nm of torque with a 6-stage electronic torque setting, ensuring optimal control and preventing damage to screw heads. Its robust construction and compatibility with the AMPShare 18V battery system make it ideal for demanding tasks in metalworking and construction.
- For extreme precision work: The ASCD 18-300 W2 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.

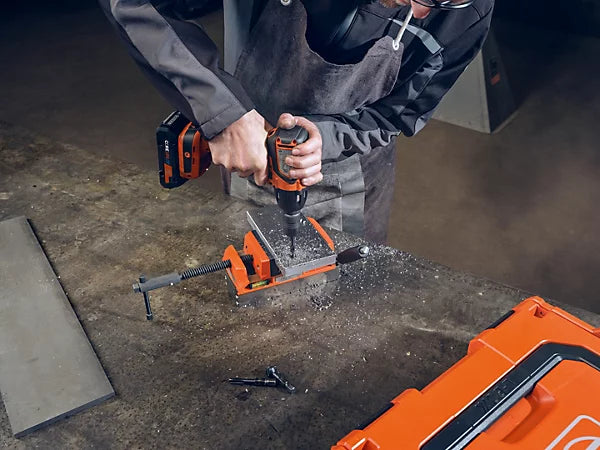

- VARIO 1/2" adapter, available as an extra and developed by FEIN, suitable for all VARIO accessories for simple and mechanical drilling, countersinking, tapping, recutting and cleaning of through holes up to a maximum of M18. Turns the impact wrench/driver into a tapper, thereby adding a whole new tool to the range of applications.
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- 1/2" square for holding sockets.
- Metric screws up to M18 (8.8).
- 10% more torque in reverse running to loosen screws which are extremely tight.
- Robust solid metal impact gear.
- Contact guard on gearbox head.
- Up to 600 screw connections (M18) with one battery charge (ProCORE 4 Ah).
- Compact design.
- Bit and belt holder on the side for ergonomic and flexible handling.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
In the box -
- 1 belt clip
- 1 magnetic bit storage
- 1 tool case (L-Boxx 136)
Technical Data
Battery voltage - 18 V
Battery compatibility - Li-ion / ProCORE Li-ion
Battery interface - 18 V AMPShare
Motor - brushless
Speed, no load - 0 - 1700 rpm
Impacts - 0 - 3400 rpm
Max. torque - 290 Nm
Torque levels - 6
Tool Holder - 1/2" Outer square
Max. metric screw - M18 (8.8)
Wood screw Ø - 8 x 300 mm
Weight without storage battery - 1.20 kg
Vibration and Sound Emission Values
Sound pressure level LpA - 99,2 dB
Uncertainty of measured value KpA - 3 dB
Sound power level LWA - 107,2 dB
Uncertainty of measured value KWA - 3 dB
Sound peak value LpCpeak - 121,5 dB
Uncertainty of measured value KpCpeak - 3 dB
Vibration value 1 αhv 3-way - αh 15,0 m/s²
