| Technical Data | |
|---|---|
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / ProCORE Li-ion |
| Battery interface | 18 V AMPShare |
| Motor | brushless |
| Speed, no load | 0 – 1,700 rpm |
| Impacts | 0 – 3,400 rpm |
| Max. torque | 290 Nm |
| Torque levels | 6 |
| Tool Holder | 1/2″ Outer square |
| Max. metric screw | M18 (8.8) |
| Wood screw Ø | 8 x 300 mm |
| Weight without battery | 1.20 kg |
Fein 71151065000 Cordless Impact Wrench ASCD 18-300 W2 AS Impact Tapping Set
Cordless impact wrench/driver with 1/2" square head tool mounting. The user set includes 1/2" VARIO adapter, 5-part FEIN VARIO tapper set for through holes and circlip. Not including battery or charger.
- For extreme precision work: The ASCD 18-300 W2 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.
- Impact wrench/driver-compatible VARIO adapter turns the impact wrench/driver into a tapper, thereby adding a whole new tool to the range of applications.

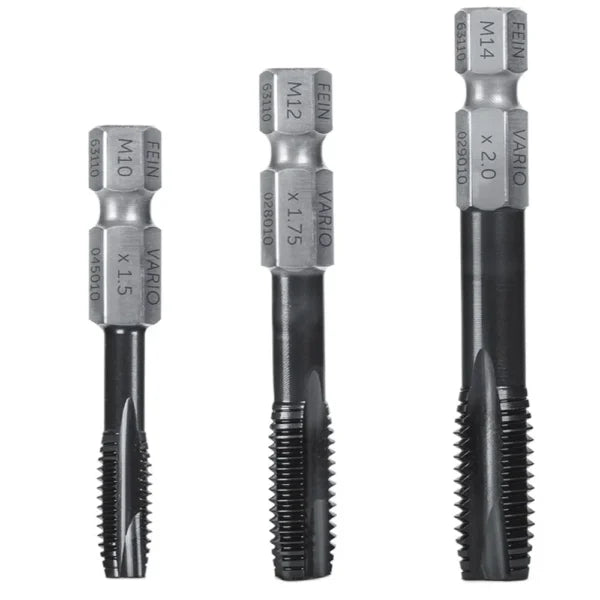

- The 5-part FEIN VARIO tapper set covers sizes M8, M10, M12, M14, M16.
- VARIO tapper for through holes. Long service life, thanks to high material strength (64 HRC), special cutting geometries suited to impact wrench/drivers and a TiAlN (titanium-aluminium-nitride) coating. The bits experience low levels of wear and friction as well as being heat-resistant to 800 °C. Thanks to the high speeds and number of blows, they can therefore be used in steel up to 900 N/mm².
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- 1/2" square for holding sockets.
- Metric screws up to M18 (8.8).
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V storage batteries: COOLPACK 1.0 technology ensures a longer storage battery life compared with batteries without COOLPACK technology and therefore makes longer operating periods possible. ECP protects the storage battery against overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.

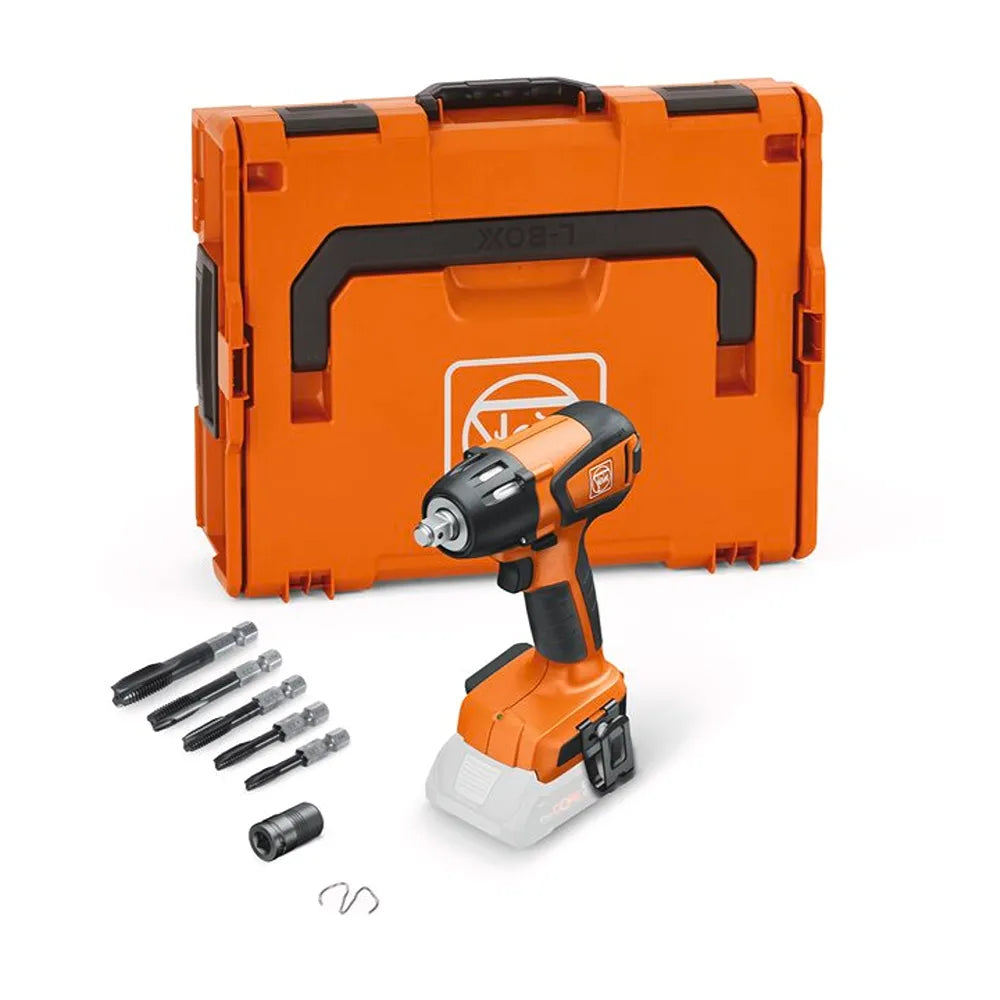

In the box -
- 1 x ASCD 18-300 W2 AS (including belt clip, bit holder)

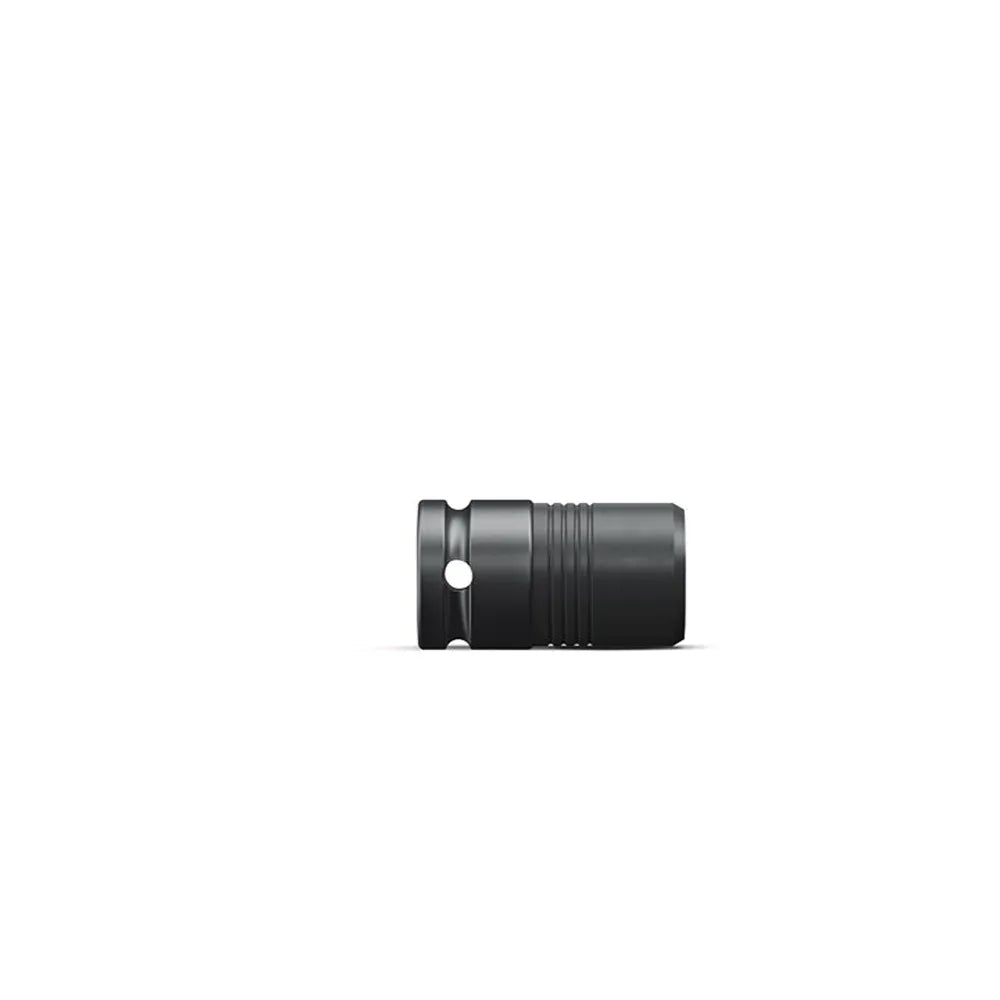

- 1 X 1/2" VARIO adapter
- 1 x 5-part VARIO tapper set (M8, M10, M12, M14, M16)
- 1 x locking spring
| Vibration and sound emission | |
|---|---|
| Sound pressure level LpA | 99,2 dB |
| Uncertainty KpA | 3 dB |
| Sound power level LWA | 107,2 dB |
| Uncertainty KWA | 3 dB |
| Sound peak value LpCpeak | 121,5 dB |
| Uncertainty KpCpeak | 3 dB |
| Vibration value 1 αhv 3-way | αh 15,0 m/s² |
| Uncertainty Kα | 1,5 m/s² |
