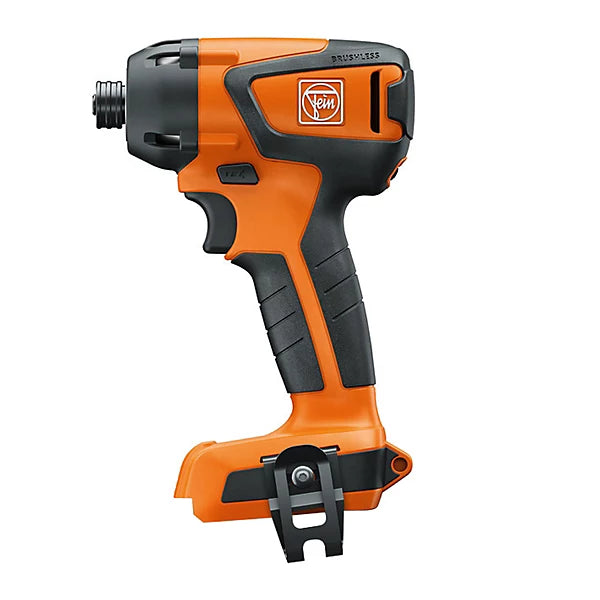

Fein 71151161000 ASCD 18-200 W4 AS cordless /impact Wench
Up to max. 210 Nm with brushless motor and 6-stage torque setting. For universal screwdriving applications including self-drilling screwdriving.
- For extreme precision work: The ASCD 18-200 W4 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.
- Brushless motor with 30% higher efficiency and long service life.
- 1/4” hexagon socket tool mounting for holding bits and socket wrench inserts.
- 10% more torque in reverse running to loosen screws which are extremely tight.
- Robust solid metal impact gear.
- Contact guard on gearbox head.
- Compact design.
- 700 screw connections (M18) with one battery charge (ProCORE 4 Ah)
- Bit and belt holder on the side for ergonomic and flexible handling.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
Technical Data
Battery voltage - 18 V
Battery compatibility - Li-ion / ProCORE Li-ion
Battery interface - 18 V AMPShare
Motor - brushless
Speed, no load - 0 - 1 500 rpm
Impacts - 0 - 3 000 rpm
Max. torque - 210 Nm
Torque levels - 6
Tool Holder - 1/4 in hexagon socket
Wood screw Ø - 8 x 200 mm
Weight without storage battery - 1.20 kg
Vibration and Sound Emission Values
Sound pressure level LpA - 96,1 dB
Uncertainty of measured value KpA - 3 dB
Sound power level LWA - 104,1 dB
Uncertainty of measured value KWA - 3 dB
Sound peak value LpCpeak - 118,1 dB
Uncertainty of measured value KpCpeak - 3 dB
Vibration value 1 αhv 3-way - αh 13,4 m/s²
Uncertainty of measured value Kα - 1,5 m/s²
