| Technical data | |
|---|---|
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / ProCORE Li-ion |
| Battery interface | 18 V AMPShare |
| Motor | brushless |
| Speed, no load | 0 – 1,800 rpm |
| Impacts | 0 – 2,200 rpm |
| Max. torque | 1,050 Nm |
| Torque levels | 6 |
| Tool Holder | 3/4 in Outer square |
| Max. metric screw | M27 (8.8) |
| Wood screw Ø | 12 x 600 mm |
| Weight without battery | 3.10 kg |

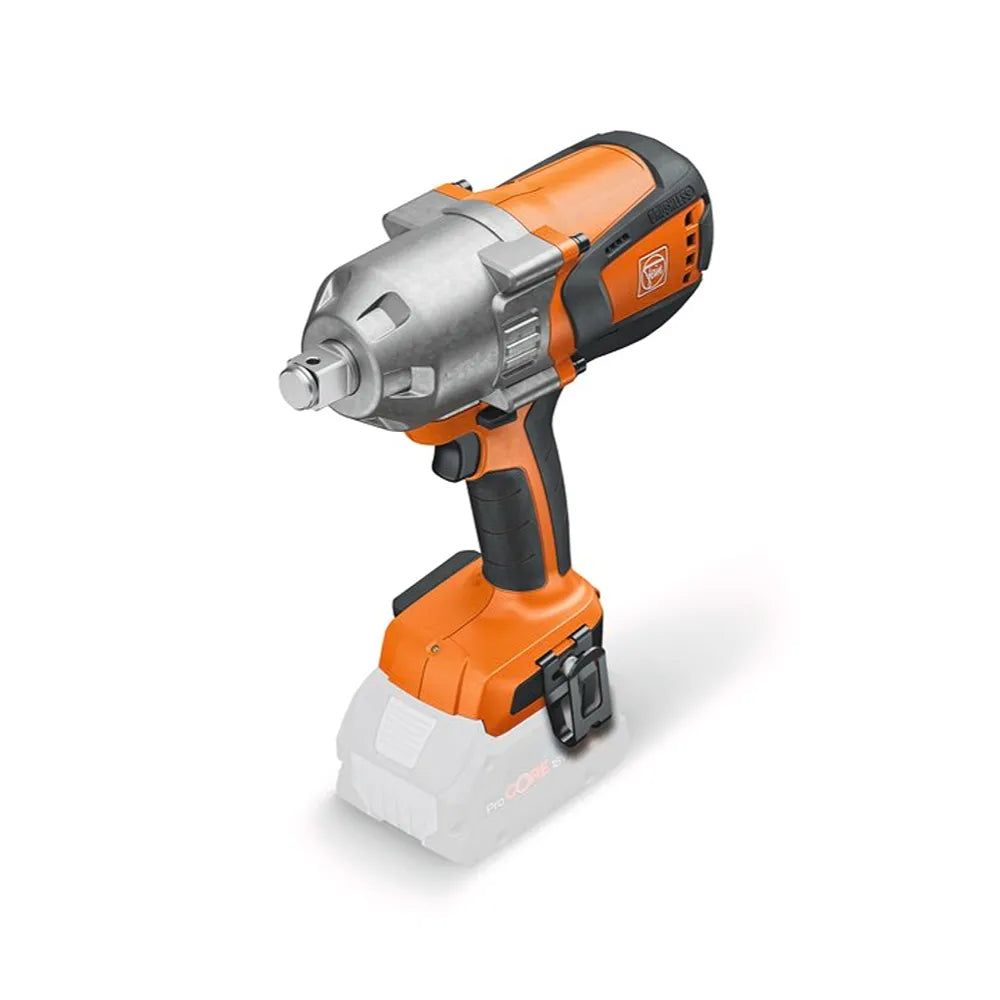

Fein 71151261000 Cordless Impact Wrench/Driver ASCD 18-1000 W34 AS
Up to max. 1050 Nm with brushless motor and 6-stage torque setting. For metric screwdriving applications up to M27.
- For extreme precision work: The ASCD 18-1000 W34 AS with electronic torque setting (6 levels) prevents screw heads from shearing off.
- VARIO 3/4" adapter, available as an extra and developed by FEIN. Suitable for all VARIO accessories for simple and mechanical drilling, countersinking, tapping, recutting and cleaning through threads up to a maximum of M30. Turns the impact wrench/driver into a tapper, thereby adding a whole new tool to the range of applications.
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- 3/4" square head for holding sockets.
- High torque of up to 1050 Nm for tightening and loosening screws of up to M27.
- Maximum release torque of 1500 Nm in reverse running.
- Robust solid metal impact gear.
- Up to 600 screw connections (M27) with one battery charge (ProCORE 8.0 Ah).
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Ideally equipped for every form of use. Mobile working with the L-BOXX system.
| Vibration & Sound Emission | |
|---|---|
| Sound pressure level LpA | 96,7 dB |
| Uncertainty KpA | 3 dB |
| Sound power level LWA | 104,7 dB |
| Uncertainty KWA | 3 dB |
| Sound peak value LpCpeak | 121,3 dB |
| Uncertainty KpCpeak | 3 dB |
| Vibration value (αhv 3-way) | ah 15,7 m/s² |
| Uncertainty Kα | 1,5 m/s² |
In the box -
- 1 tool case (L-BOXX 136)
