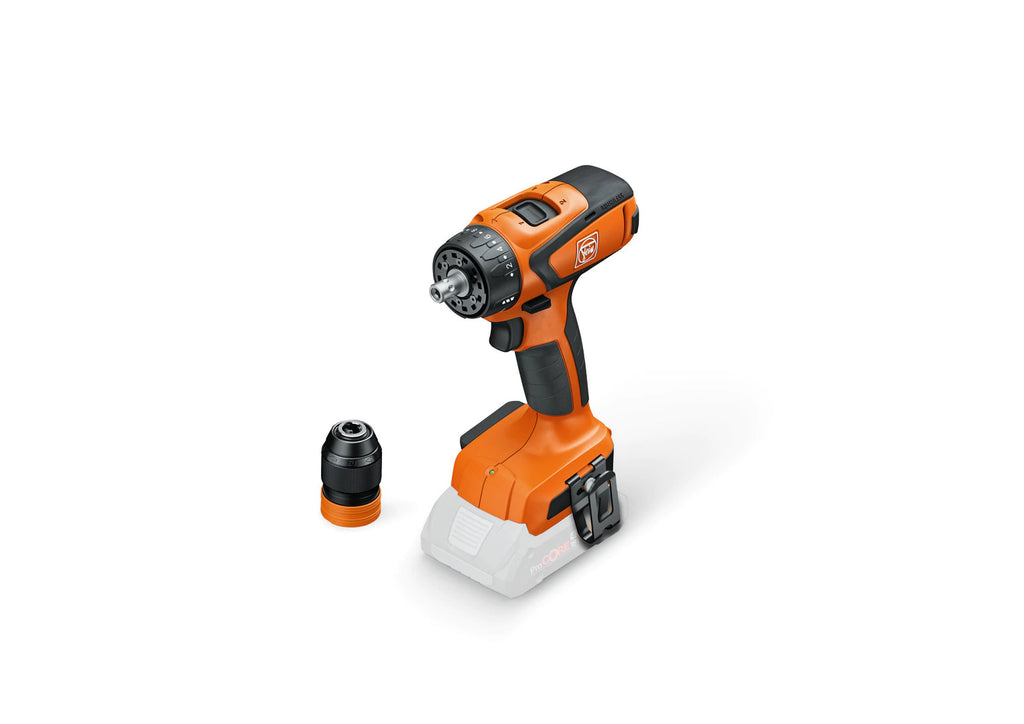

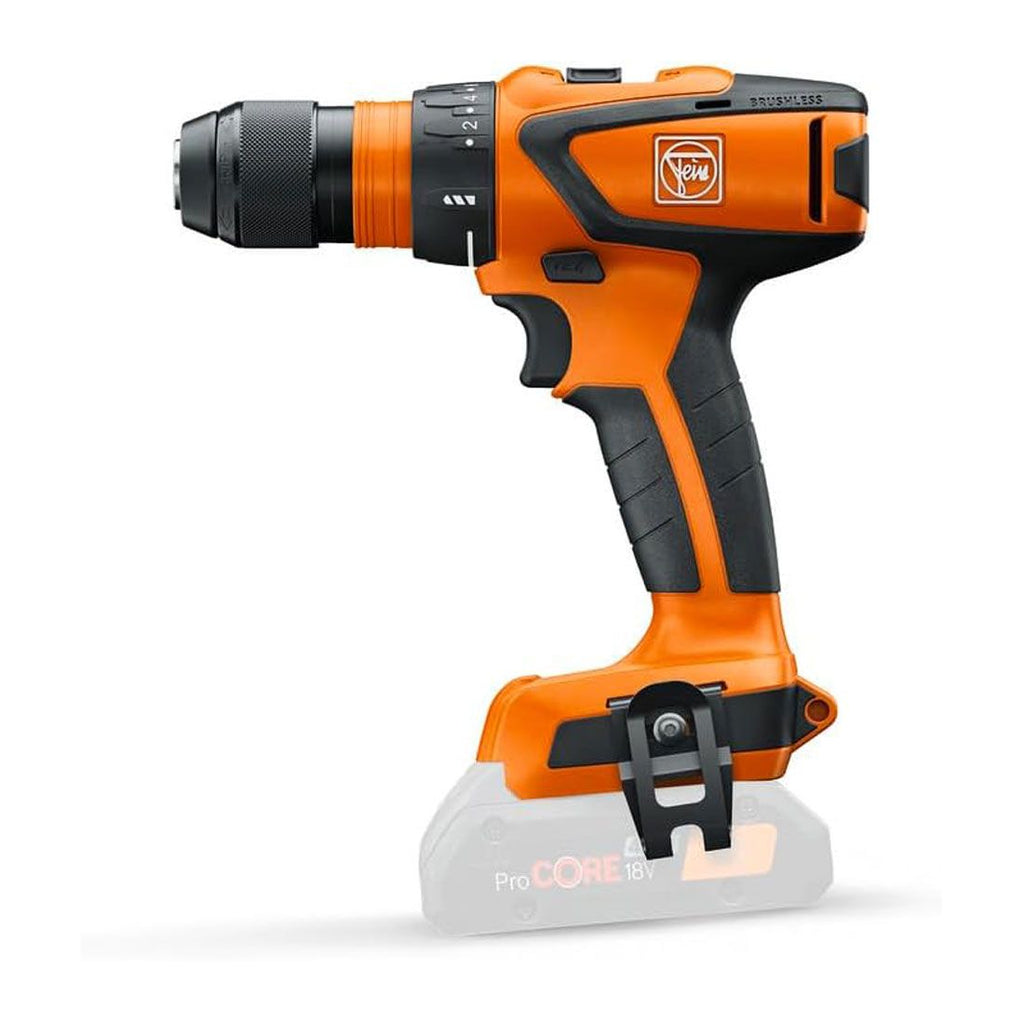

Fein 71161461000 ASCM 18 QSW 4-Speed Cordless Drill/Driver
- 4-speed solid metal gearbox for optimum cutting speeds for drilling in metal and self-drilling screws up to 6 mm
- Enjoy the greatest versatility with the FEIN QuickIN system. Work at speed in metal and timber with just one tool
- With the compact and lightweight design, weighing 1.3 kg, the ASCM 18 QSW is the lightest 4-speed drill/driver in its sector
Details
- 4-speed solid metal gearbox for optimum cutting speeds for drilling in metal and self-drilling screws up to 6 mm.
- Enjoy the greatest versatility with the FEIN QuickIN system. Work at speed in metal and timber with just one tool.
- With the compact and lightweight design, weighing 0.99 kg, the ASCM 18 QSW is the lightest 4-speed drill/driver in its sector.
- Brushless FEIN PowerDrive motor with 30 % higher efficiency and long service life.
- QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
- Mechanical torque setting.
- The AMPShare interface makes almost 100% more screw connections (approx. 1100, diameter of 5 x 40 mm in timber) possible per battery charge with the same level of FEIN quality. (ProCORE 4 Ah).
- Extensive user protection features include restart protection, electronic overload protection and brake.
- Bit and belt holder on the side for ergonomic and flexible handling.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.

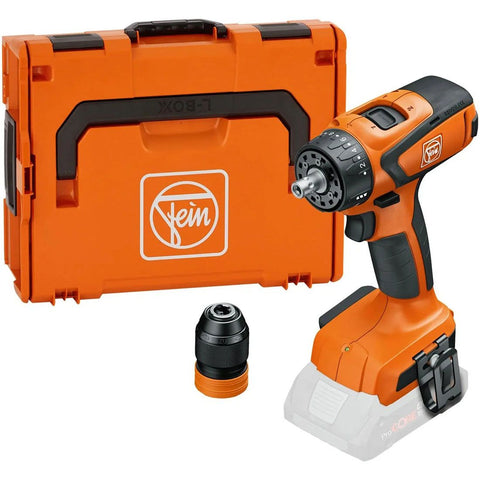

In The Box-
- 1x ASCM 18 QSW AS Drill Driver Body Only
- 1x Belt Clip
- 1x QuickIN Drill Chuck
- 1x Magnetic Bit Storage
- 1x L-Boxx 136 Carry Case
Technical Data
Battery voltage-18 V
Battery compatibility-Li-ion / ProCORE Li-ion
Battery interface-18 V AMPShare
Motor-brushless
Gearbox-4-speed
Accessory interface-QuickIN
Speed, no load-400 / 700 / 1,400 / 2,500 rpm
Max. torque (hard/soft)-40 / 30 Nm
Torque levels-20 + 1
Drill chuck clamping width-1.5 - 13 mm
Fastening-8 x 200 mm
Capacity in steel Ø-13 mm
Capacity in wood Ø-40 mm
Tapping-M 8
Weight without storage battery-0.99 kg
Vibration and Sound Emission Values
Sound pressure level LpA-80,3 dB
Uncertainty of measured value KpA-5 dB
Sound power level LWA-88,3 dB
Uncertainty of measured value KWA-5 dB
Sound peak value LpCpeak-94,0 dB
Uncertainty of measured value KpCpeak-5 dB
Vibration value 1 αhv 3-way-ah,D 1,3 m/s²
Uncertainty of measured value Kα-1,5 m/s²
Vibration value 2 αhv 3-way-ah 0,9 m/s²
