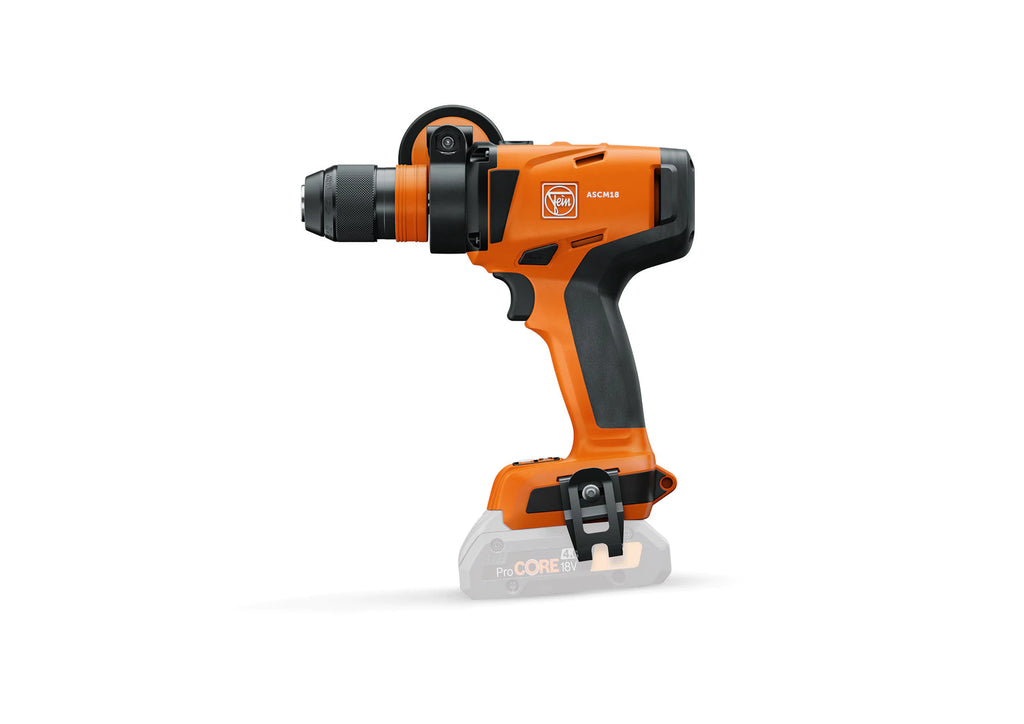

Fein 71161561000 ASCM 18 QM 4-Speed Cordless Drill/Driver
4-speed cordless hammer drill/driver
With brushless motor and QuickIN interface. No compromise on performance for tapping up to M14 and drilling with carbide hole saws up to 80mm.
- 4-speed solid metal gearbox. With speeds of up to 4000rpm for optimum cutting speeds in metal for any holes between 1.5 and 80mm
- Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs
- Very safe working. Kickback monitoring stops the tool
- The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool
- Extendible extra handle for more control
- The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible
- High torques up to a maximum of 130Nm
- QuickIN solid metal drill chuck (120Nm) with carbide-tipped clamping jaws and high clamping forces
- Electronic torque setting (15+1)
- Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material
- Bit and belt holder on the side for ergonomic and flexible handling
- Fixes 10 x 400 mm screws without pre-drilling
- AMPShare interface makes 1400 screw connections (5 x 40mm in timber) possible per battery charge (ProCORE 4Ah)
- Extensive user protection features include restart protection, electronic overload protection and brake
- The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results
- Compatible with Bosch Professional 18V batteries (available since 2008) and AMPShare batteries
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge
- Ideally equipped for every job. Mobile working with the L-BOXX system
In The Box-
1 QuickIN drill chuck (120Nm), 1 belt clip, 1 magnetic bit storage, 1 telescopic handle and 1 tool case (L-Boxx 136).
Specification
Battery voltage: 18V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN MAX
Speed, no load: 430 / 850 / 2,000 / 4,000 rpm
Max. torque (hard/soft): 130 (70 / 50) Nm
Torque levels: 15 + 1
Drill chuck clamping width: 1.5 - 13mm
Fastening: 10 x 400mm
Drill Ø steel twist drill: 13mm
Drilling diameter in steel, core drill bit: 30mm
Drilling diameter in steel, hole saws: 80mm
Capacity in wood Ø: 60 mm
Tapping: M 14
Weight without storage battery: 1.30Kg
