Fein 71161566000 ASCM18-4QM AS 18V Cordless Drill/Driver Quickin Set - 4-Speed Brushless Motor With Case
Cordless drill/driver in user set.
The omnipotent ASCM 18-4 QM AS with 7 quick-change QuickIN attachments for maximum efficiency and application versatility when drilling, tapping and screwing. Everything is stored in a clear, tidy and secure way in the i-BOXX.
- 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm.
- Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.
- The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool.
- Very safe working. Kickback monitoring stops the tool.
- Extendible extra handle for more control.
- The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible.
- High torques up to a maximum of 130 Nm.
- QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces.
- Electronic torque setting (15+1).
- Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material.
- Bit and belt holder on the side for ergonomic and flexible handling.
- QuickIN accessory set in the i-BOXX consisting of 7 QuickIN accessories: 1 bit holder 1/4", 1 socket adapter 1/2", 1 tapping attachment, tapping collets 1 x 4.5 mm, 1 x 6 mm, 1 eccentric attachment, 1 angle head. The case inlay of the i-BOXX offers additional space for further QuickIN accessories.
- Fixes 10 x 400 mm screws without pre-drilling
- AMPShare interface makes 1400 screw connections (5 x 40 mm in timber) possible per battery charge (ProCORE 4 Ah).
- Extensive user protection features include restart protection, electronic overload protection and brake.
- The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results.
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.
- Ideally equipped for every job. Mobile working with the L-BOXX system.
In The Box-

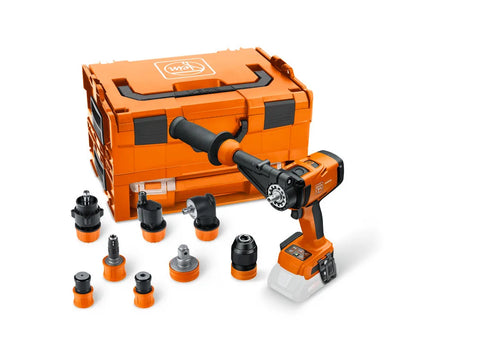

- 1 ASCM 18-4 QM AS (incl. handle, belt clip, bit holder),
- 1 QuickIN Accessory Set 7 pieces,
- 1 tool case (L-BOXX 136),
- 1 iBOXX 72,
- 1 iBOXX Rack
Specification
Battery voltage: 18 V
Battery compatibility: Li-ion / ProCORE Li-ion
Battery interface: 18 V AMPShare
Motor: Brushless
Gearbox: 4-speed
Accessory interface: QuickIN MAX
Speed, no load: 430 / 850 / 2 000 / 4 000 rpm
Max. torque (hard/soft): 130 (70 / 50) Nm
Torque levels: 15 + 1
Drill chuck clamping width: 1.5 - 13mm
Fastening: 10 x 400mm
Drill Ø steel twist drill: 13mm
Drilling diameter in steel, core drill bit: 30mm
Drilling diameter in steel, hole saws: 80mm
Capacity in wood Ø: 60 mm
Tapping: M 14
Weight without storage battery: 1.30Kg
