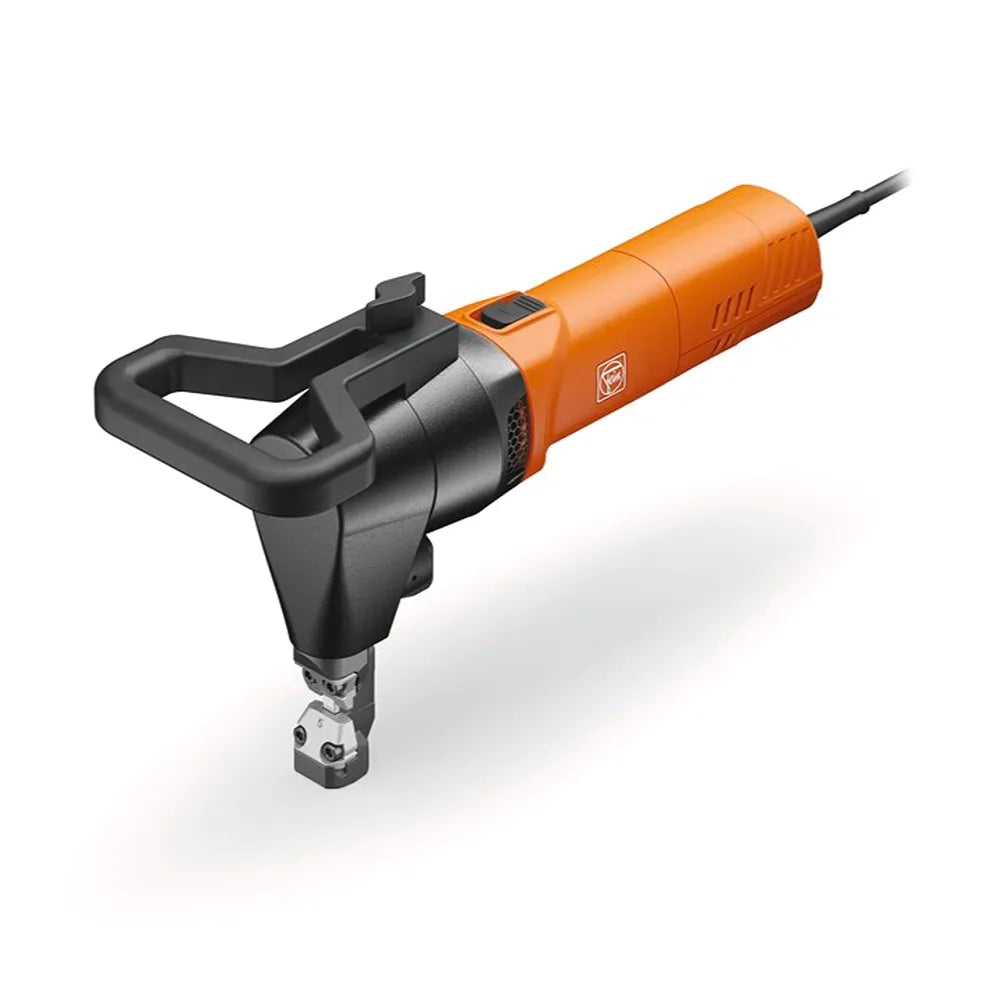

Fein 72324761240 BLK 5.0 E Nibbler 5mm 230V
The FEIN BLK 5.0 E Nibbler 5 mm (72324761240) is a high-performance professional sheet metal cutting tool designed for efficient straight and contour cutting in sheet steel, aluminium and other thin metal materials up to 5 mm thick. Engineered for workshop fabrication, industrial metalworking and HVAC applications, this robust electric nibbler delivers smooth, burr-free cutting performance with excellent control and precision. Its power-optimized design and durable construction make it suitable for heavy-duty use where reliable cutting and clean edges are essential.
Featuring a high-efficiency cutting head and ergonomic handling, the BLK 5.0 E ensures accurate, low-vibration operation even during prolonged use. Designed for professional metalworkers, fabricators and maintenance technicians, this nibbler provides consistent performance across a wide range of sheet metal cutting tasks — enhancing productivity while reducing manual effort and metal distortion.
Features
- Professional sheet metal nibbler for cutting up to 5 mm material thickness
- Electric power drive for consistent, smooth cutting performance
- Efficient cutting head delivers burr-free edges and clean contours
- Ergonomic grip and balanced design for improved handling
- Robust construction built for heavy-duty workshop use
- Low vibration operation enhances comfort and accuracy
- Ideal for straight and curved cuts in sheet metal applications
In the Box -
- 1 nibbler
- 1 die 5, steel (31309107000) fitted
- 1 punch 5/P5 steel (31309141000) fitted
- 1 additional handle fitted
| Technical Data | |
|---|---|
| Input | 1,700 W |
| Output | 1,000 W |
| Strokes | 820 rpm |
| Cutting speed | 1.5 m/min |
| Steel up to 400 N/mm² | 5 mm |
| Steel up to 600 N/mm² | 3.3 mm |
| Steel up to 800 N/mm² | 2.5 mm |
| Non-ferrous metals up to 250 N/mm² | 7 mm |
| Cutting width | 8 mm |
| Immersion Ø with die | 43 mm |
| Rad. of smallest curve (inside/outside) | 90 / mm |
| Cable with plug | 4 m |
| Weight | 3.80 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 93,2 dB |
| Uncertainty KpA | 3 dB |
| Sound power level LWA | 101,2 dB |
| Uncertainty KWA | 3 dB |
| Sound peak value LpCpeak | 125 dB |
| Uncertainty KpCpeak | 3 dB |
| Vibration value αhv 3-way | 10 m/s² |
| Uncertainty Kα | 1,5 m/s² |
