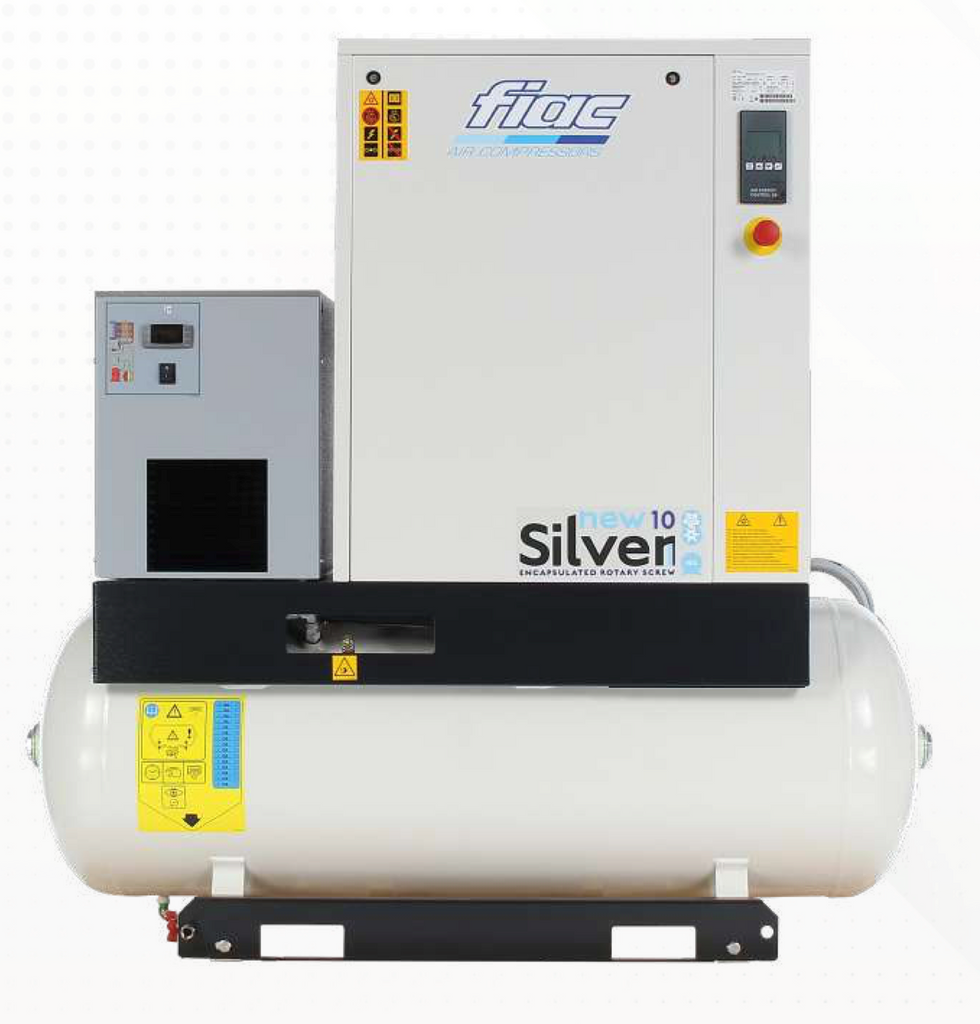

The FIAC New Silver Fixed Speed, 10Hp, 10Bar, Tank 270Liters, with Dryer, MEAA is equipped with fully integrated aluminium block and superior vertical oil separation. The airend is part of the new generation and is particularly compact. This compressor is highly reliable, with an energy efficient motor delivering low noise and vibration. The digital controller is simple and reliable and allows to regulate the machine and protect it against possible damages during operations. This compressor has one of the smallest footprints on the market, but thanks to the unique design, allows quick, easy and cost-effective maintenance.
Technical Data
Specification
| Performance data | |
|---|---|
| Max Working Pressure (Bar) | 10 Bar |
| Max Working Pressure (psi) | 145 PSI |
| FAD capacity (l/min) | 965 l/min |
| FAD capacity (cfm) | 34.1 Cfm |
| Vessel size (lt) | 270 Litre |
| Vessel size (gal) | 71.3 Gal |
| Motor (hp) | 10 Hp |
| Motor (kw) | 7.5 kW |
| Noise Level | 69 dB(A) |
| Pump Speed | n.a. Rpm |
| Oil capacity | 2.5 Litre |
| Dimensions product | |
| Length | 1533 mm |
| Height | 1447 mm |
| Footprint (L x W) | 1 Sqm |
• Max Working Pressure (bar) - 10
• FAD capacity (l/min) - 965
• Vessel size (lt) - 270
• Configuration - Tank Mounted
• Motor (kw) - 7.5
• Noise Level - 69
