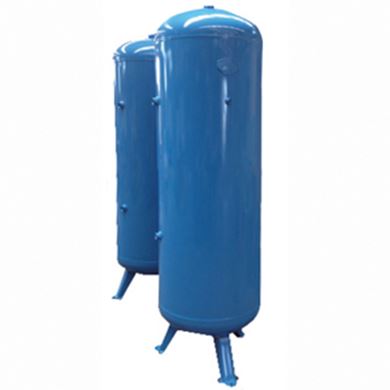

Vertical Receiver 270 Litre - 1" Port
Specification
270 Litre Capacity, Compressed Air Receiver, BSP Parallel Ported, RAL 5015, Vertical with Fixing Bracket, Width 500mm, Height 1648mm, Weight 67Kg, Working Temperature -10°C to +100°C, Maximum Working Pressure 11 bar.
Installation: always in combination with a full receiver kit, water drain and safety valve. Ensure the compressor never takes in air/solvent mix. This could cause the tank to explode. The air receiver or tank allows the storage and control of compressed air. A device on most compressors maintains pressure at a predetermined pressure range, allowing the compressor to operate automatically as the air is used, switching on and off accordingly. The air receiver must also be fitted with a safety device to prevent over pressurisation, a means of draining condensate and various outlet sockets. The size of air receiver (usually measured in litres) will normally be proportional to the size or capacity of air compressor fitted. Material: Carbon steel. Finishing: External RAL 5015 blue paint. Fluid content: Compressed air and nitrogen (group 2). All air receivers for the European market are supplied with declaration of conformity. In compliance with the applicable EU Directives or accordingly to the major international standards: SPVD 2014/29/UE Directive (ex 2009/105/EC).
Features
- 11 Bar maximum working pressure
- Powder coated RAL5015
- Safety valve
- Pressure gauge
- Drain Valve
- Test certificate
Technical Data
Capacity: 270 Litres
Port size: 1"
Height: 1648mm
Diameter: 500mm
