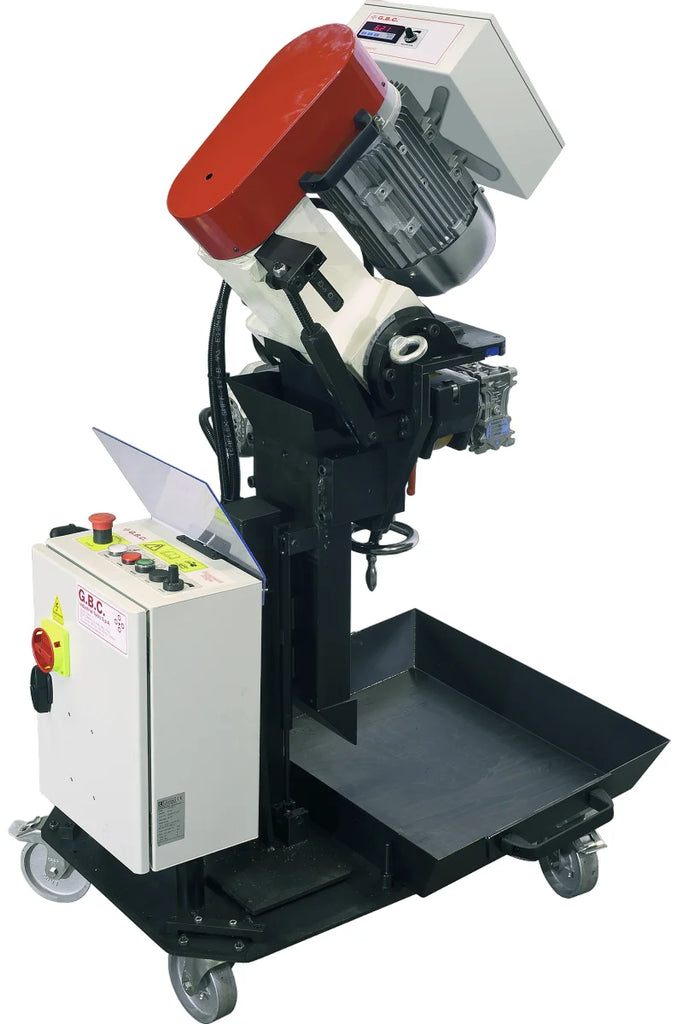

Plate bevelling machine. The Compact Edge plate bevelling machine features a high speed milling head with interchangeable inserts. It's reduced structural dimensions and weight is ideal for a more flexible and dynamic use.
The machine is equipped with a step less variable head type which allows bevel angles from 15° to 60°, granting a very easy and quick adjustment of the bevel angle.

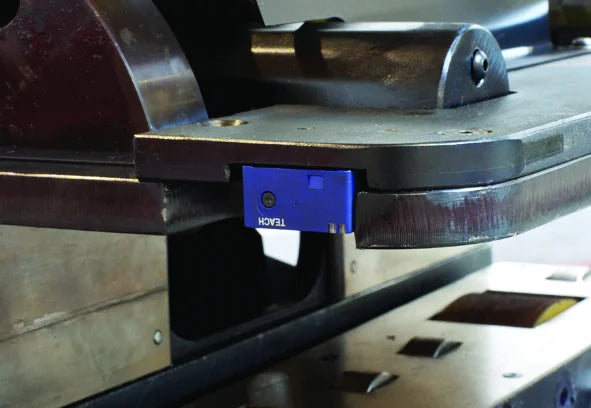

The machine is equipped with a plate detecting sensor and trolley with a new chips conveyance system. We have also implemented a dual amortisation system which allows to overcome imperfections of the wall thickness or variations of the plate, as well as the imperfections of the ground.

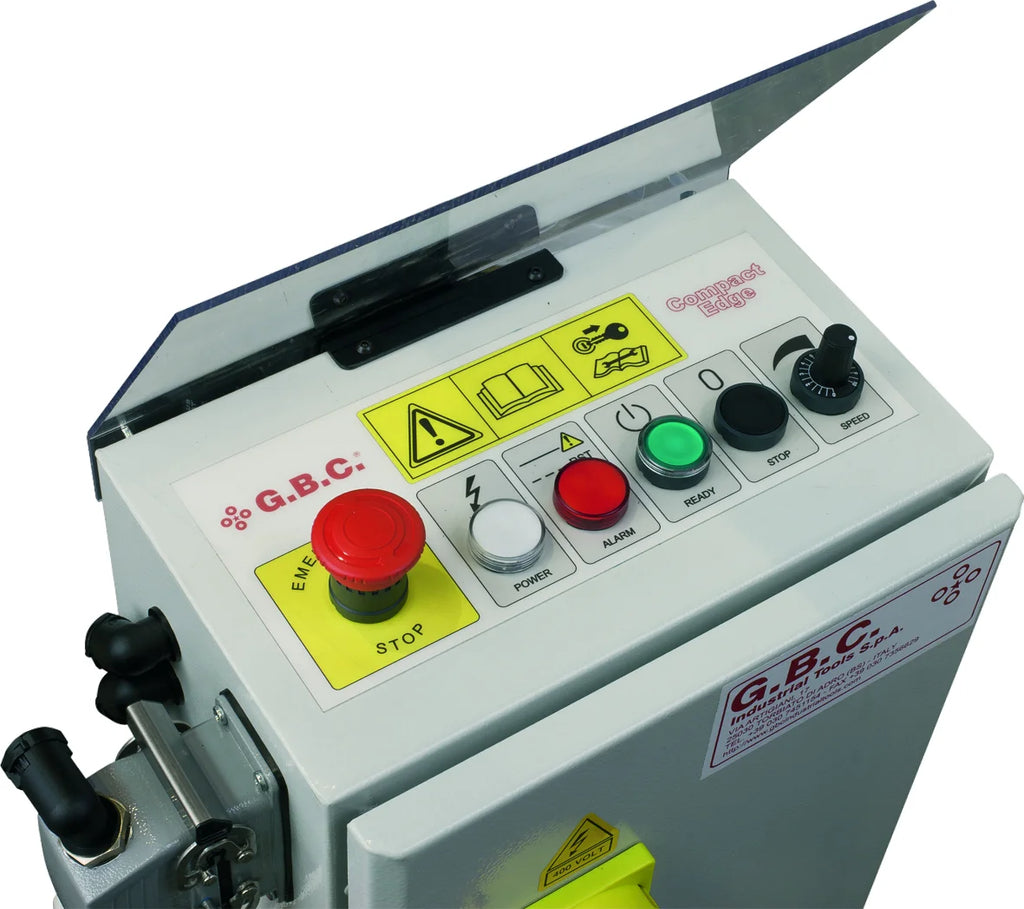

NOTE - It can bevel any material with smooth surface finishing, groove free. The feeding system with adjustable speed allows the unit to be used without the help of cranes or lifting devices.
Optional: Beam Edge The Compact Edge is also capable of being adapted to be able to edge bevel H beams. The angle of bevel is variable, 0-60 deg. It utilises the Compact Edge milling head with 9 carbide inserts to ensure a smooth mirror finish. For further information please contact us.
Optional: Compact Edge Reverse for bevelling the underside of plates.
- RANGE 1/4” to 2 3/8” thickness
- FUNCTIONS Bevel from 15° to 60°
- MATERIALS Carbon steel, stainless steel, duplex, super duplex, inconel, aluminium, etc
- POWER Electric 3 phase 400V 50Hz
