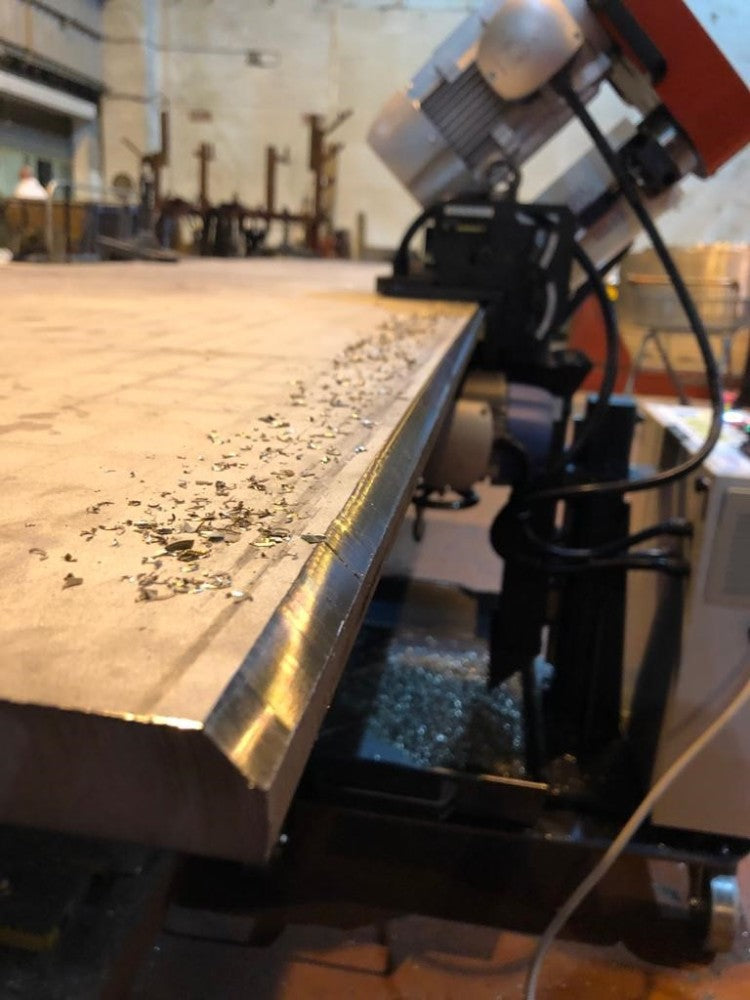

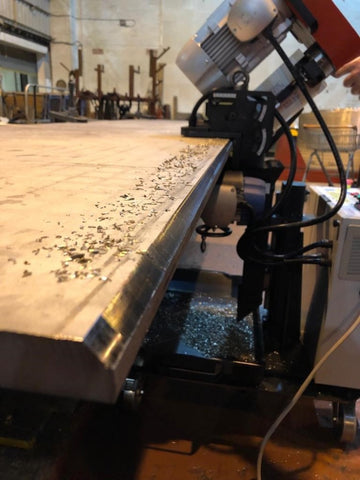

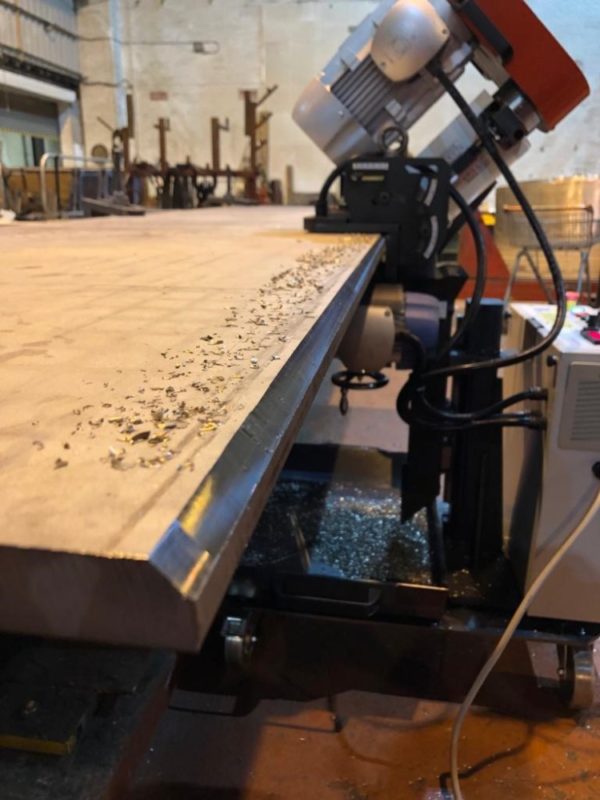

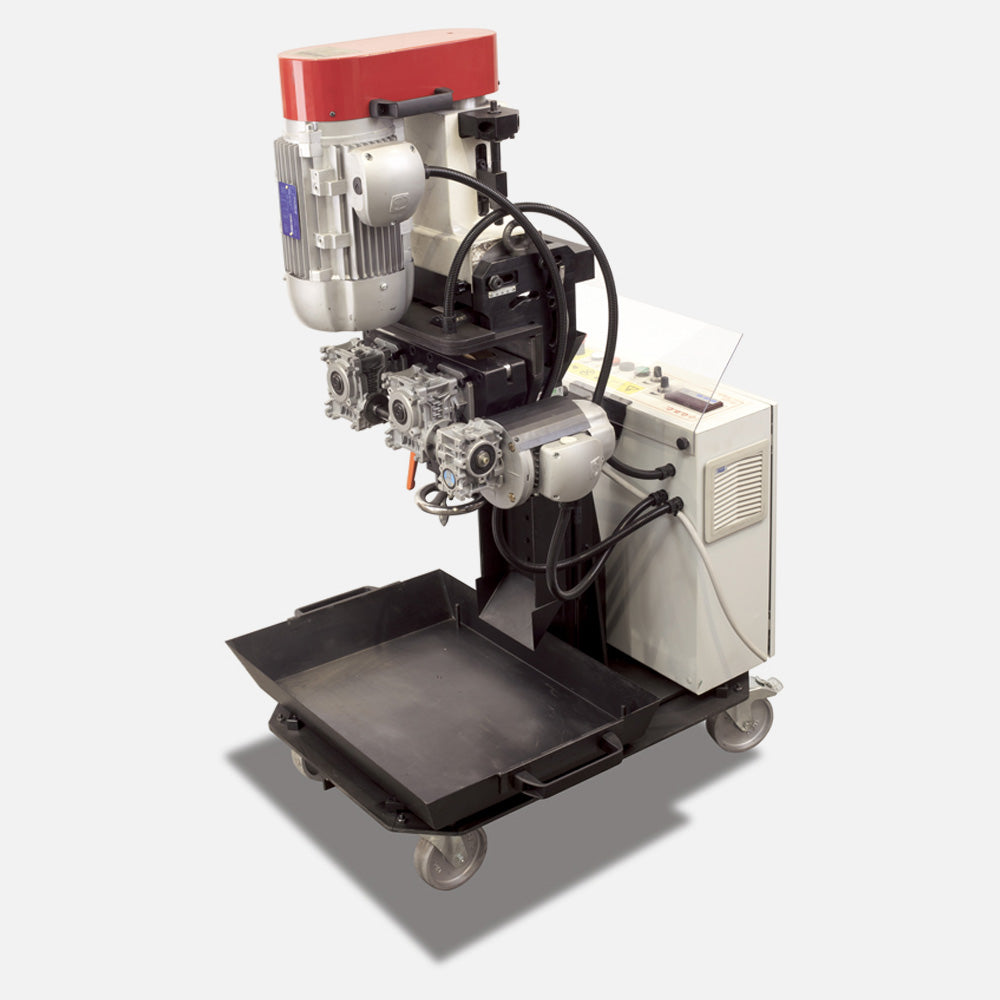

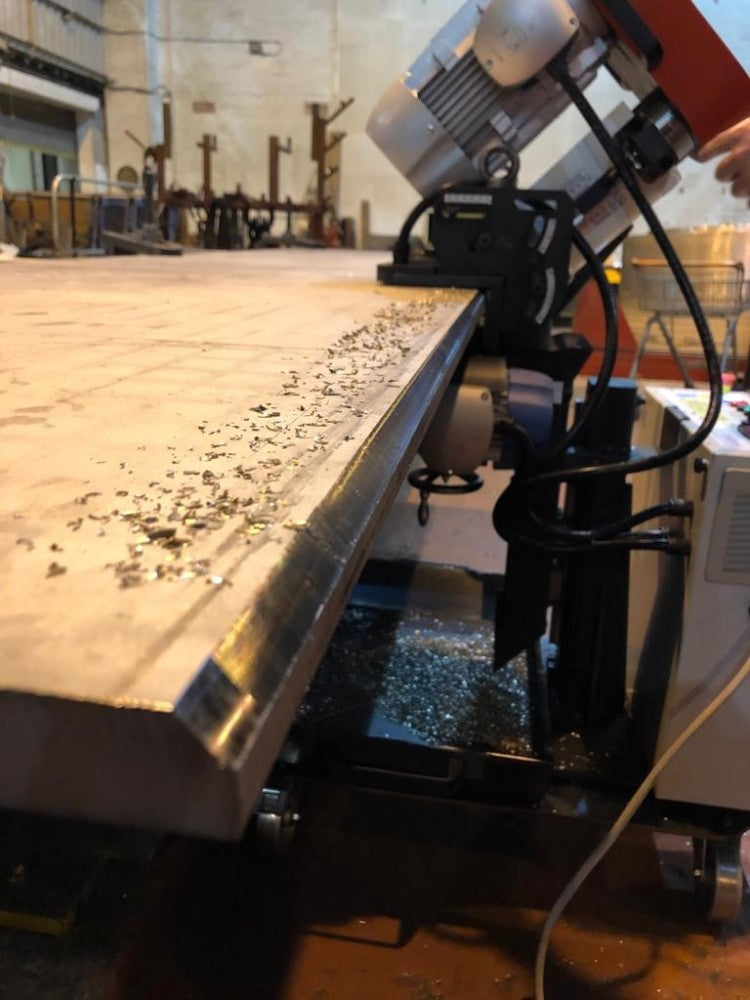

Machine for cladding removal, facing & bevelling. Multi functional plate beveller equipped with an adjustable head that can be easily set in any configuration required for the specific application.
Compact and versatile machine with a wide functions range such as cladding removal, facing and bevelling of plates.

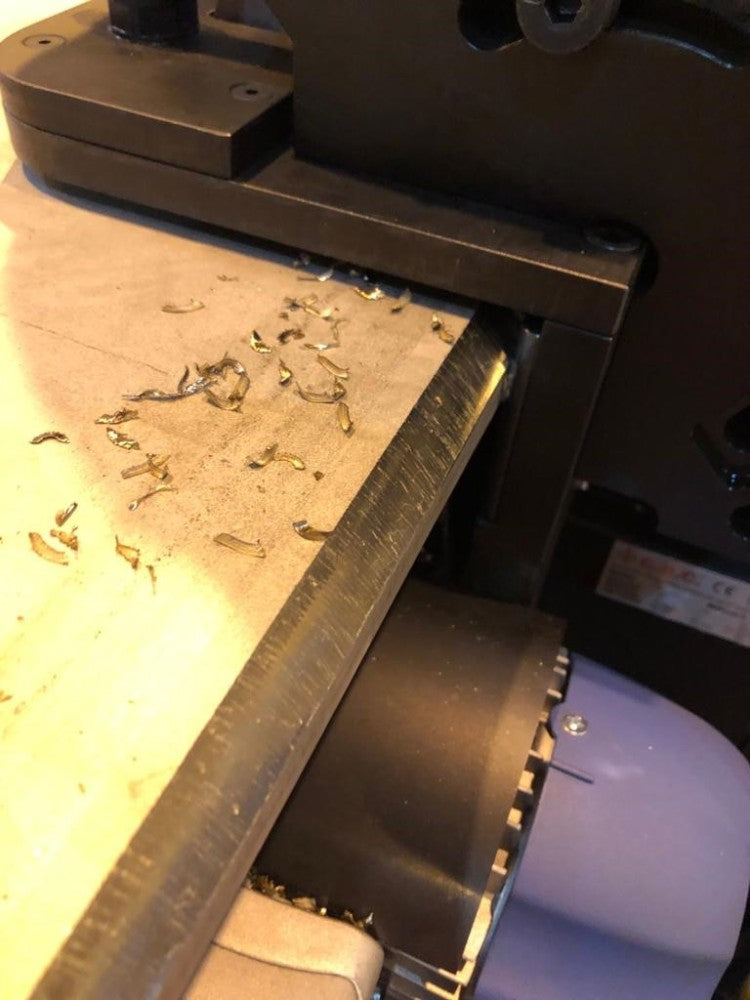

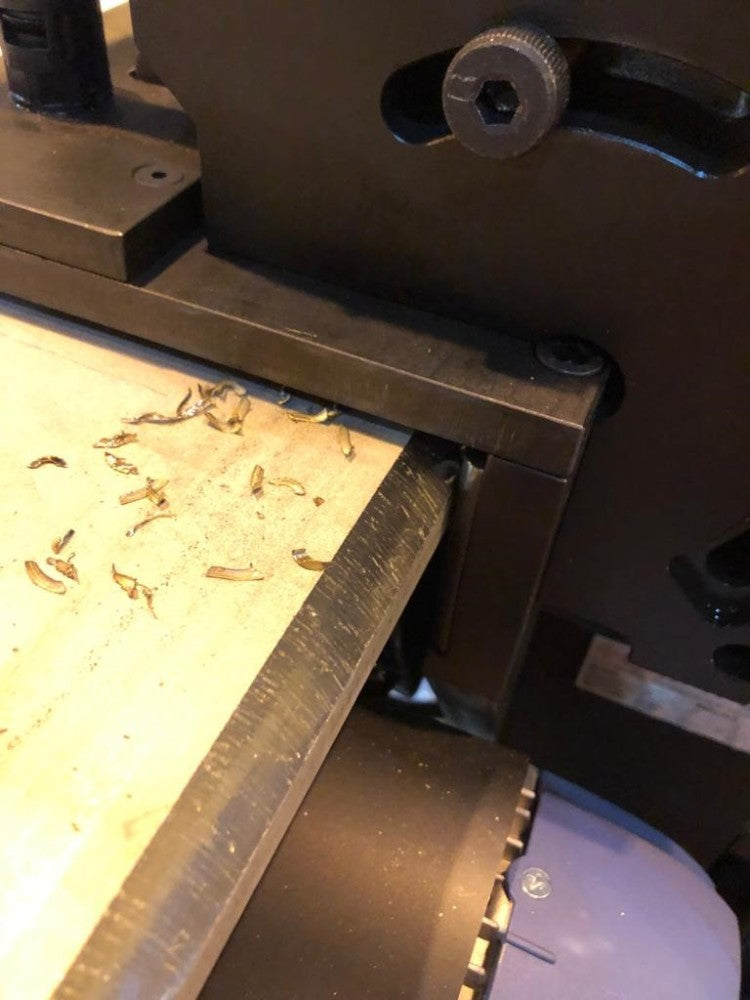

Complying with the highest safety standards, this machine guarantees the safeguard of the operator with a plate detecting sensor. The high speed milling head can host 8 to 9 indexable inserts depending by the application of the case, available for any material typology.
- Compact and versatile machine

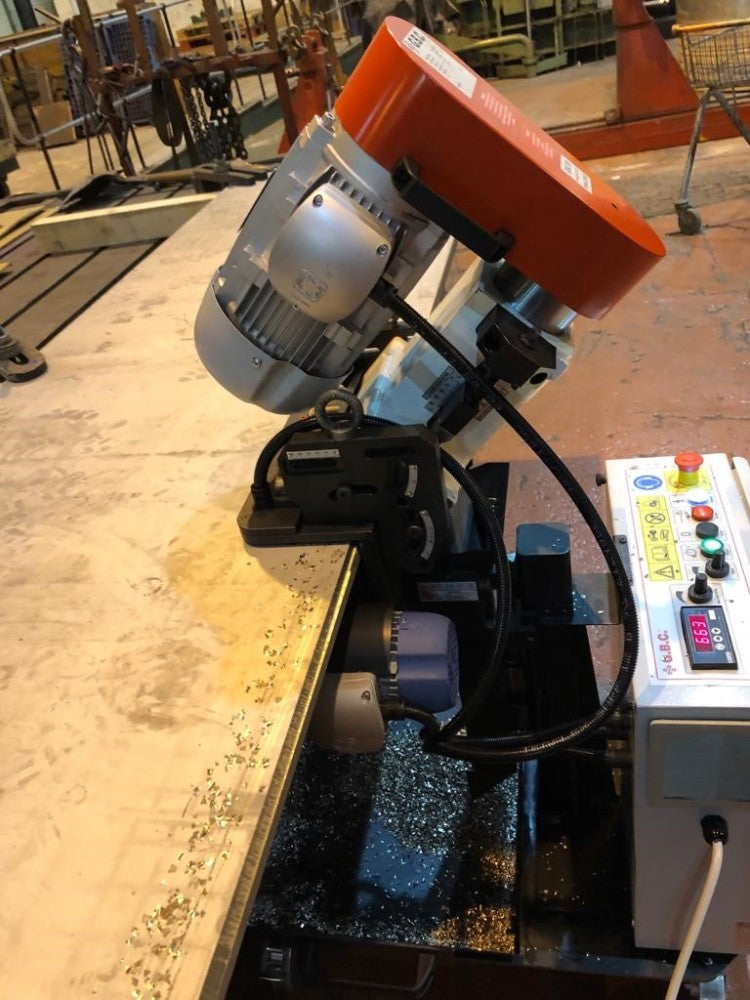

- Digital displays for the pass depth and for the angle tilt
- Onboard speed regulator for both the linear feeding and facemill RPM
- Diversified functions: clad removal, facing and bevelling
- High safety standards guaranteed by the plate detecting sensor
- High speed milling head with interchangeable inserts
- Different type of inserts available
- Integrated trolley
- Innovative feeding system
- Dual amortization system.
- RANGE 6 - 60 MM (2/8” – 2 3/8”) multi-edge 80 range w.t. 6-120 mm (5/16" - 4 3/4")
