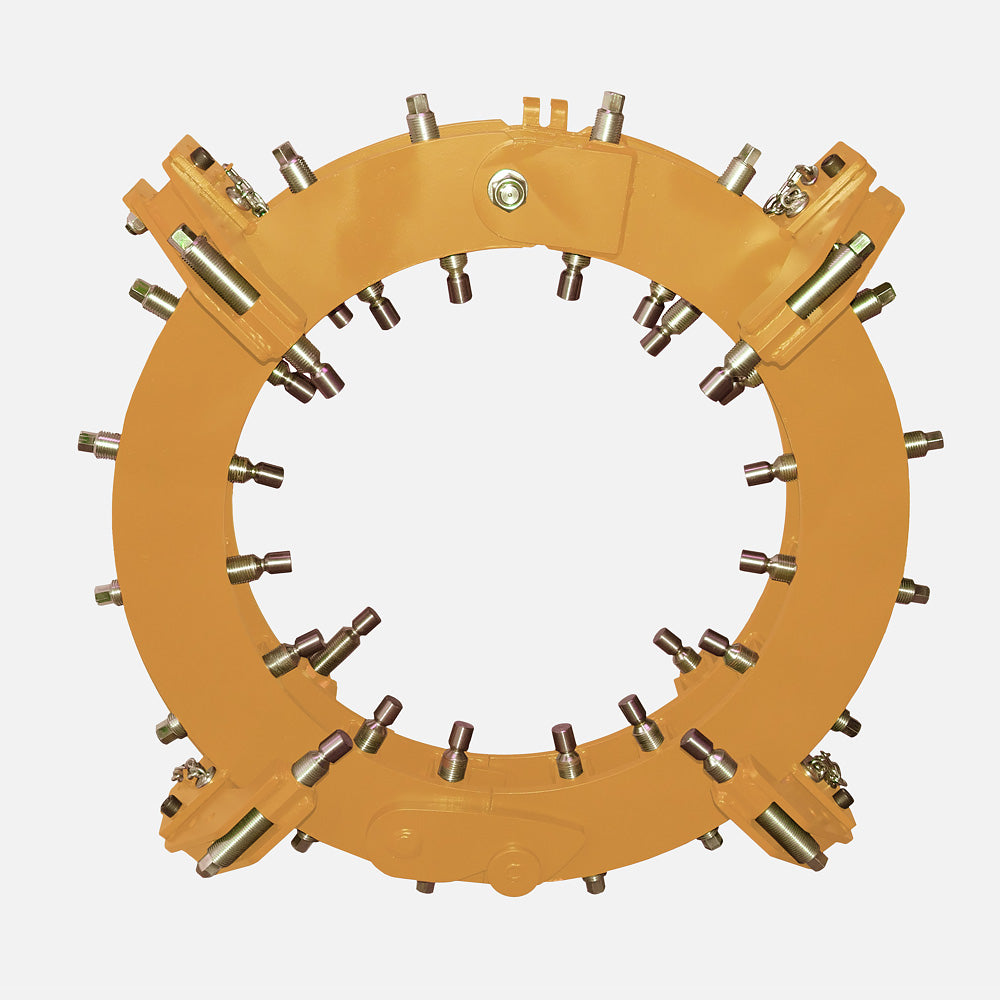

External line up clamp for tough reforming jobs. The Rim clamp is a heavy duty design to suit tough reforming jobs. The Jackscrew setting gauge makes initial setup easy, alongside the heavy duty latching mechanism the Rim clamp is perfect for large pipeline reforming.
- From sizes 4”—72”+
- Reform high tensile pipe X45 and above
- For out-of-round conditions up to 2”
- Pivot points are made from stainless steel, one clamp will work for all applications
- Hinged flip-up jackbars allow for simple pipe mating and allow for full 360° welding
- Torque wrench supplied for accurate reforming pressure
Model No. Description Est. Shipping Weight.
258-0406 Rim Clamp 4-6” Call For Dimensions
258-0608 Rim Clamp 6-8" Call For Dimensions
258-0810 Rim Clamp 8-10" Call For Dimensions
258-1012 Rim Clamp 10-12" 280lbs/127kg
258-1420 Rim Clamp 14-20" 330lbs/149.69kg
258-2026 Rim Clamp 20-26" 360lbs/163.30kg
258-2228 Rim Clamp 22-28" 370lbs/167.83kg
258-3036 Rim Clamp 30-36" 450lbs/204.12kg
258-3440 Rim Clamp 34-40" 475lbs/215.45kg
258-4248 Rim Clamp 42-48" 580lbs/263.08kg
258-4450 Rim Clamp 44-50" 600lbs/272.15kg
258-4652 Rim Clamp 46-52" 760lbs/344.73kg
258-5056 Rim Clamp 50-56" 790lbs/358.34kg
258-6672 Rim Clamp 66-72" 885lbs/401.43kg
