GBC Torch Guide W/Magnetic Off/On Blocks /Standoff/Circle Layout & Bevelling Guide

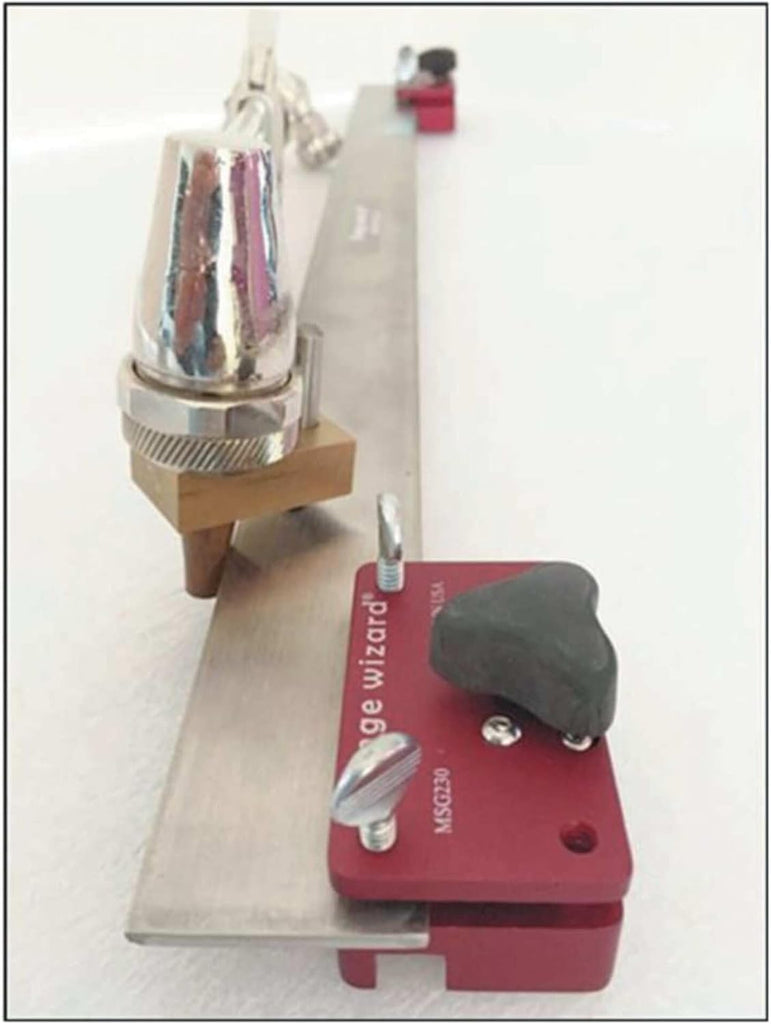

Flange Wizard Magnetic Torch Guides Torch guide is composed of straight edge rail and uses magnetic blocks. Blocks are slotted on three sides and can be positioned any place along the stainless cutting rail to accommodate any cutting job. Utilizes newest on/off magnet technology.
24" Magnetic Torch Guide Extension w/ Connector features:
- Stainless steel edge rail features magnetic blocks that can be positioned to accommodate any cutting job.
- Slotted on three sides for fastening in any position.
- On/off switch for easy setup and elimination of debris.
- Ideal for any application where accurate cutting is desired.
Multi-Use Magnetic Angle Burning Guide
The 70001 Angle Burning Guide with magnetic base can be used with conventional oxy-fuel, or plasma torch systems to assist in making angle and straight cuts.
Featuring a New On/Off Switchable Magnet
- The tool can also be used as a protractor or multi-angle tri-square.
- The top guide will hold any standard square as well as most straight edges.
- The base is equipped with strong magnets located on the back for cutting straight lines and angles.
- In addition a strong magnet is placed on the bottom for giving stability when using the tool as a tri-square.
- Protective carrying case p/n 8903 can be ordered separately (16" x 6" x 3")
Circle Wiz Cutting Torch Attachment CW-300 - Flange Wizard Tools
The CW-300 Circle Wiz cutting attachment is a must for anyone who cuts small to medium holes in plate or pipe. It is especially handy for cutting out the holes for matching saddle cuts, weldolets and threadolets.

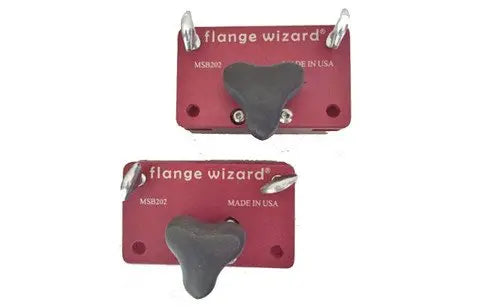

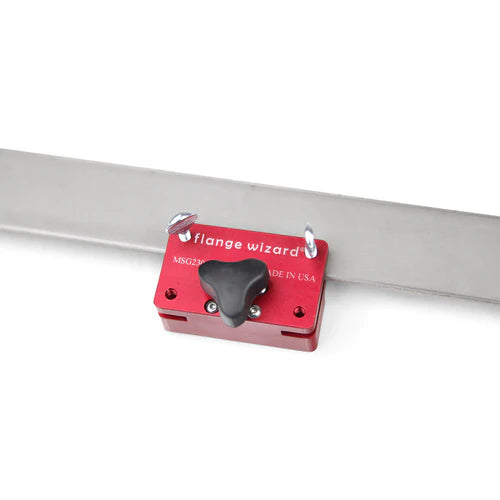

On/Off Magnetic Block
On/Off magnetic support blocks can be attached to any standard square or straight edge, up to 1/8 inch thick, to form your own burning guides. Blocks are machined from aluminum and have grooves on three sides. Included are set screws to easily adjust blocks on straight edges or squares. Options available for one On/Off magnetic block (MSB201) or two On/Off magnetic blocks

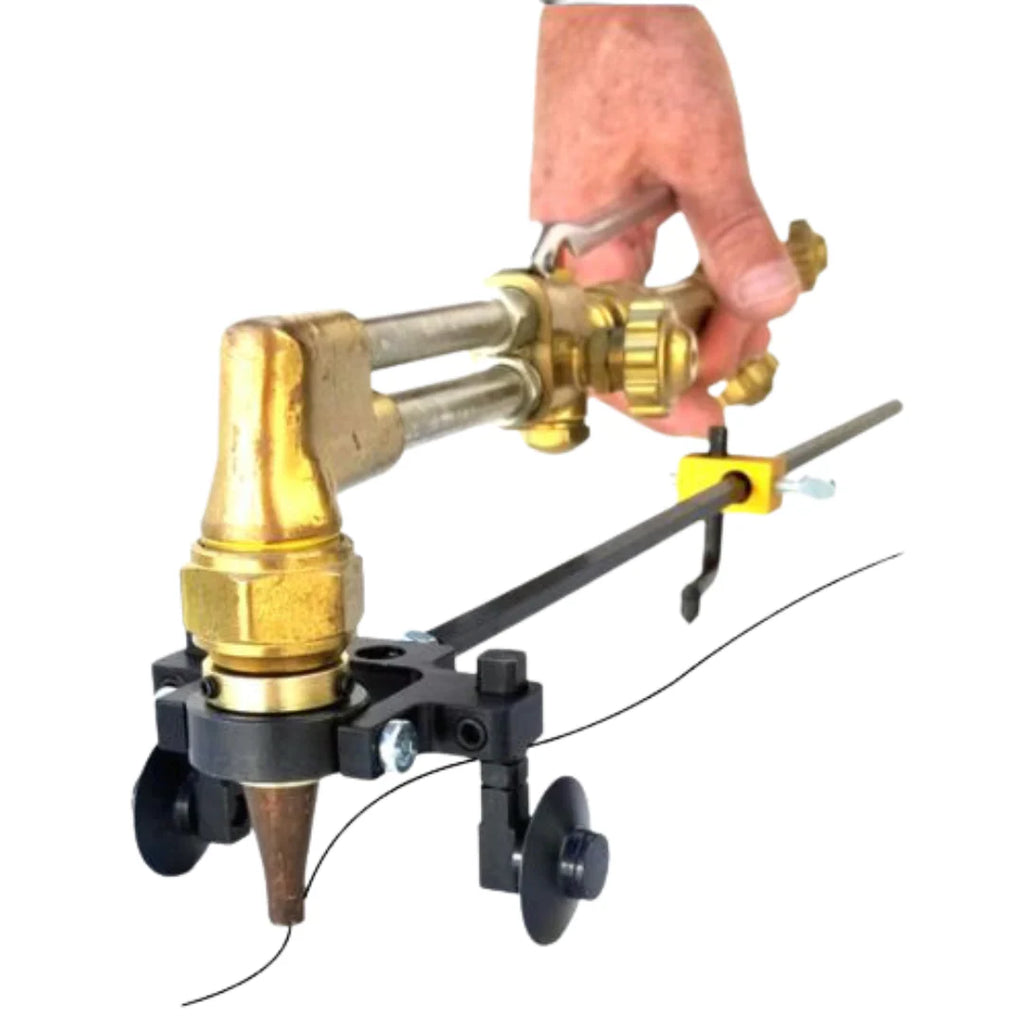

Chariot “Beveling” Burning Guide
Multi-Purpose Chariot “Beveling” Burning Guide Flange Wizard‘s new burning guide is designed to not only cut straight, irregular shapes and circles, but also bevel them at the same time. The new improved design makes height adjustment and setting the head at the proper angle for beveling a simple job for the beginner as well as the journeyman Wheels can be adjusted for straight, irregular shapes, or circle cuts.

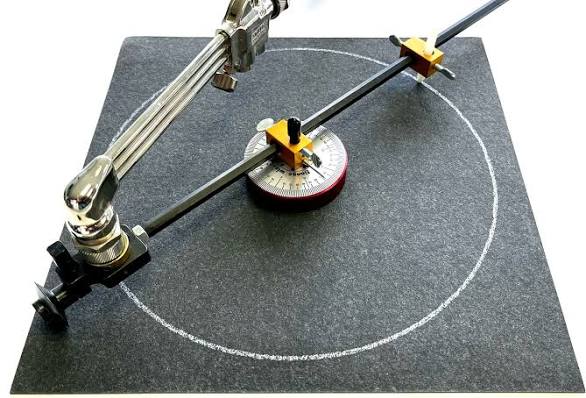

Magnetic Circle Layout/Burning Guide
360-degree magnetic base, a sliding soapstone holder, and a, and a sturdy arm that supports standard torches for accurate cutting.
- Cutting Capacity: Up to 30 inches in diameter; can cut holes as small as 4 inches with the base removed.
- Design: Features a 360-degree scale on the magnetic base for precise layout.
- Functionality: Acts as both a layout tool for marking and a burning guide for cutting plates.
- Support: Strong magnets hold the torch, allowing for better control.
-
Components: Includes a sliding soapstone holder (fits round soapstone, 41/64 inch bushing ID).
- Applications: Ideal for bolt circles, hole locations, baffle plates, and circle sectioning

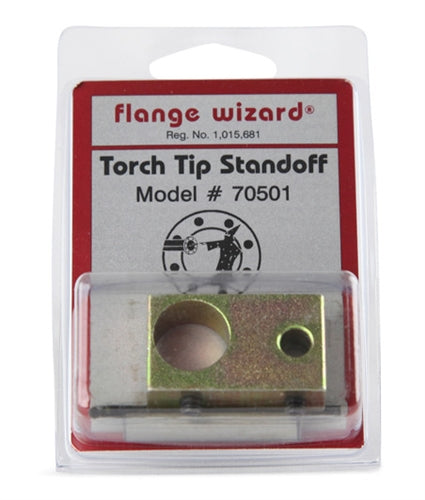

Torch Tip Standoff
Is a must for anyone using a cutting torch and wants to keep their tip at the proper burning height at all times.
- It assists in making more uniform cuts and keeps cutting tips from being damaged.
- Just slide the Standoff over the cutting tip and against the bottom of the torch nut and tighten the set screw.
- Hole diameter is 41/64″ (.640)
