GCE X10 Orbit Welding Brazing Shank and Mixer for Welding Torch
Lightweight cutting & welding system
GCE continues to introduce the new torch design across the extensive GCE X10™ Welding product range. Now it´s time to present the GCE X10™ ORBIT ORIGINAL torch program.
The GCE X10™ ORBIT ORIGINAL with its new design is a light weight constructed welding blowpipe. Designed with safety in mind and engineered from highest quality materials to complement the operator in production or light gauge maintenance welding and brazing.
The neat design and light weight makes torch perfect suitable for brazing operations. The trim valves are easy to adjust and control to set whatever flame required.
GCE X10™ ORBIT
Advantages:-
High operating safety. The shank is manufactured from a solid drilled aluminium forging, no risk for any leakage.
Light weight. Perfect suitable for precise soldering and brazing operations.
New trim valve design for easy and precise setting for the flame.
Conform to EN standard EN ISO 5172

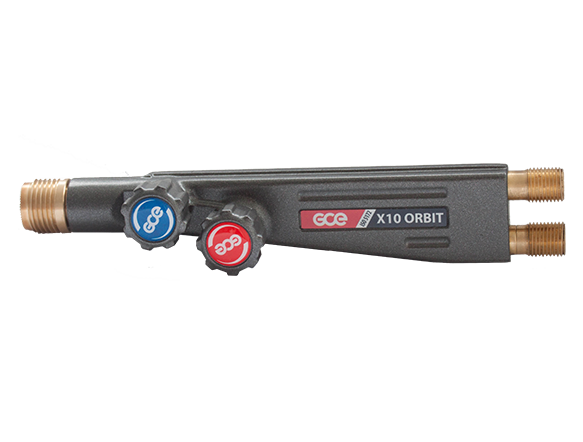

Shank:
| Art. Nr. | Inlet connection | Outlet connection |
| G0766229 | G1/4” | G1/4” LH |

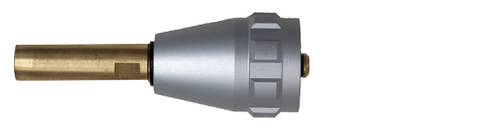

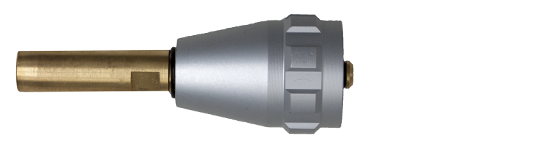

Mixer:
| Art. Nr. | Description |
| 0766231 | GCE X10™ ORBIT MIXER |
Specifications:
Hose connections: 1/4” BSP (other threads available on request)
Welding capacity: 8 mm
Welding nozzles:
Lightweight, Swaged Nozzles Size 1-25
D.H. Solid Copper Tips Sizes 1-25
