GYS 032262 Easymig Welder, Multiprocess 140 IGBT Inverter, 230 V

The EASYMIG 140 is a single-phase welding inverter that can be MIG/MAG, cored wire and e-hand welding and is suitable for steel, stainless steel and aluminium. Thanks to the robust and reinforced design, the low weight and rubber dampers that reduce shocks and vibrations, the device is also good for mobile use. An intuitive control panel with digital display makes it easier to adjust the wire voltage and speed. Only the following settings must be selected: - Arc dynamics - Predetermined voltage from 15 to 20 V or the electrode diameter for e-hand welding - Selection of wire speed from 3 to 9 m/min. The device is equipped with a Euro-central connection for easy change of the burner. Anti-sticking: Helps to reduce the tendent sticking of the electrode in the welding bath.

Our EASYMIG series is tailored to every application:

• Ideal for DIY activities and light repairs.
• Suitable for repairing agricultural machinery and equipment.
• Perfect for light maintenance work in the workshop
• Meets the requirements for the craft by easy handling and usability.

Features

• The inverter technology brings excellent welding current with lower power consumption.
• Can weld rutile encased electrodes. Anti-sticking: optimises electrode guidance.
• Can weld: MIG/MAG welding with solid wire with gas cored wire welding without gas.
• The cored wire welding perms: using the reverse polarity system with cored wire to weld insensitive to external influences (wind) to be lighter and more mobile, as no gas bottle is necessary to be ideal for outdoor work on thin sheets.
• The MIG/MAG burner comes with a removable burner suitable for steel 150 A with 2.20 m length and a Euro central connection for easy assembly/disassembly.
• Simplified display with 2 coloured LEDs for visualisation: Orange – thermal protection on / off and green – power supply on.

Easy to adjust

Selection of wire speed 3 to 10 m/min (MIG/MAG) or simplified current setting based on the electrode diameter (MMA), manual adjustment of the arc dynamics, selection of welding voltage from 15 to 21 V (MIG/MAG), 2 coloured LEDs for displaying: - thermal protection ON/. off - power - power off - power Supply ON

Box Contents:-

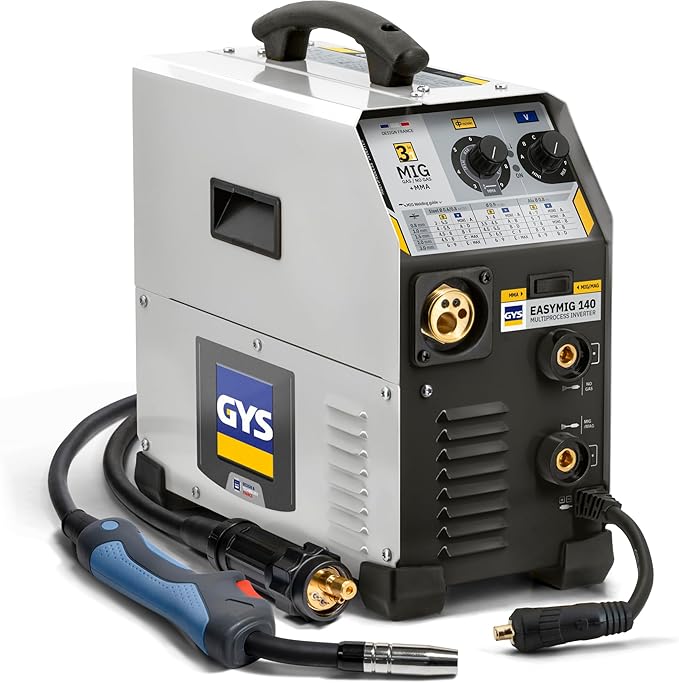

• MIG/MAG welding inverter EASYMIG 140

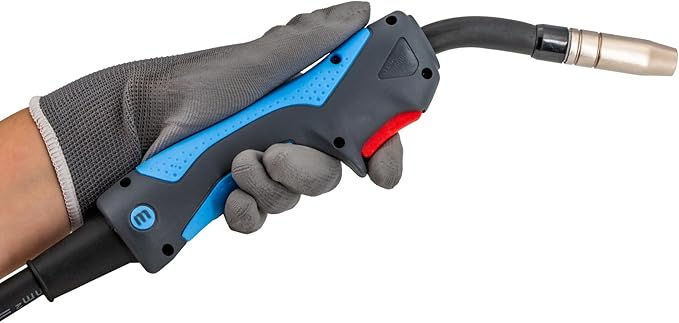

• MIG burner for steel, 150 A with 2.20 m length

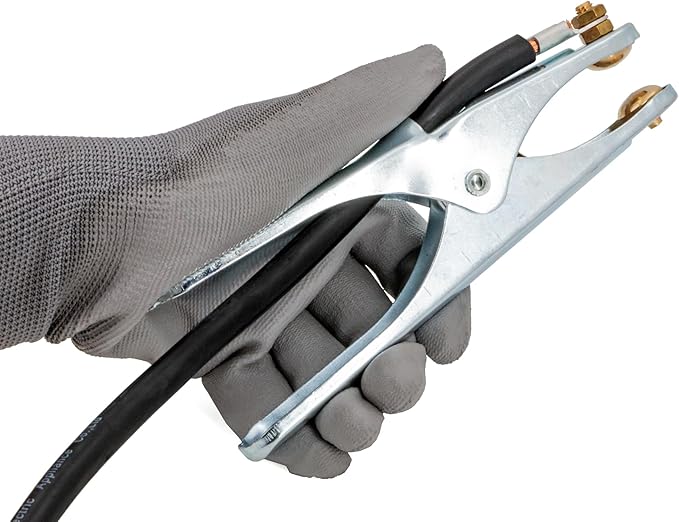

• Ground terminal with cable (1.6 m, 16 mm²)

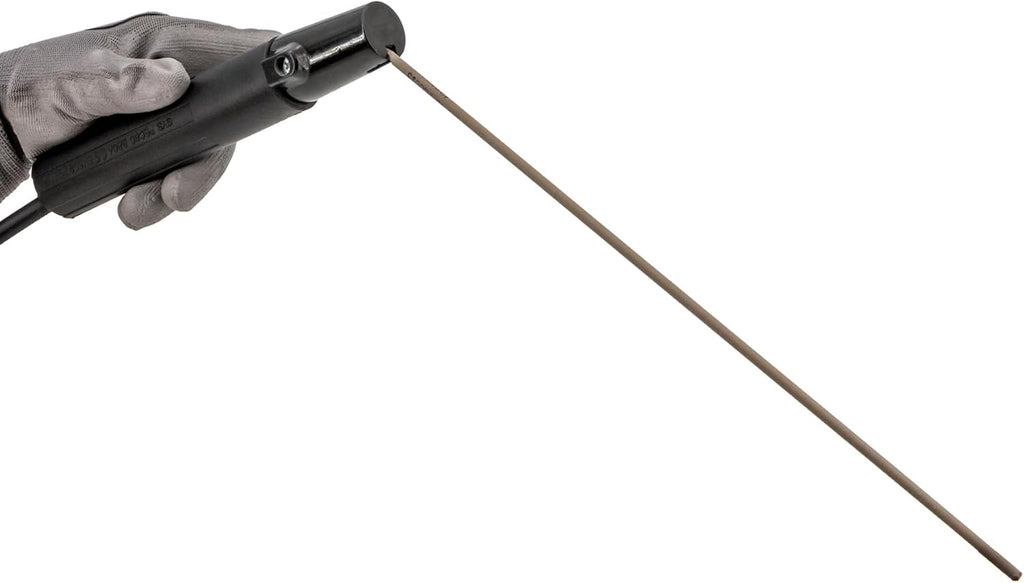

• Electrode holder with cable (1.6 m, 10 mm²)

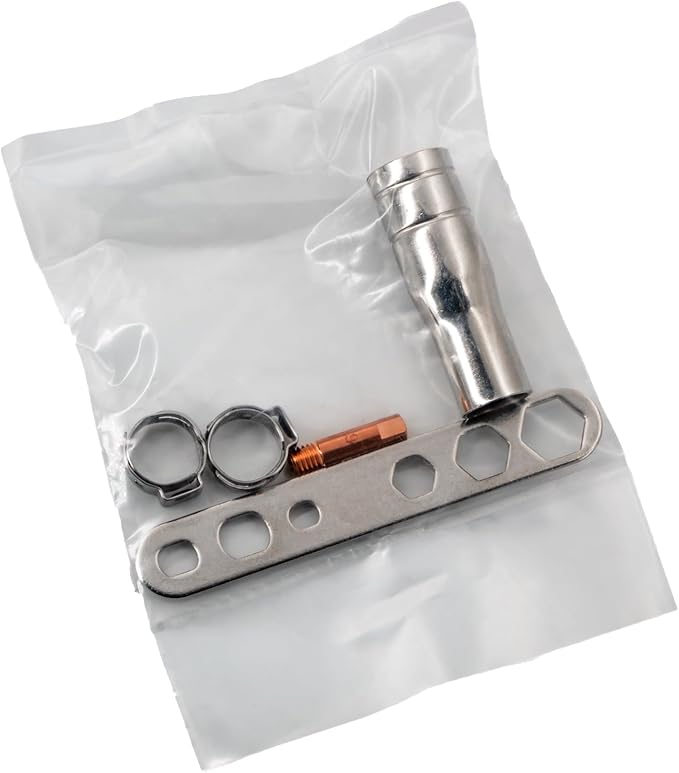

• Accessories: Contact pipe 0.9 mm, "gas" nozzle for cored wire welding, contact pipe wrench, gas hose 1 m, 2 hose clamps for gas pipe

Technical Specifications
