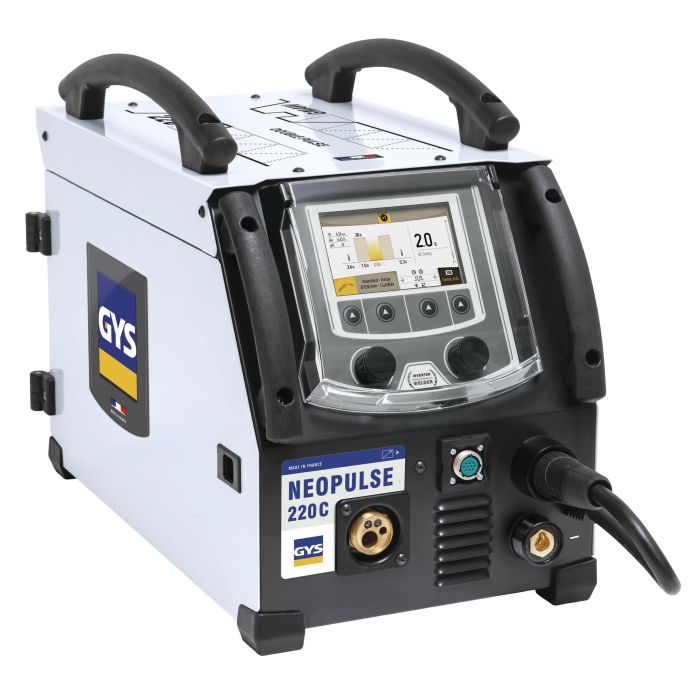

The NEOPULSE 220C is designed for the highest performance level featuring numerous synergic curves and exceptional arc quality. Includes a digital interface which allows easy modifications of the welding parameters.
Features
- Multi process welder: MIG/MAG, MMA DC, TIG DC Lift
- Smart - synergic mode, simply select the material/gas combination and wire diameter and the neopulse works out the optimal welding conditions.
- Accurate calibration of the wire feed speed to adjust the displayed voltage measurement and to refine the energy calculation
- Includes traceability of welding steps, cord by cord, during industrial manufacturing
- Maximum productivity - 4 microprocessors, high duty cycle, 4 roll wire feeder
- Robust and mobile
Specifications
- Input Voltage - 230V
- Amperage - 16A
- Amp range - 10-220A
- Wire Feed Type - 4 roll
- Wire Diameter Range - Steel 0.6-1.0mm, Aluminium 0.8-1.2mm
- Duty Cycle at 40C - 150A @ 60%, 130A @ 100%
- Wire Reel Capacity - 5KG
- Warranty - 2 Years
- This package is supplied without accessories
Brand GYS GYS Offer No Is Laser Product No Max Weldable Thickness 3MM, 5MM, 8MM Input Voltage 230V Warranty Period 2 Year Max Wire Reel Capacity 5KG
Key Features
- 8MM maximum weld thickness on mild steel
- 10A - 220A output
- Etig mode
- Internal calibration
- Pulse & double pulse
- 230V input supply
- Duty cycle - 60% @ 150A
- 2 year warranty
