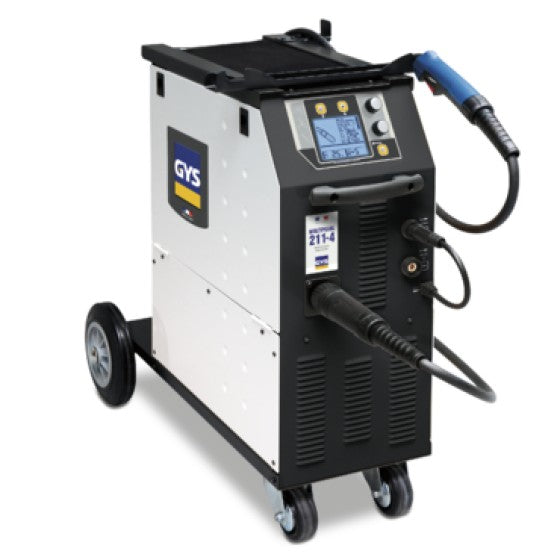

Introducing the MULTIPEARL 211-4: A versatile 4-in-1 power source redefining welding capabilities. Designed for MIG/MAG (with or without gas), TIG DC, and MMA welding, it delivers precision and adaptability in every project. Featuring nine welding synergies and advanced PFC/FV technology, it ensures optimal performance and energy efficiency. From intricate TIG welds to robust MMA applications, this powerhouse excels in all positions, making it indispensable for workshops where quality and versatility are paramount.
Package Includes
- MULTIPEARL 211-4
- 3 MTR Mig Torch
- Earth Cable
- Electrode Cable
Features
MIG-MAG Welding
- Compatible with 4 roller motors for ø 200 and ø 300 mm reels.
- Manual or synergistic adjustment available.
- Features SPOT and DELAY functions.
- Welds sheets ranging from 0.6 to 6 mm thick.
- Supports various types of metal and cored wire.
- Suitable for welding in all positions.
FV Flexible Voltage Power Factor Correction
- Saves up to 30% energy.
- Ensures stable current supply and suppresses peaks.
- Compatible with 230V-16A or 110V-32A plugs.
- Resistant to voltage variations up to 400V.
MMA Welding
- Welds various types of coated electrodes up to ø 5mm.
- Adjustable Hot Start and Arc Force for ignition and arc length regulation.
- Anti-sticking feature reduces electrode sticking risks.
Synergic Features
- Automated wire speed and tension calculation based on wire type, diameter, thickness, gas, and welding position.
- Manual adjustment options for wire speed and arc length.
- Synergy pre-sets for simplified operation, with "M" suggested.
Technical Spec
Input Supply: 110V
- Fuse Amps: 32A
- MMA Amperage Range: 20-130A
- TIG Amperage Range: 20-160A
- MIG Amperage Range: 20-150A
- 60% Duty Cycle: 110A
- Duty Cycle: 150A @22%
- Dimensions / Weight: 41 x 73 x 77 cm | 27Kg
- Generator Requirements (+/-15%): 7.5kW | 9kVA
Input Supply: 230V 1
- Fuse Amps: 16A
- MMA Amperage Range: 20-200A
- TIG Amperage Range: 20-200A
- MIG Amperage Range: 20-200A
- 60% Duty Cycle: 130A
- Duty Cycle: 200A @ 20%
