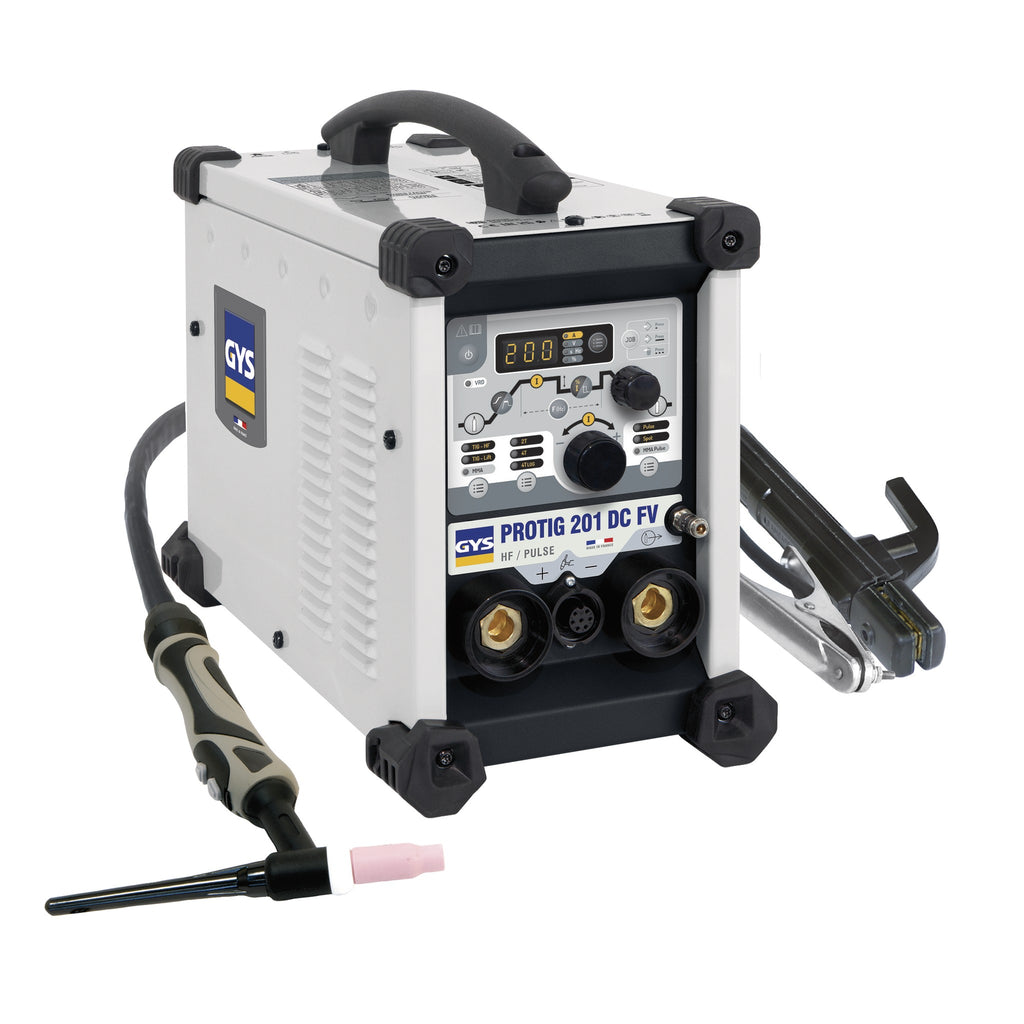

Meet the GYS PRO TIG 201 DC FV, a heavy-duty 200A TIG welder built for versatility and performance. This welder operates flawlessly on both 110V and 230V power sources, making it ideal for diverse job sites. With HF start, TIG pulse functionality, and flexible voltage/PFC technology, it's perfect for generator use and weak mains power.
The GYS PRO TIG 201 DC FV excels in versatile DC TIG welding, making it an ideal choice for welding various ferrous metals like steel, stainless steel, copper, and alloys. Its intuitive control panel simplifies adjustments, offering user-friendly pre-gas/post-gas settings and welding parameter control. The MMA mode is perfect for steel, stainless steel, cast iron, and electrode welding, including pulsed MMA for precision. This welder's memory functionality allows for the storage of up to 50 programs per process, ensuring quick access to preferred settings. Monitor your welding progress with the included LCD display. Discover the GYS PRO TIG 201 DC FV for exceptional welding performance and versatility.
Package Includes
- 4-Metre TIG Torch
- 3-Meter Electrode Holder Cable
- 3-Metre Work Return
Features
- Versatile DC TIG Welding: Capable of welding various ferrous metals, including steel, stainless steel, copper, and alloys.
- Intuitive Control Panel: Easy adjustment of pre-gas/post-gas, welding parameters, and more using a user-friendly touch-button and knob interface.
- MMA Mode: Enables welding with steel, stainless steel, cast iron, and different types of electrodes, with pulsed MMA functionality for precision.
- Memory Functionality: Stores up to 50 programs per process for quick access to preferred welding settings.
- LCD Display: Real-time monitoring of welding progress, including current and voltage, during and after welding (WPS/PQR).
- High-Frequency Start: Allows for a clean, uncontaminated arc initiation when starting the welding process.
- LIFT TIG Option: Ideal for situations with sensitive nearby equipment; start the arc by touching the tungsten electrode to the workpiece and lifting.
- Trigger Control Options: Choose between 2T (press to start and release to finish) and 4T (press to start and press again to finish) modes, with 4T Log enabling easy switching between preset welding intensities.
- Optimized DC TIG Welding: Ensures optimum arc stability and constant current in all positions, with TIG DC Pulse controlling weld puddle temperature for thin sheets.
- SPOT Welding: Fast and precise spot welding, ideal for thin sheet metal work.
- Automatic Torch Detection: Compatible with latch torches and double button torches for added convenience.
- MMA Welding Features: Adjustable Arc Force for increased welding current in challenging conditions, Anti-Sticking for easier arc starting, and Hot Start for improved arcing with various metal types.
- Rugged Build: Reinforced body and shockproof rubber pads on corners for durability.
- Lightweight and Compact: Weighing just 10 kg, it's easy to transport and move on-site.
- Overvoltage Protection: Safeguarded against overvoltage up to 400V (PROTEC 400).
- Connectivity: Equipped for remote control, allowing manual or pedal control.
Technical Spec
- Model: GYS PROTIG 201 DC FV
- Amps Range – TIG: 10 – 200A (110V/230V)
- Amps Range – MMA: 10 – 200A (110V/230V)
- TIG Duty Cycle @ 60% (40ºC): 115A
- MMA Duty Cycle @ 60% (40ºC): 90A
- Input Fuse: 16A (230V) | 32A (110V)
- Minimum Generator Size: 7.5 kW
- Dimensions: 410 x 200 x 230mm
- Dinse Plug Size: 35 – 50
- Approximate Weight: 10 kg
