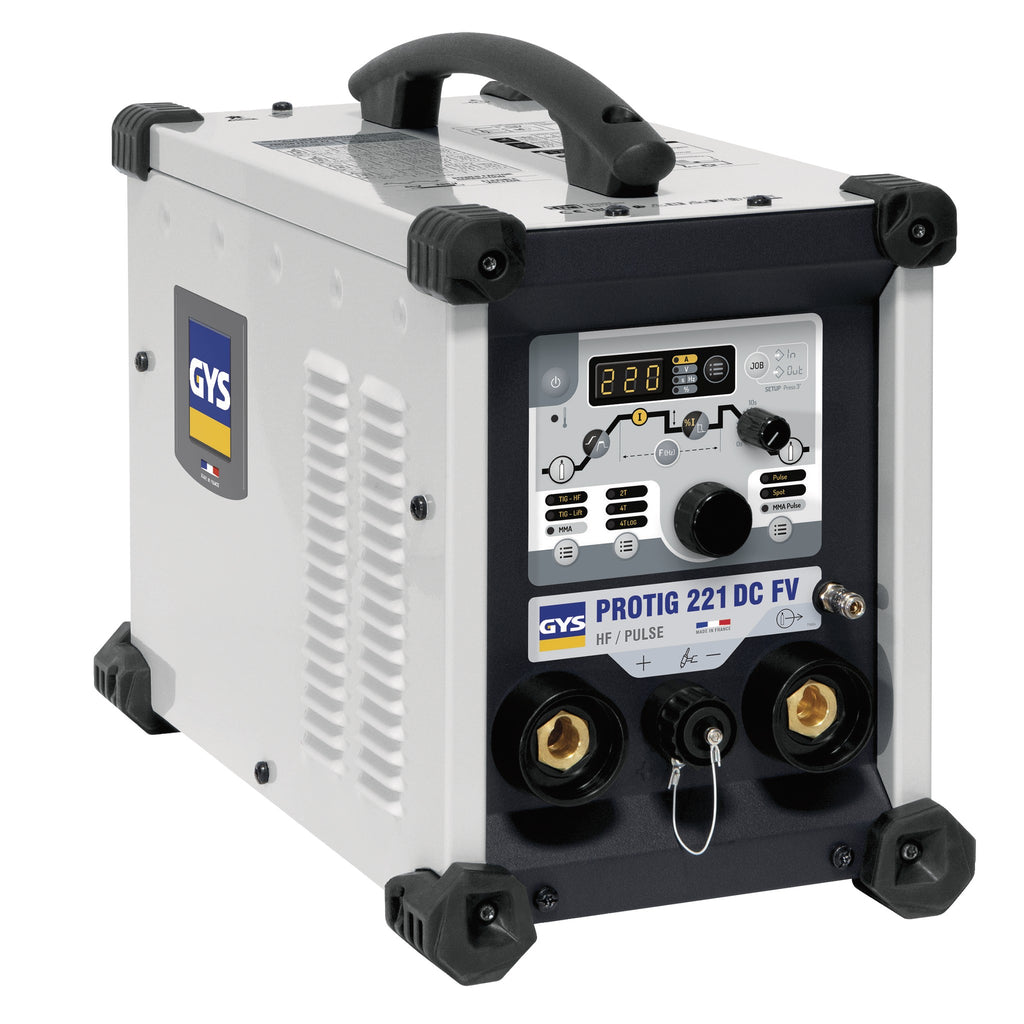

GYS 070905 ProTig221 DC FV Tig Welder Package 110/240v

A versatile single-phase inverter welder designed for TIG and MMA welding. This welder offers flexible voltage options (110V/240V) and is perfect for on-site work, thanks to its robust yet lightweight construction. Made in France, the GYS PROTIG 221 boasts 220 amps DC welding current, microprocessor control, and a digital display for easy welding parameter adjustment. With features like pre-flow gas, memory capability, and MMA pulse functionality, it's a top choice for professional welders looking for advanced welding solutions.

Package Includes

• 4-Metre TIG Torch
• 3-Meter Electrode Holder Cable
• 3-Metre Work Return

Key Features

• Versatile Welding Modes: Capable of both TIG and MMA (stick) welding, providing flexibility for various welding applications.
• Flexible Voltage Options: Supports both 110V and 230V input power supplies, making it suitable for different job sites and power sources.
• Portability: Robust yet lightweight construction ensures ease of transportation and suitability for mobile welding tasks.
• Advanced TIG Features: High-frequency start for precise TIG welding, along with pre-flow and post-flow gas settings, up/down slope controls, and 2T/4T torch trigger modes for superior TIG welding performance.
• MMA Welding Capability: Versatile MMA mode enables welding on a wide range of materials, including steel, stainless steel, cast iron, rutile, and basic electrodes. MMA pulse functionality facilitates vertical up and pipe welding.
• Power Efficiency: Can operate from a standard 13A domestic 240V power supply and even on extension leads up to 100 meters in length due to power factor correction (PFC) technology.
• Professional Quality: Part of the GYS professional range, manufactured in France, and offering a robust 220 amps DC welding current.
• User-Friendly Interface: Microprocessor-controlled with an intuitive digital control panel, making it easy to adjust welding parameters.
• Digital Display: Provides clear current and voltage settings for precise control during welding.
• Memory Functionality: Allows users to store up to 10 pre-set programs per welding process, facilitating easy recall of previously used settings for increased efficiency.

Technical Specifications

• Model: GYS TIG 221 DC FV
• TIG Amps Range: 5-220 (230V), 5-180 (110V)
• MMA Amps Range: 10-200 (230V), 10-140 (110V)
• TIG Duty Cycle @ 60% (40ºC): 165A (230V), 125A (110V)
• MMA Duty Cycle @ 60% (40ºC): 135A (230V), 120A (110V)
• Input Fuse: 13A (230V), 32A (110V)
• Min Generator Size: 8.5kW
• Dimensions: 420 x 350 x 230mm
• Dinse Plug Size: 35-50
• Approximate Weight: 14kg
