RW300-450-PP-39-F-E Redrock 300t Conventional Welding Rotator Set

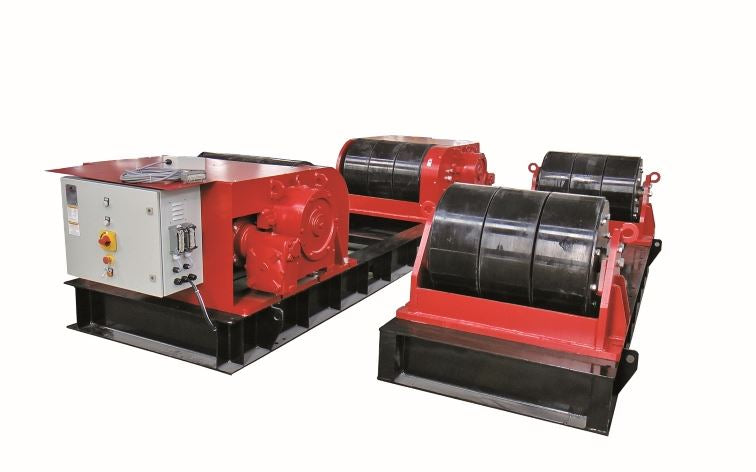

The Redrock 300t Conventional Welding Rotator Set is heavy-duty fabrication equipment, engineered specifically for the precision of large-scale cylindrical work-pieces. This conventional turning roll set is designed to meet and exceed those requirements with reliability and control.
This system, comprising one Drive Rotator and one Idler Rotator, and offers a robust total rotation capacity of 450 tonnes and a specified working load capacity of 300 tonnes, making it an indispensable asset for projects involving massive pressure vessels, heat exchangers, and industrial pipes. The design ensures stable, concentric rotation across a vast range of diameters, from a minimum of ø895 mm to an impressive maximum of ø9531 mm.
Equipped with highly durable Polyurethane tyres, the Redrock rotator set prevents surface marking on sensitive materials while maintaining exceptional grip and load distribution. Precision welding is achieved through advanced electronic speed control, delivering a consistent and infinitely variable roller speed range from 125 mm/min up to 1250 mm/min (5~50Hz). This superior control is critical for maintaining optimal travel speed required for automated or manual welding processes, guaranteeing superior weld quality and reductions in production time and material waste.
Features
- Component Setup: Consists of one powered Drive unit and one passive Idler unit.
- Individual Load Capacity: 150 metric tonnes per unit (Drive/Idler).
- Total Rotation Capacity: 450 metric tonnes maximum turning capacity.
- Minimum Vessel Diameter: Φ895 mm (at a 90° included angle, with a centre-to-centre distance of 1100 mm).
- Maximum Vessel Diameter: Φ9,531 mm (at a 45° included angle, with a centre-to-centre distance of 3,900 mm).
- Tyre Type & Sizing: Highly durable Polyurethane tyres measuring Φ660 mm x 825 mm, featuring a Shore 'A' hardness of 90-95.
- Roller Speed Variation: Infinitely variable between 125 to 1,250 mm/min (operating at 5 to 50 Hz frequency)
- Manual Wheel Centre Adjustment: Operators can adjust the wheel bracket distances manually along the frame bed, making it highly customisable and rigid for fabrication shops dealing with standardised production lines or consistent work-piece diameters.
- Heavy-Duty Traction: The replaceable polyurethane tyres are mounted directly onto cast steel drums. This layout provides maximum operational lifespan and prevents work-piece slippage during circumferential welding.
- Low-Voltage Operator Controls: The set comes standard with a low-voltage remote pendant. This gives operators immediate control over forward, reverse, stop, and emergency stop, alongside a precision potentiometer to fine-tune the rotation speed. [1]
- Optimised Weld Integrity: By delivering a uniform, vibration-free rotation speed, this system minimises weld defects, increases arc-on times, and drastically reduces material handling hazards in heavy industrial settings like wind tower or pressure vessel manufacturing
| Technical Data |
| Cat | 300T |
| Model | RW300-450-PP-39-F-E |
| Item | Drive / Idler Rotator Set |
| Load Capacity Each | 150T |
| Total Rotation Capacity | 450T |
| Vessel Size Min | Φ895 mm at 90° included angle, at C-C 1100 mm |
| Vessel Size Max | Φ9531 mm at 45° included angle, at C-C 3900 mm |
| Tyre Type & Size | Polyurethane Φ660 mm x 825 mm, Shore ‘A’ 90-95 |
| Roller Speed | 125~1250 mm /min at 5~50 Hz |
