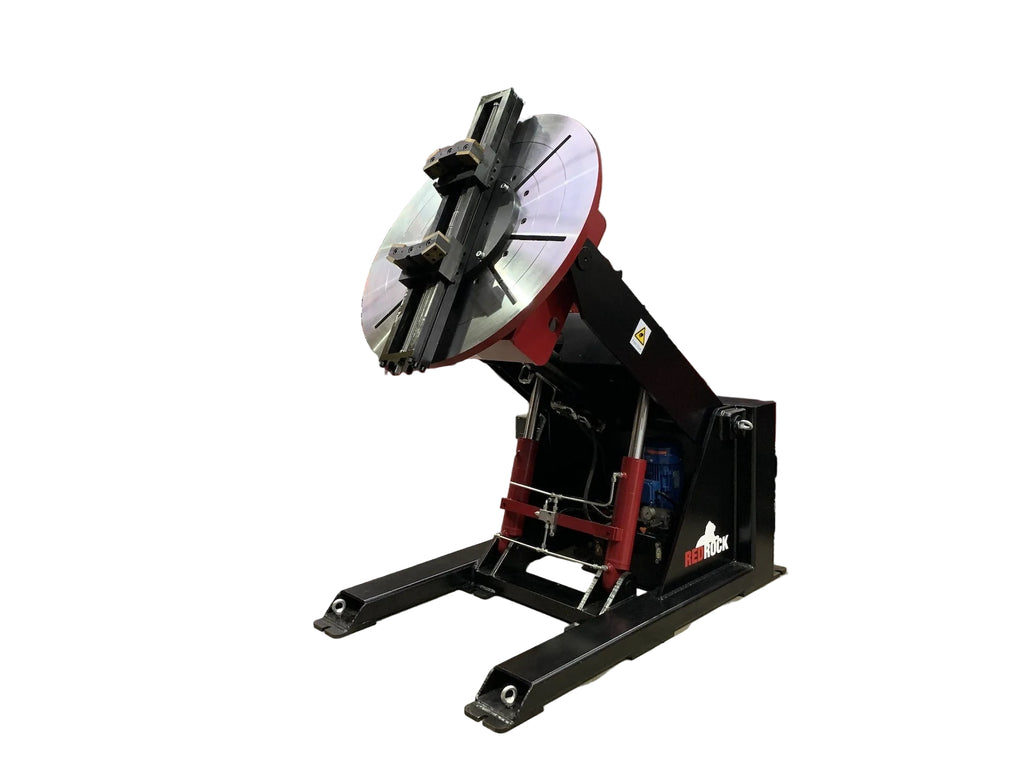

WHP-5 Redrock 5t Hydraulic Welding Positioner
The Redrock 5t 3 Axis Hydraulic Welding Positioner is a heavy-duty Redrock 3 axis hydraulic welding positioner designed for controlled work-piece rotation, tilt, lift and lower movement during welding and fabrication. It helps operators place larger components at a more accessible welding angle, supporting improved weld quality, reduced handling time and safer production flow.
Built for demanding fabrication environments, this 5t model combines 0.1-0.5r pm at 10-50Hz rotation control, 0-130° tilt movement and a robust Ø1800 mm work table. It is suited to workshops and production facilities that need smooth, precise movement when positioning substantial components for welding.
Features
- 3 axis hydraulic positioning: Rotates, tilts, lifts and lowers work-pieces for improved weld access
- Heavy-duty capacity: 5MT at 150mm turning capacity and 5MT at 300mm tilting capacity
- Smooth rotation control: 0.1-0.5rpm at 10-50Hz rotation speed for controlled positioning
- Industrial drive system: 3.75kW AC Inverter for reliable movement control
- Welding-ready earthing: 800A earthing provision for fabrication use
| Technical Data |
| Cat | POS005 |
| Model | WHP-5 |
| Turning Capacity | 5MT at 150mm |
| Tilting Capacity | 5MT at 300mm |
| Rotation Speed / Power | 0.1-0.5rpm at 10-50Hz |
| Tilt Range / Power | 0-130° |
| Rotation Drive Control | 3.75kW AC Inverter |
| Table Size | Ø1800mm |
| Earthing | 800A |
