Instagrid Link 230V & 110V Powerful Battery Operated Generator Systems

  • Sale
  • Regular price £785.00

Excludes VAT

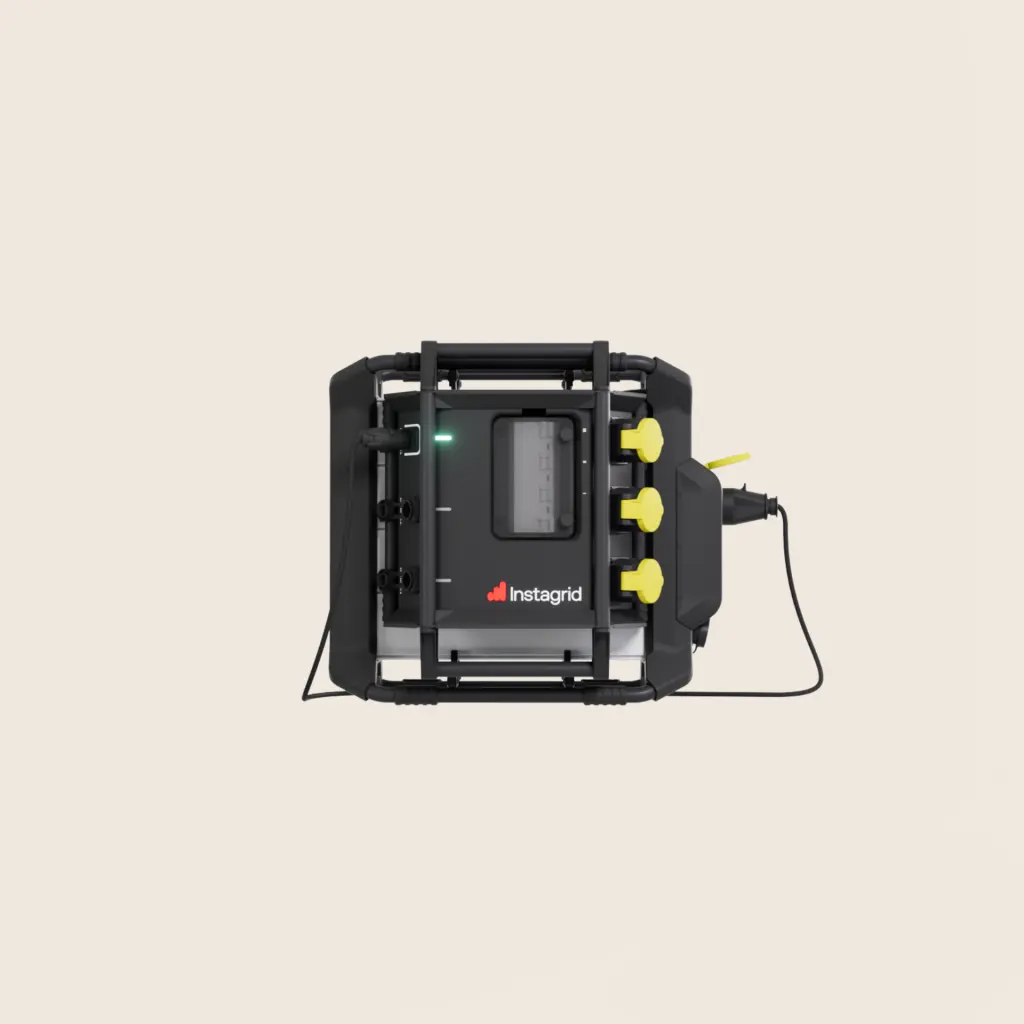

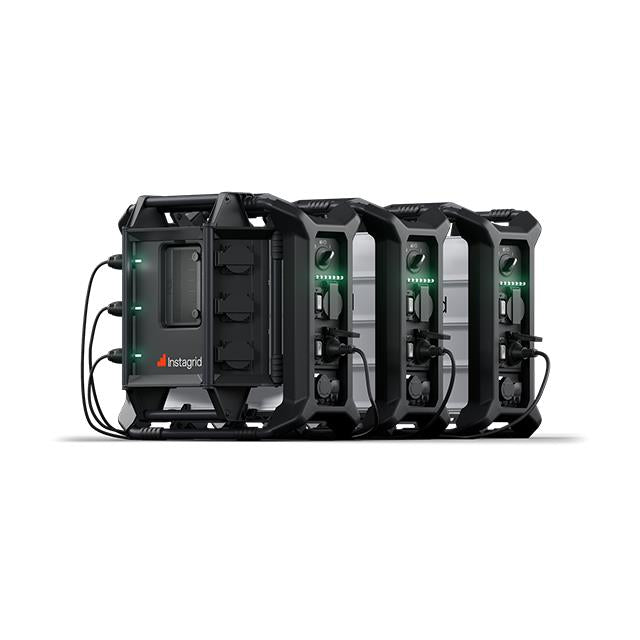

Instagrid Link Max 230V & 110V Systems

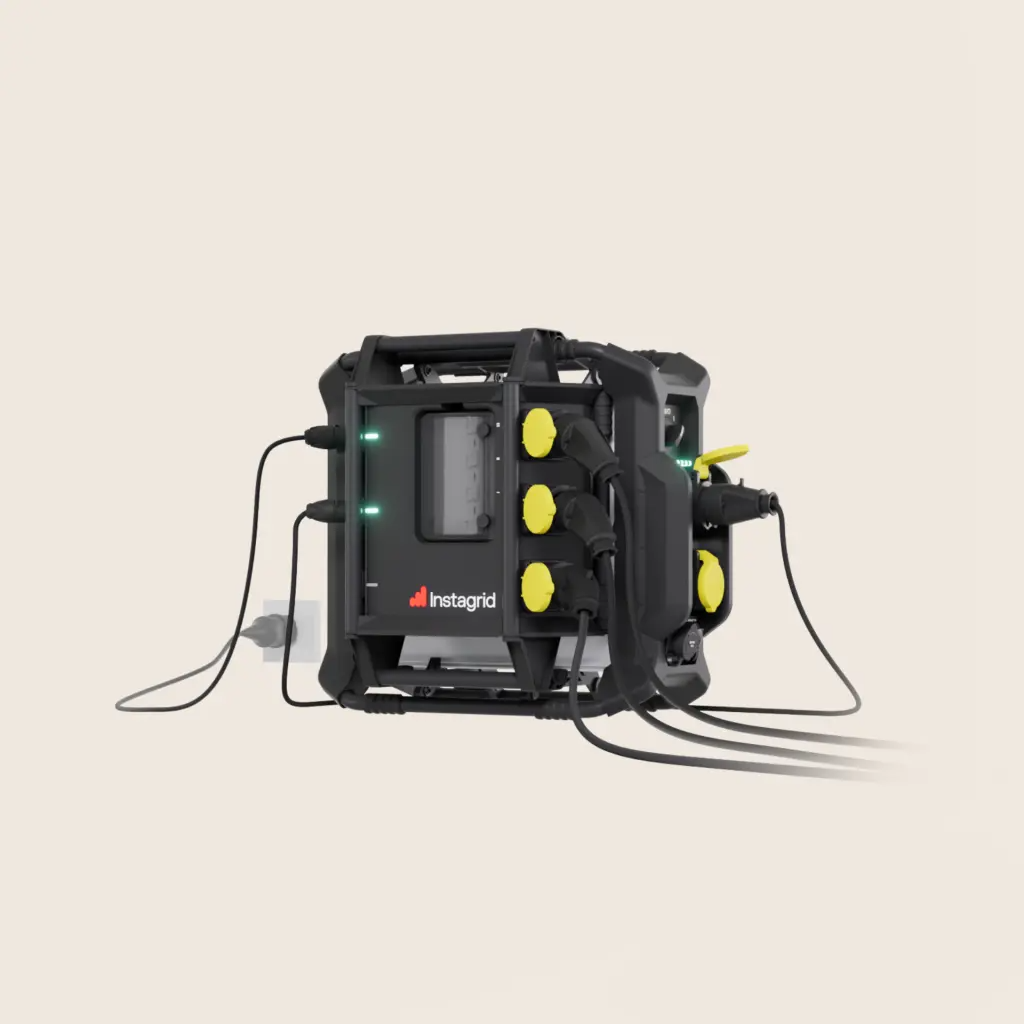

Extend the features of your portable power supply, A smart power distributor to enable new and powerful applications.

There are many mobile battery systems on the market, and they are more or less built the same way: a bank of batteries connected to a central inverter. We do things differently. We break down this central inverter into multiple micro-level inverters, each connected to an individual battery module. Using software and electronics, these modules work together to generate a pure AC sine wave.

This innovation is a significant advance in power conversion technology and enables Instagrid products to be drastically smaller, lighter, and more powerful than other battery systems. Instagrid Portable Power Supply Systems are high-performance battery solutions designed for mobile and remote power applications and present a modern alternative to generators by being portable, emission-free, and capable of delivering stable, high-power energy.

Suitable for use indoors or outdoors in all weather conditions (IP 44 rating), the Instagrid GO can be carried in one hand, 230V & 110V of construction site power.

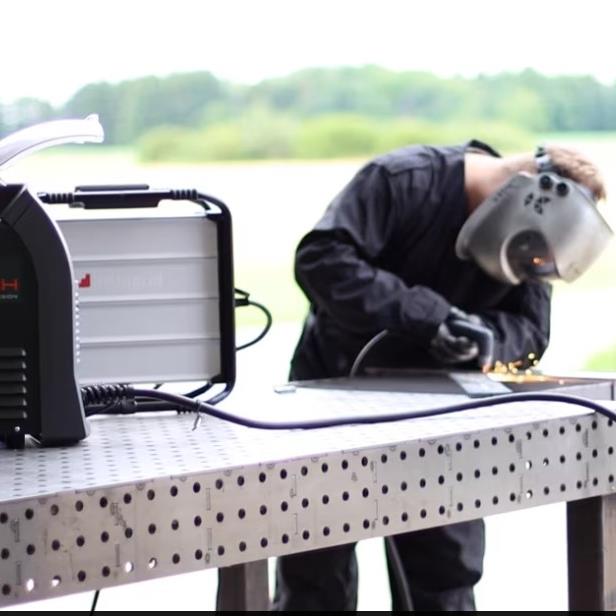

Run more devices - Use several high-powered tools at the same time

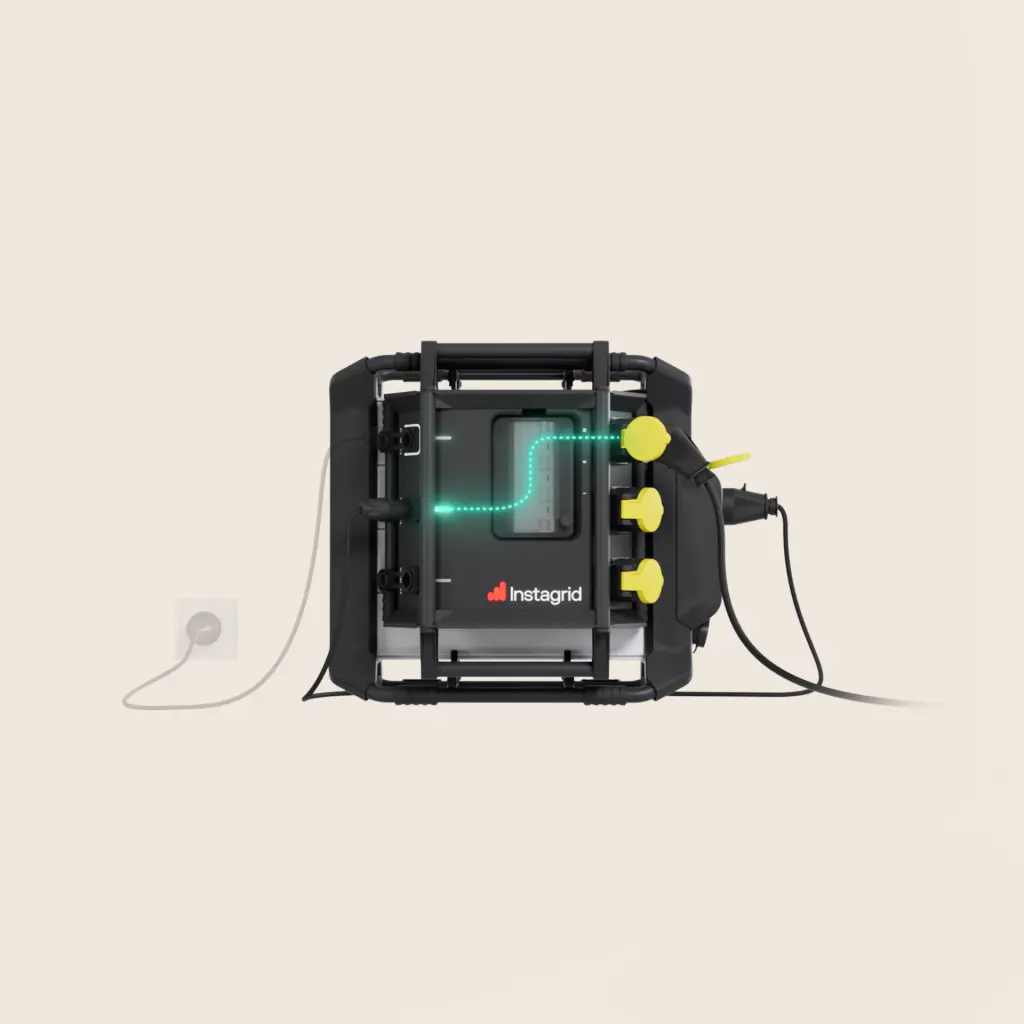

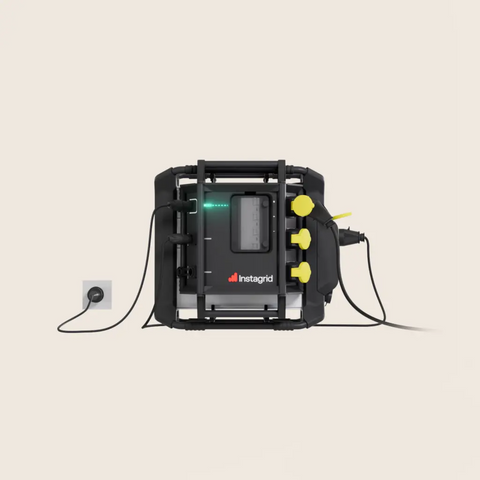

Mission-critical power supply - Set up a mission-critical power supply with no interruptions

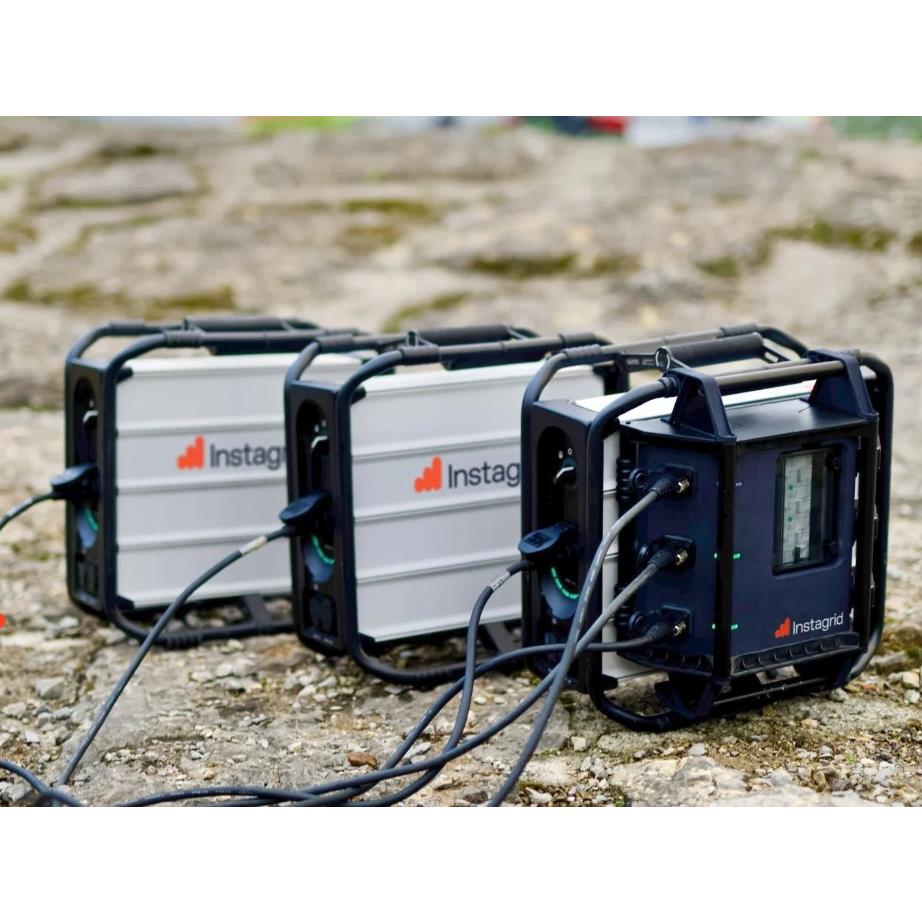

Increase capacity x3 - Empowering longer-lasting applications

General information
Weight - 4.5 kg
Size - 400 x 310 x 140 mm
IP Class - IP54
Protection class - Class I provided with Class II construction
Ambient temperature - - 15 °C to 40 °C

Receptacles

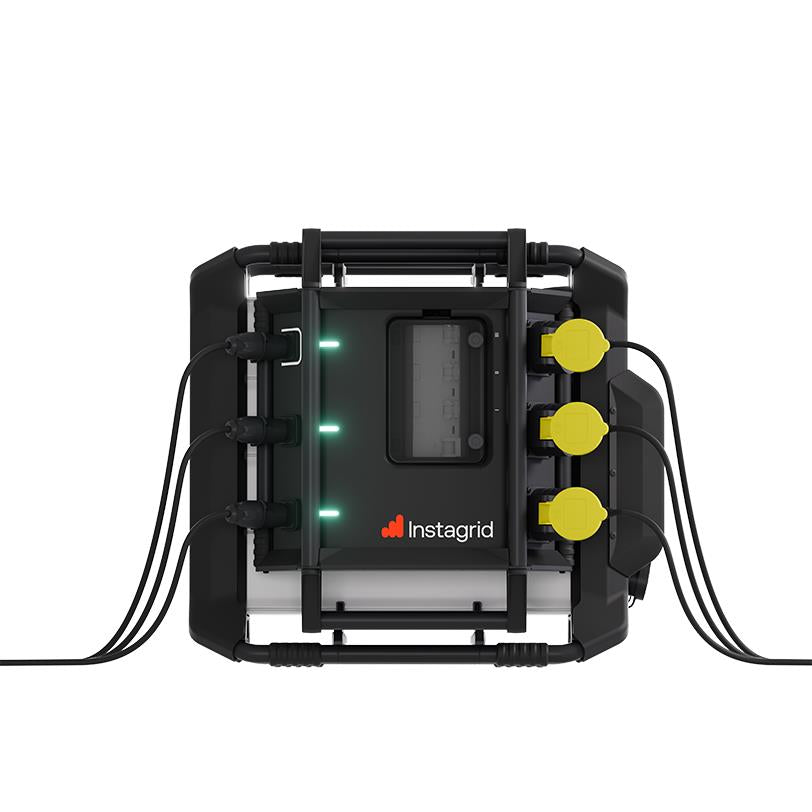

Input receptacles - 3 x Neutrik powerCON TRUE1 TOP

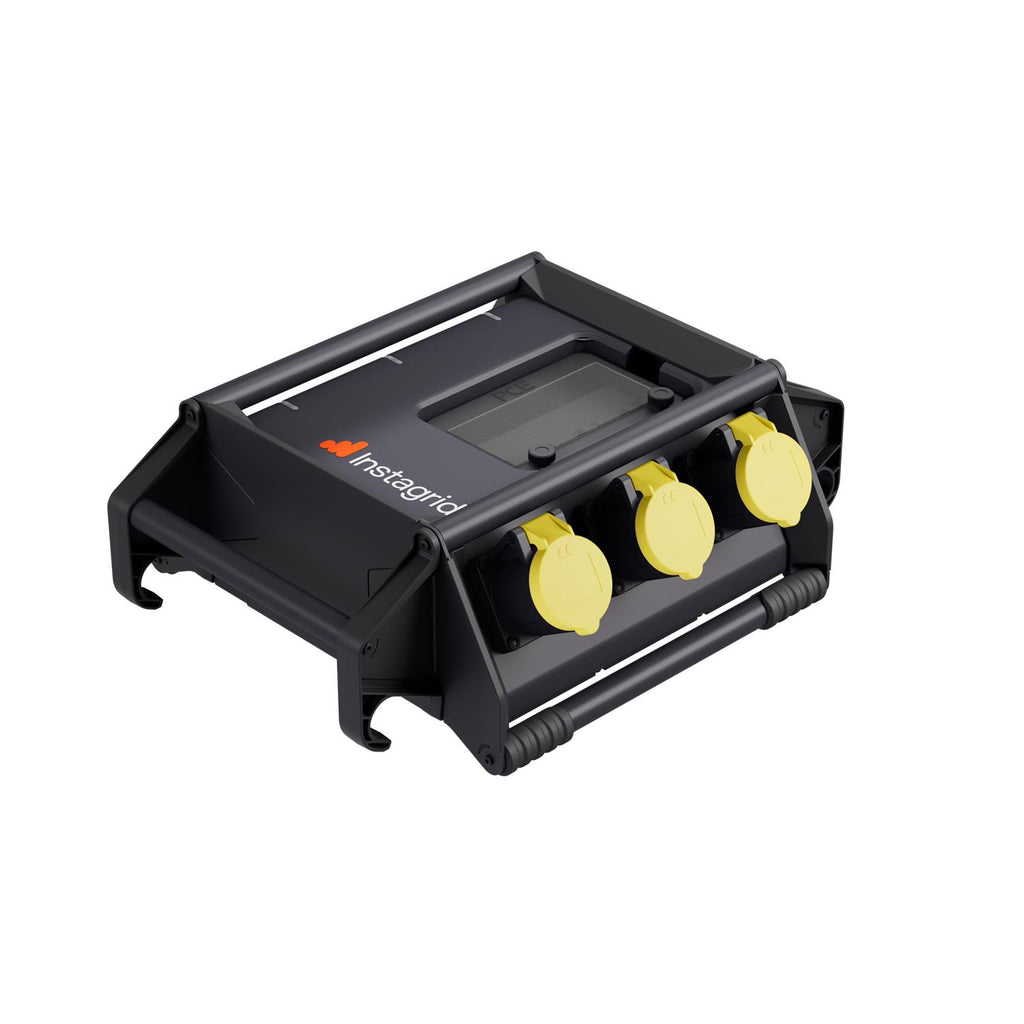

Output receptacles - 3x CEE 16 A

Operation
Nominal voltage output - 230 V AC / 50 Hz
Nominal output current - 16 A
Nominal output power - 3600 W
Switching time - < 20 ms

Protection
Residual circuit device - 3 x 1P+N RCD type A, 30 mA
Circuit breaker - 1P 16 A (tripping characteristic C)
