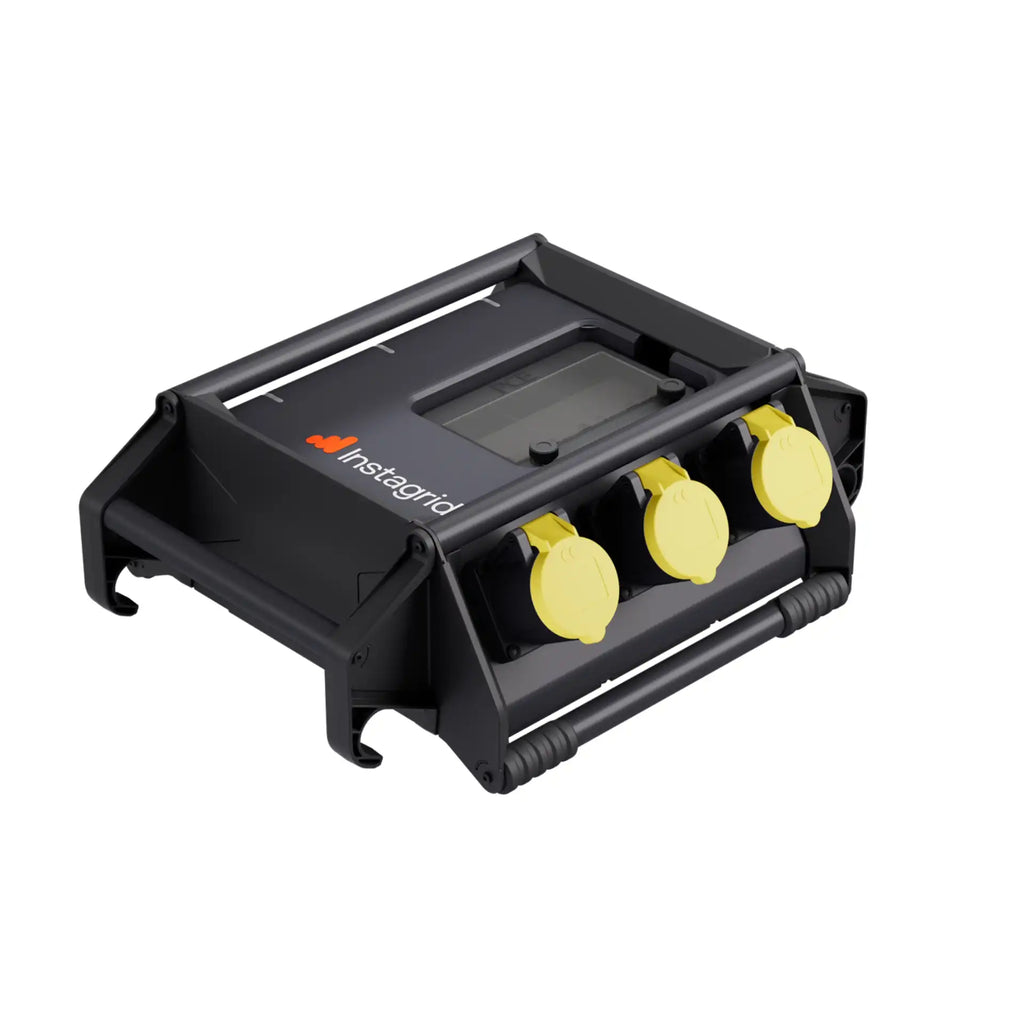

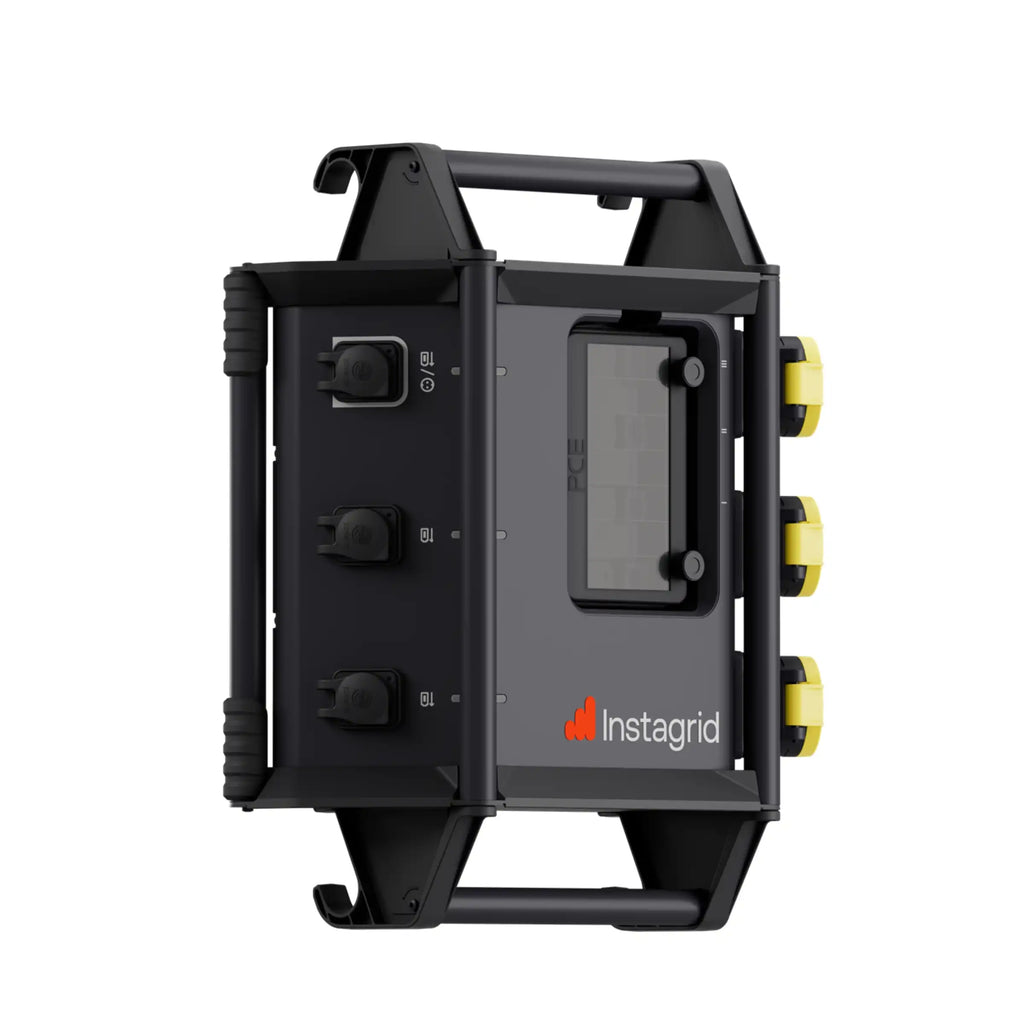

Instagrid LINK230V/LINK110V Instagrid Link 230v/110v
The Instagrid Link Portable Battery System is an innovative power distribution hub engineered to significantly extend the capabilities and operational duration of your portable power supply. Designed for the most demanding professional environments, this robust and intelligent system ensures a mission-critical, uninterrupted power source for a wide array of high-wattage tools and equipment, from heavy-duty grinders and impact wrenches to sensitive film lighting and communications gear. As an indispensable asset for construction professionals, event technicians, field engineers, and skilled trades, the Instagrid Link revolutionises how you power your essential tools, offering unparalleled flexibility, enhanced capacity, and seamless power management. Its advanced “Island Mode” and “Hot Swap” functionality guarantee continuous operation, eliminating costly downtime and maximising productivity on every demanding project, regardless of grid access.
- Maximised Productivity: Eliminates power interruptions and extends operational time, allowing for continuous work and reduced downtime on critical projects.
- Enhanced Operational Flexibility: Enables use of high-powered tools and equipment in virtually any location, independent of grid access or noisy, fume-emitting generators.
- Cost Efficiency & Sustainability: Reduces reliance on expensive, fuel-dependent generators, lowering operational costs, maintenance, and contributing to a cleaner, quieter work environment.
- Superior Reliability & Safety: Delivers stable, consistent power crucial for precision work and protects sensitive equipment, while integrated safety features enhance user security.
- Optimised Resource Management: Gain valuable insights into power usage and manage your equipment fleet effectively with intelligent app connectivity.
Features
- Extended Portable Power Capabilities: Elevates the functionality of existing portable power units, enabling a wider range of high-powered applications across diverse industries.
- Seamless Hot Swap Functionality: Facilitates uninterrupted operation by allowing hot-swapping of power sources, ensuring extended runtimes without any power interruptions.
- Tripled Capacity: Significantly boosts overall power capacity by up to three times when paired with Instagrid ONE units, empowering longer-lasting applications and more extensive projects.
- Mission-Critical Power Delivery: Establishes a highly reliable and continuous power supply, essential for sensitive electronics and power-intensive tools where stability is paramount.
- Simultaneous Device Operation: Designed to power multiple high-wattage tools concurrently, allowing professionals to operate their primary equipment alongside other vital tools on-site.
- Rugged and Portable Design: Compact and lightweight (4.5 kg) with an IP54 rating, offering robust protection against dust and splashing water, suitable for harsh outdoor and industrial environments.
- Advanced Connectivity (via Instagrid APP): Provides comprehensive fleet management, real-time notifications on unit status, and detailed usage statistics for optimised power deployment and operational insights.
- Versatile Output: Delivers reliable 230V AC / 50 Hz and 110V AC output with a nominal power of 3600W, accommodating a broad spectrum of professional equipment.
- Integrated Safety Mechanisms: Features robust protection including RCDs and circuit breakers (1P 16 A, tripping characteristic C) to ensure safe operation.
- Wide Operating Temperature Range: Functions effectively in ambient temperatures from -15 °C to 40 °C, ensuring performance in diverse climatic conditions.
Specifications
General-
- Weight: 4.5 kg
- Size: 400 x 310 x 140 mm
- IP Class: IP54
- Protection class: Class I provided with Class II construction
- Ambient temperature: – 15 °C to 40 °C

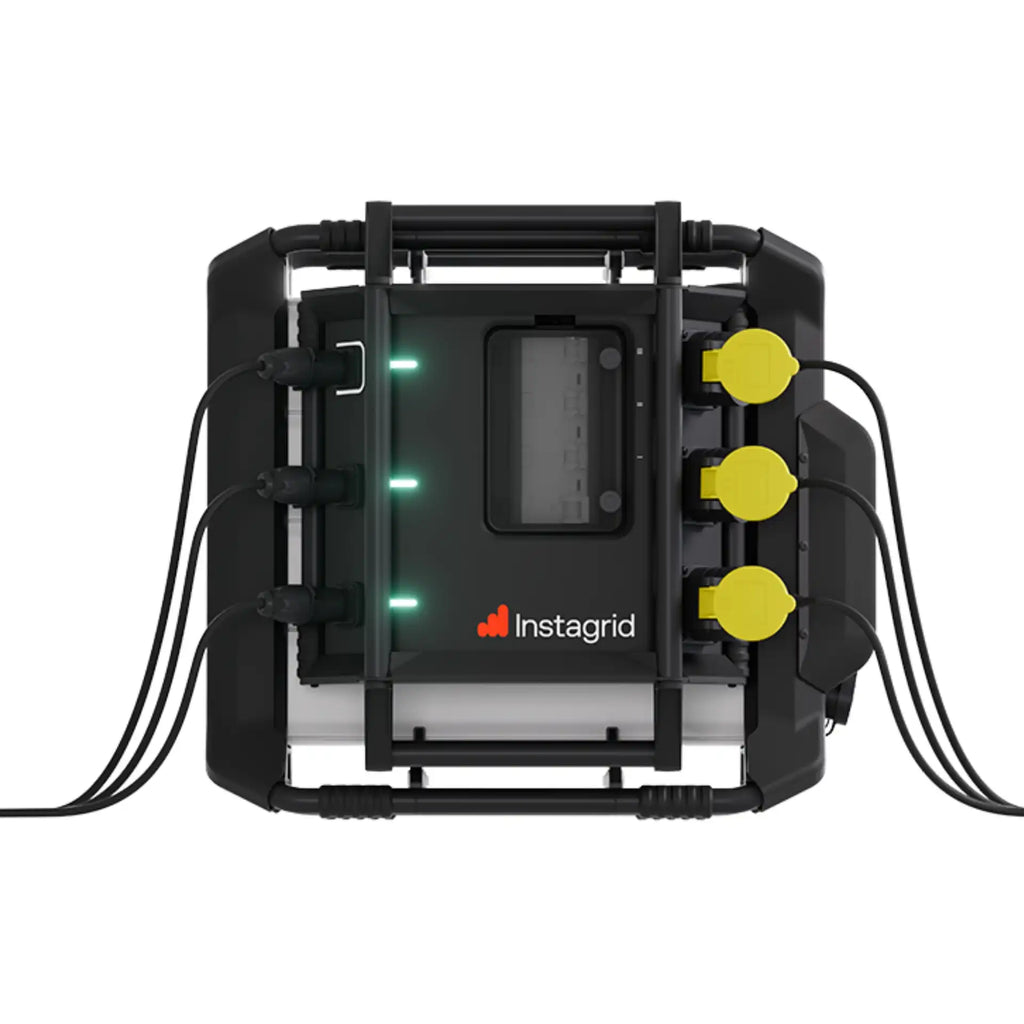

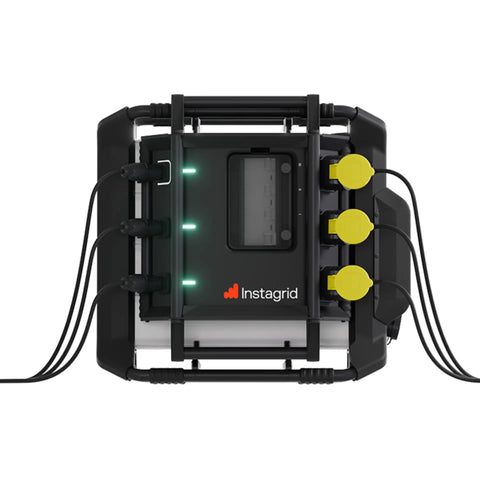

Receptacles-

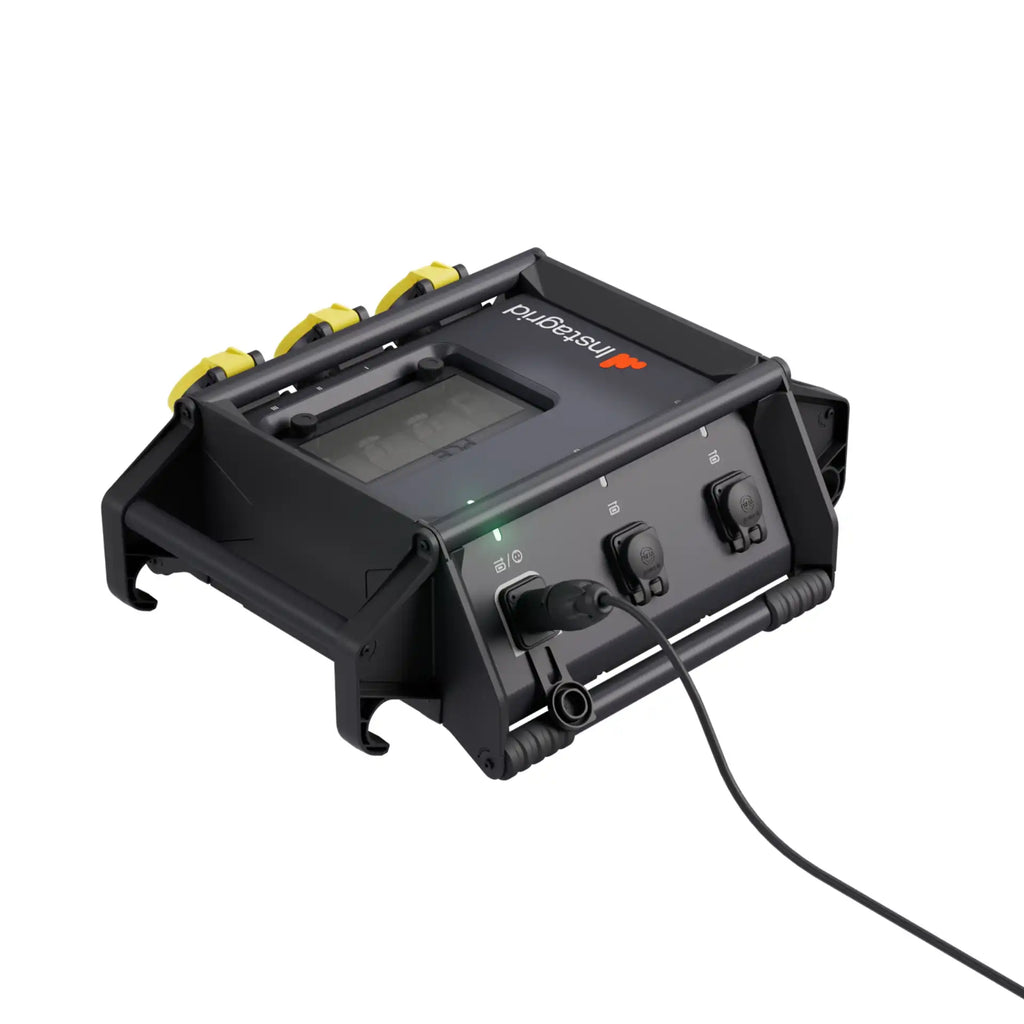

- Input receptacles: 3 x Neutrik powerCON TRUE1 TOP®
- Output receptacles: 3x CEE 16 A
Operations-
- Nominal voltage output: 230 V AC / 110V AC
- Nominal output current: 16 A
- Nominal output power: 3600 W
- Switching time: < 20 ms
Protection-
- Residual circuit device: 3 x 1P+N RCD type A, 30 mA
- Circuit breaker: 1P 16 A (tripping characteristic C)

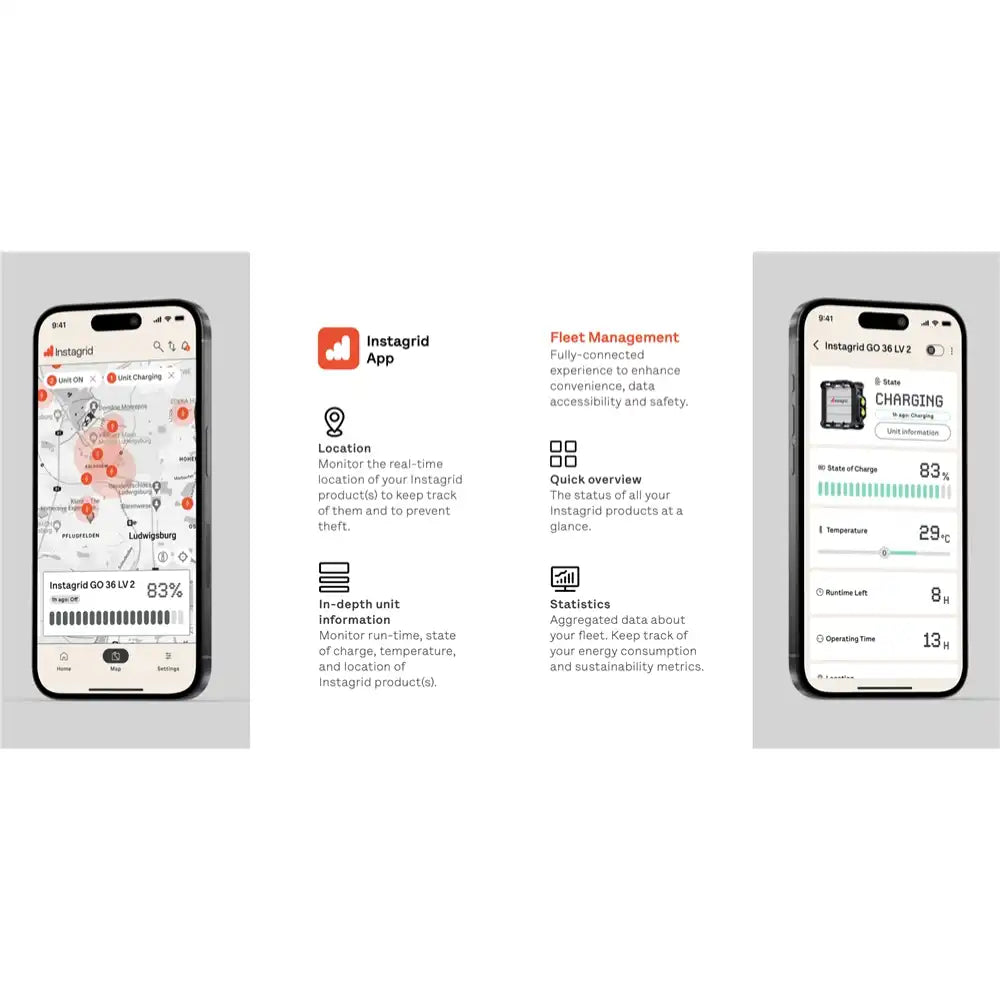

Mobile App
The Instagrid One is fully connectable to an intuitive mobile phone app to monitor real-time unit information. Quickly view the Instagrids state of charge, cell temperature, remaining runtime of the device you are powering, as well as many other metrics. An integrated GPS allows full tracking of the Instagrid battery packs’ location, to easily find the machine and protect against theft.
Manage your entire fleet with ease using the Instagrid APP — your centralized platform for firmware updates, system notifications, service insights, and location tracking. Whether you manage a few units or a large deployment, Instagrid gives you complete control, anywhere, anytime.
- Always Up-to-Date with the Latest Firmware
- Keep your fleet performing at its best. With automatic firmware updates, you gain access to the latest features, performance improvements, and security patches — all managed through the Instagrid APP.
- Advanced Location Tracking - Protect your investment with GPS and cell tower-based location tracking. Even in areas with poor GPS reception, our system uses cell triangulation for accurate location data.
- Real-time location sharing – Know exactly where your units are at all times
- Automatic tracking – Register your device via the Instagrid APP to enable tracking.
Continuous Monitoring
Ensure fleet visibility 24/7. As long as a unit is turned on and tracking is enabled, it will continuously share its location via our secure, cloud-based platform.
Full Product & Energy Data at a Glance
Key Performance Metrics
The Instagrid APP provides deep insights into every connected unit, including:
- State of charge – Real-time battery level and low-battery alerts
- Internal temperature – Detect overheating early and receive safety notifications
- Remaining runtime – Know how long each device will last based on current load
- Energy usage – Track energy consumption per session or over time
- Charge cycles & health – Monitor battery longevity and overall performance
- Active vs. idle time – Understand how each unit is being used.
Comprehensive Fleet Statistics
Get the data you need to optimize your energy use and reduce operational costs:
- Energy consumption reports – Track energy usage across your fleet
- Utilization rate – Measure how efficiently your units are being used
- Sustainability insights – View eco-impact metrics and promote greener operations
- Powerful Cloud-Based Fleet Intelligence
- Centralized Data, Smarter Decisions
At the core of the Instagrid ecosystem is the Instagrid APP, connecting all your units to a secure cloud platform. Data is collected in real time, enabling you to:
- Automate reports and analytics
- Track trends and usage patterns
- Simplify maintenance and troubleshooting
- Stay compliant with local privacy regulations
All data is encrypted, securely stored, and accessible whenever you need it.
Unlock the full potential of your portable power solutions with Instagrid’s smart fleet management system. From real-time tracking to energy insights — manage, monitor, and optimize with ease.
