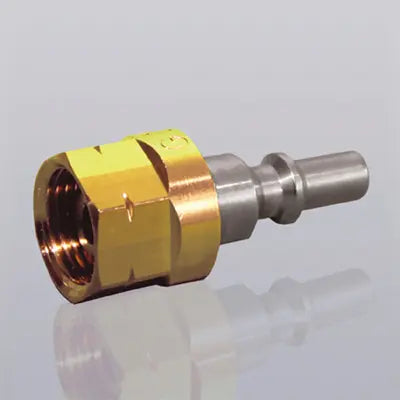

ISO Quick Couplings / Connector, Coupling Pin, Coupling Thread

GCE offer a New Range of Quick Couplings suitable for easy and quick connection to regulators, cutting & welding torches and gas hoses.

They are manufactured in accordance with EN561/ISO7289 standard. The couplings are made of brass and the hose pins made of stainless steel.

Features & Benefits

• Robust design - For heavy duty usage
• Colour coding - according to gas type
• Pull design - Easy connection without accidental disconnection
• Stainless Steel Coupling Pin - Longer life
• Gas cut-off - Automatically cut off gas flow when disconnected
• To Hat Seal - Gives an excellent sealing without any risks for leakage

Description

• Quick connection according to EN561 ISO 7289
• Standard hose connection according to EN 560.
• Stainless steel Coupling pin with colour coding by O-ring for better recognizing. According to ISO 7289.
• Colour coded sleeve for easy gas identification.
• Standard hose connection according to EN 560. Marking of thread dimension for easy identification.
• Hose nipples design according to EN 1256 available for most common sizes of hoses.

Combination Of Connections

The GCE range of quick couplings has several application possibilities. The type QC-010 is developed special for connection to regulators whereas the others can be used in connections between hoses and hoses to torches.

ISO CONNECTOR

ISO COUPLING PIN

 ISO COUPLING THREADED

Datasheet
