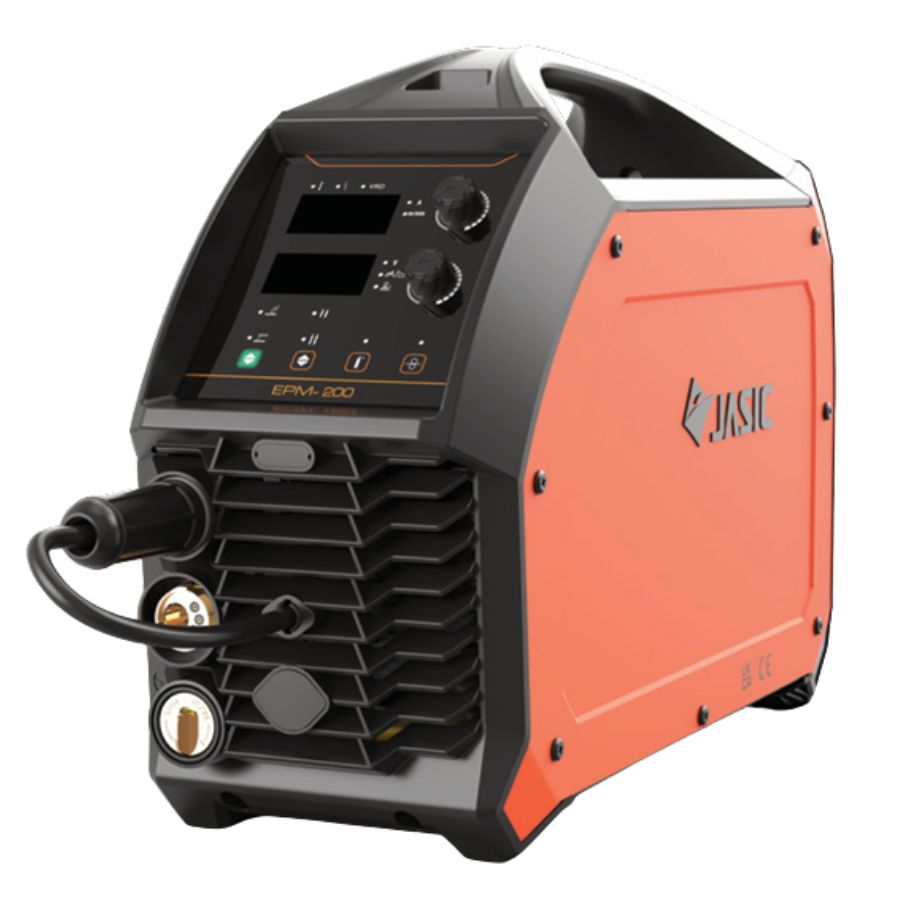

Jasic EPM-200 EVO Power Mig 200 230V

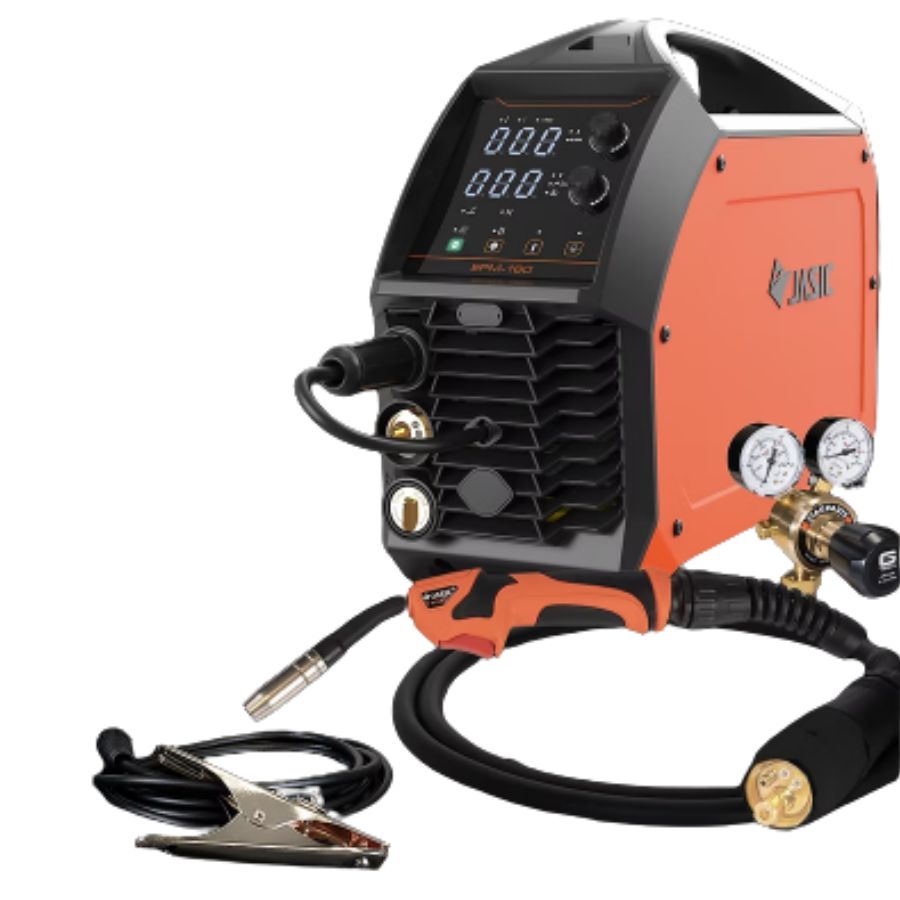

Jasic EPM-200 EVO Power Mig 200 230V c/w MIG Torch 3m, Regulator, Hose & Earth Lead

The JASIC EVO Power MIG 200 (EMP-200) is a high performance MIG welder designed for precise, efficient, and safe welding.  It has been introduced into the Jasic range to provide the same Jasic performance and reliability at an even better price point than the EVO PFC models.

So, what’s different?  The EVO Power MIG is a 230V machine, rather than a wide voltage like its bigger brother.  The interface does not have the same synergic control, but it does have the essential wire feed and voltage controls, with clear digital displays.  Also, inductance is variable for fine tuning the arc characteristics.

Designed with advanced inverter technology and running on single phase 230V, this powerful welding machine delivers smooth arcs and consistent results on steel, stainless steel, and aluminum. With versatile MIG and MMA welding modes, adjustable wire feed control, and a broad welding range suitable for both processes, this machine is ideal for professional workshops, fabrication environments, and serious DIY use. Compact, portable, and user friendly, it offers outstanding performance in a reliable, easy to operate package.

Inside the wire feed door, is a very handy settings chart.  Simply, find the material type and thickness in the chart and the WFS and Voltage settings are listed as a good starting point for that welding application.

The JASIC EVO series builds on the success of the highly popular PRO range, trusted by welders for over 10 years. The EVO range maintains Jasic’s renowned build quality while introducing enhanced usability and improved welding performance, making it a versatile and dependable choice for both professional and DIY welders.

Features

• Rugged, ergonomic design – Withstands tough environments while remaining comfortable during long welding sessions.
• Welding Engineer Mode – Allows precise parameter customisation for optimal welding performance.
• Quick factory reset – Easily restores original settings if incorrect adjustments are made.
• Energy-efficient cooling & airflow – On-demand fan and ABAP (Active Balancing Air Passage) system minimise noise, reduce contamination, extend component life, and evenly dissipate heat from power electronics.
• LED wire feeder cabinet & feed roll storage – Improves visibility and keeps consumables organised for faster setup.
• Voltage Reduction Device (VRD) – Protects key components for safer operation.
• Overcurrent and overheat protection – Prevents damage, ensuring long-lasting, reliable performance.
• Multi-process capability (MIG, MMA) – Flexibility for a wide range of welding tasks.
• Advanced digital controls – Precise settings with dual digital displays and rotary encoders.
• Generator friendly – Compatible with AVR type generators up to 13kVA.

Further Information

The EVO Power MIG 200 features ABAP (Active Balancing Air Passage) to optimise internal airflow, evenly dissipating heat and improving reliability. The Voltage Reduction Device (VRD) protects key components, enhancing operational safety.

Advanced inverter technology, digital display, and encoders allow precise welding parameter adjustments, while 2T/4T trigger control, variable inductance, and gas check & wire inching buttons provide full control. With an IP23S ingress protection rating, the machine is designed to withstand demanding industrial environments and deliver long lasting performance.

Control Panel Overview

1. Warning indicators: Yellow LED for overheating; red LED for under/over voltage.

2. Top digital display with rotary encoder: Adjust wire feed speed, current control, and material thickness.

3. Bottom digital display with rotary encoder: Adjust voltage, inductance/arc force, and burn back time.

4. Welding process selection area and selector switch: Choose MIG or MMA welding modes.

5. Torch trigger mode selection area: Switch between 2T or 4T for MIG torch finger control.

6. VRD warning indicator: The VRD (Voltage Reduction Device) LED will light when the machine is in MMA mode and the VRD function is enabled.

7. Top digital rotary encoder: Allows precise adjustment of wire feed speed and MMA welding current control.

8. Bottom digital rotary encoder: Adjust MIG voltage control, inductance/arc force, and burn-back time, depending on the welding process mode.

9. Wire inch switch: Activates the feed motor to advance wire through the torch; LED lights while inching.

10. Gas purge switch: Starts/stops gas flow for setup or checks; LED lights while purging.

• Jasic machines are well equipped and offer excellent value for money
• Built using high-quality components and IGBTs
• Industry leading 5 year extended warranty for peace of mind
• In house service work carried out by trained professionals in state of the art facilities
• Full compliance with all relevant safety and quality standards
• Each inverter undergoes 42 rigorous test procedures to ensure consistently high performance
• Significant ongoing investment in R&D keeps Jasic at the forefront of welding inverter technology
• Free product training available on all Jasic models at the Manchester Welding Academy
• Validation of machines available, to comply to EN50504:2008 (Please ask)

Why Buy the JASIC EVO Power MIG 200?

The EVO Power MIG 200 is designed to provide powerful, versatile MIG and MMA welding with smooth arc performance and precise digital control. Built around advanced inverter technology and backed by Jasic’s proven reliability, the machine is engineered to deliver consistent results on steel, stainless steel, and aluminium. With intuitive operation, robust construction, and a range of practical features, it is well-suited to workshops, fabrication environments, and home users requiring a dependable, high quality welding machine.

Jasic EVO Power MIG 200 Vs EVO MIG 200 PFC
