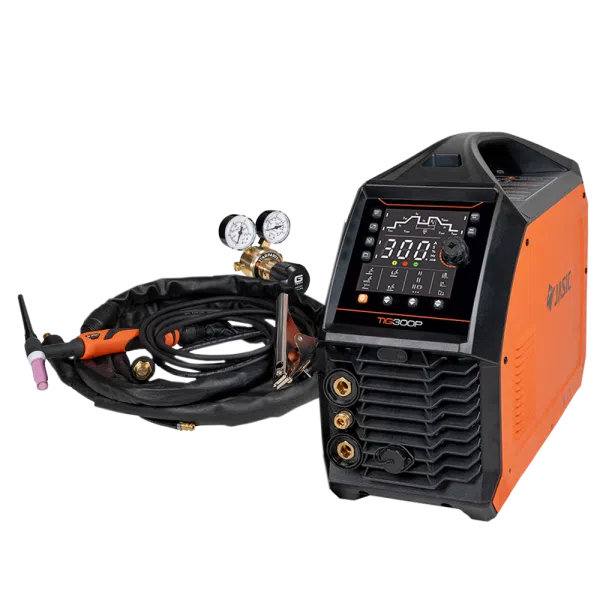

Jasic ET-300P EVO TIG 300P DC Pulse Inverter c/w Tig Torch 4m/Regulator/Hose & Lead Set

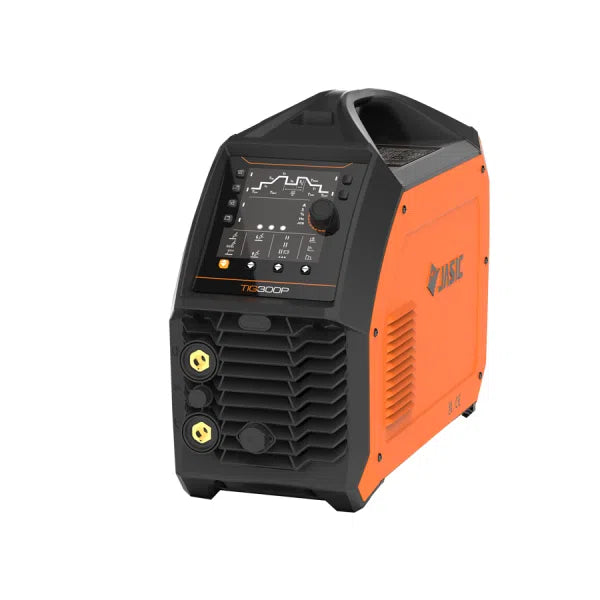

The NEW Jasic ET-300P – the DC Pulse TIG inverter engineered for professionals who demand uncompromising performance, flexibility and reliability.
Designed with the latest in advanced inverter technology, the ET-300P delivers industry-leading energy efficiency, precision arc control, and rugged durability that stands up to the toughest welding environments. The clear vision HD digital display ensures clear visibility in any light condition, so whether you're fabricating in the workshop or tackling site work, this welder is built to keep you going.
The ET-300P offers total control and flexibility with modular air- and water-cooled options available. Choose the control that suits you, with wired and wireless foot pedals, hand held remotes and even mobile app connectivity available – putting the power of precision right at your fingertips. With a rugged and ergonomic design and a IP23S rated casing, Its intelligently designed internal structure features dust-free air passages around critical components, backed with our industry leading 5 year no cost warranty – giving you peace of mind and performance you can trust.
Features
- TIG DC Pulse with Digital Control – Precise welding with stable arcs for superior results.
- Program Memory Storage – Save and recall welding programmes for consistent performance.
- Microprocessor Control – Manages a wide range of functions for easy, accurate operation.
- HF and Lift TIG Start – Choose High-Frequency or Lift arc ignition for versatile TIG welding.
- VRD Function – Enhances operator safety by reducing open-circuit voltage.
- Intelligent Fan & Cooler Control – Optimises cooling for longer machine life and reliability.
- Excellent Welding Characteristics – Smooth, stable arcs across MMA and TIG modes.
- AVR Generator Friendly – Compatible with unstable power sources for on-site flexibility.
- 2T/4T/Cycle & Spot Trigger Control – Flexible TIG torch operation for precision welding.
- Dash-Arc Technology – Achieves over 99% arc striking success for reliable starts.
- Smart Gas Technology – Automatically calculates optimal post-flow gas time for TIG mode.
- MMA Welding with Hot Start, Anti-Stick & Arc Force – Superior control and arc stability.
- Assisted Spot Welding Mode – Simplifies spot welding for repeatable, high-quality results.
- Flexible Remote Control Options – Wired, wireless, and mobile app control for convenience.
- Easy-Set Parameter Adjustment – Quick and simple setup of welding settings.
- Auto Sleep Mode – Industry leading energy efficiency reduces power consumption.
Technical Specifications |
|
|---|---|
| Input voltage | 50/60Hz AC 400V |
| No load voltage | 70V |
| Power factor | ≥85% |
| Power factor | 0.94 |
| Idle state power | <8W |
| Protection class | IP23S |
| Insulation class | H |
| Dimensions LxWxH | 558 x 230 x 416mm |
| Weight | 18.2Kg |
| Recommended generator size | 15kVA |
MMA |
|
|---|---|
| Leff | 9.2A |
| Rated input power | 10kVA |
| Current range | 10-270A |
| Rated duty cycle @ 40ºC | 40% |
TIG |
|
|---|---|
| Leff | 7.9A |
| Rated input power | 8.5kVA |
| Current range | 5-300A |
| Rated duty cycle @ 40ºC | 40% |
