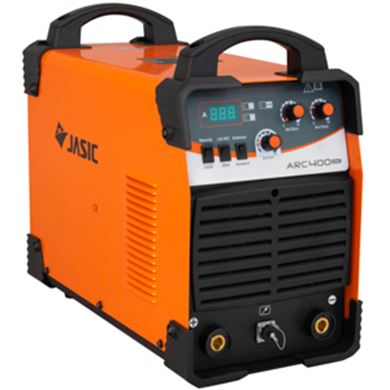

Jasic Arc 402 MMA Inverter c/w Cellulosic Function 400A 400V

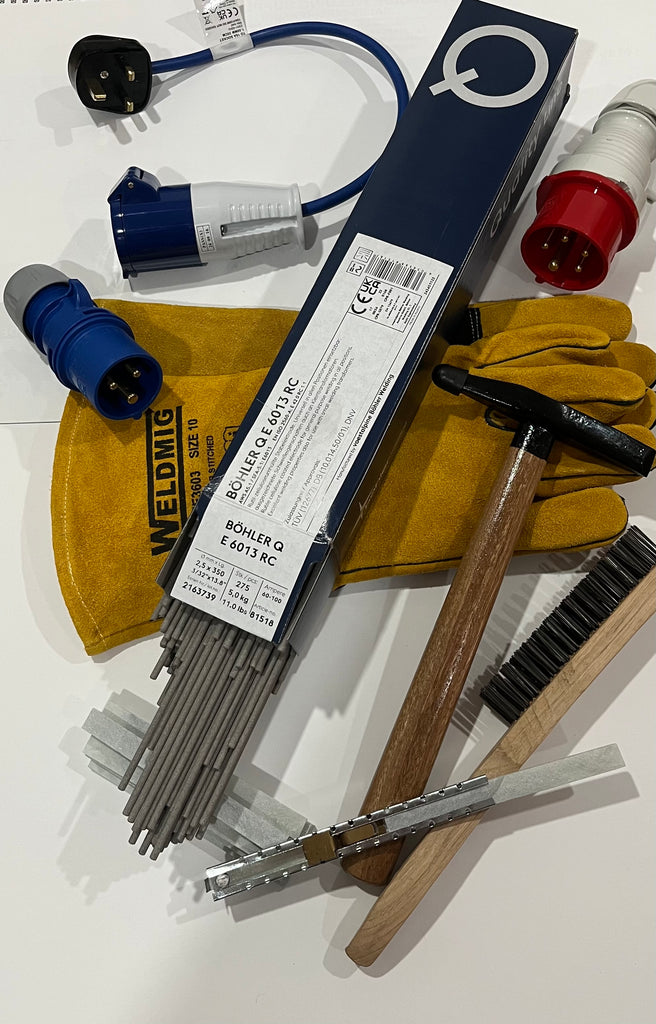

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder. Plug 415V 16/32Amp, 4/5Pin
Technical Data
Input Voltage AC 400V - 50/60 Hz
Ieff (A) 19.6
Input Power (kVA) 18.2
Current Range (A) 30 - 400
Duty Cycle @ 40°C 400A @ 60%
No-Load Voltage (V) 79 (9V - VRD)
Efficiency (%) 85
Power Factor 0.95
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 618 x 330 x 441
Weight (Kg) 20
Key Features
• IGBT inverter technology
• Suitable for welding cellulosic electrode
• Digital ammeter
• Anti-stick, Arc-force, Hot start, Lift TIG
• Advanced control technology
• Excellent weld characteristics
• Auto-compensation for voltage fluctuation
• Remote control option
• VRD option
-
Brochures & Manuals
- Sales Leaflet
- Operator Manual
- MMA Welding Guide
- Inverter Selection Guide
