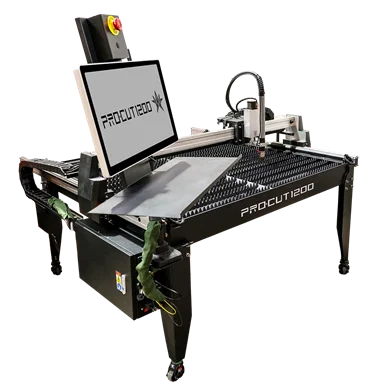

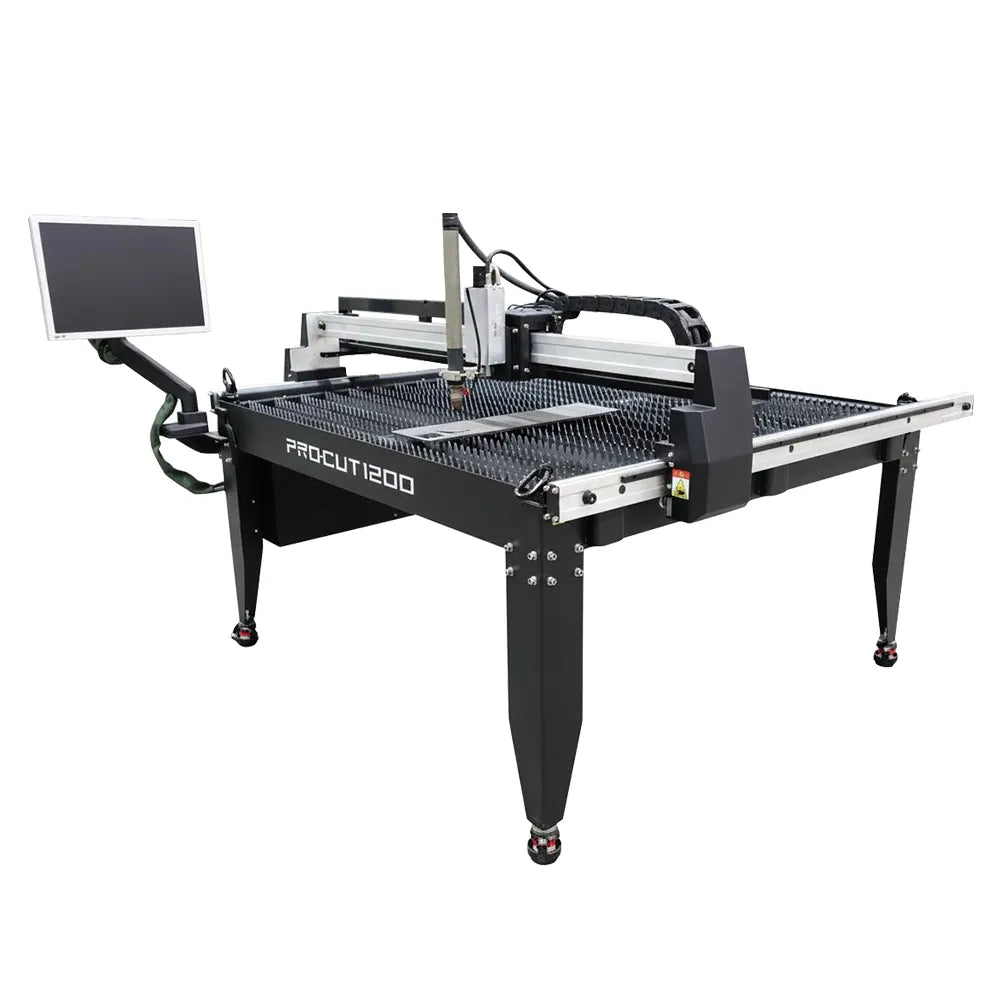

Jasic ZXPROCUT1200EP Pro Cut 1200 Cutting Table Packages
The PRO-CUT 1200 is a cost effective space saving solution for CNC precision quality cutting demands, suitable for light fabrication workshops and educational centres. Designed with simplicity and usability in mind, the PRO-CUT 1200 is easy to install and operate, meaning the operator can achieve high quality cuts right away.
Features
- 3 Axis CNC cutting table
- 1.2m x 1.2m cutting area
- Integrated water bed to assist with fume and debris capture

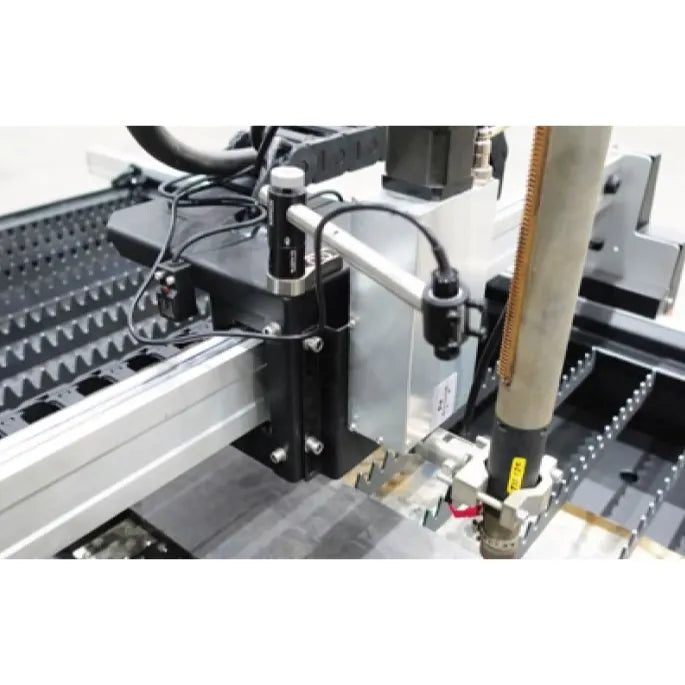

- Automatic plasma torch height control (Z axis)

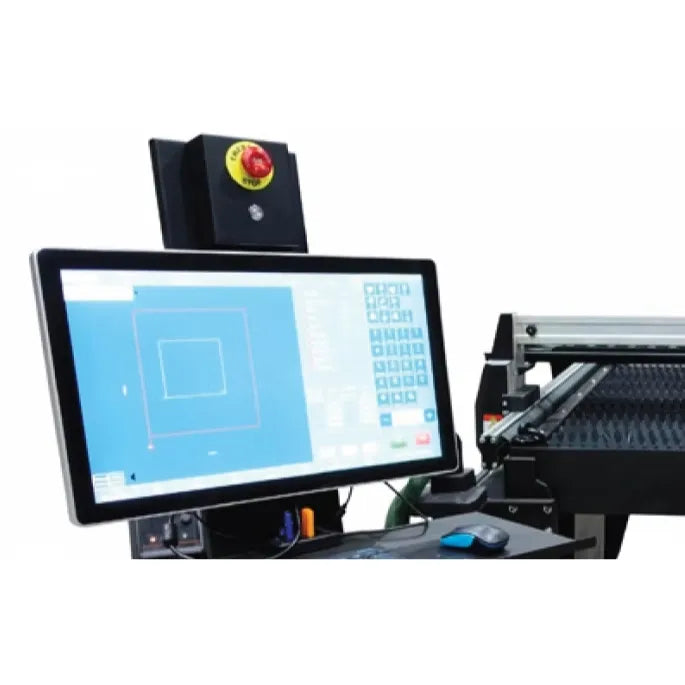

- 21” Windows 10 based touchscreen PC
- Pre-installed intuitive software allows the operator to quickly and easily create design files even with limited experience
- CNC & CAM software included which except DXF imported files
- Proximity limit switches on X & Y axis
- Cutting speeds up to 6000mm/min
- 230V AC 50/60Hz single phase power supply
- Fully compatible with Jasic plasma power sources with a pierce cut capacity of up to 20mm

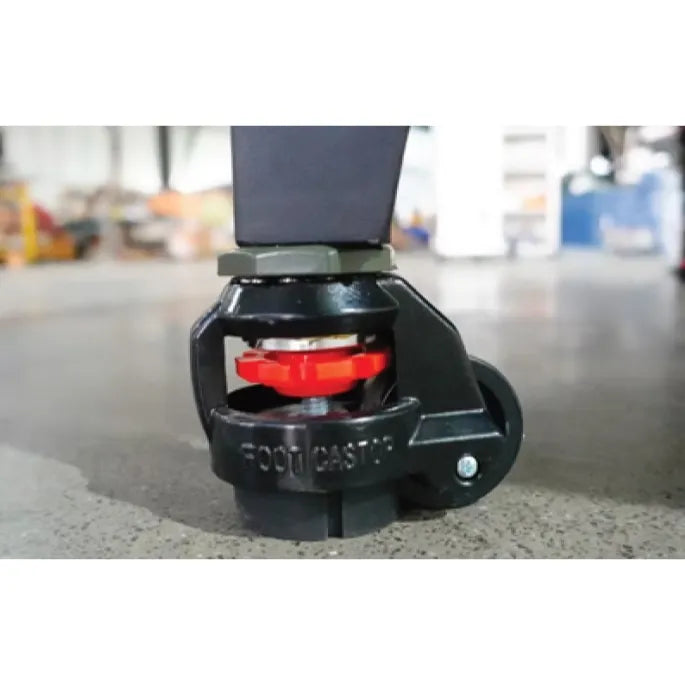

- Designed with castor feet for easy manoeuvrability around the workshop
- Supplied with the JIT-04 trolley to sit the plasma machine on
- Delivered part assembled, making self install and assembly easier
- Installation and training option is available (POA)
- CE & UKCA Certified
- 2 Year Warranty
Technical Data
- Input Voltage - 230V AC 50/60HZ
- Motors - Micro Step Motors 3 Amp
- Axis 3 - 3 (X, Y & Z) Axis
- Cutting Area - 1.2m x 1.2m (cutting area 1.25m x 1.25m)
- Cutting Speed (max) - 6000mm per minute
- Control System - 21” touchscreen PC c/w windows 10
- Table Weight 200 Kg - 200 Kg
- Max Weight on Table Bed - 175 Kg
- Plasma Torch - TM125 6m
- Dimensions (L x D x H) mm - 1650 x 1700 x 1150 (1.2m x 1.2m table)
Package Includes
- PRO-CUT 1200 CNC table
- Jasic Plasma source * Options below
- TM125 machine torch 6m
- 5L Biologicut fluid
- JIT-04 4 wheel Trolley
Power Source Options:
EVO CUT 45 - 230V AC (6mm max pierce cut)
OrderCode: ZXPROCUT1200EP-45
EVO CUT 80 - 400V AC (18mm max pierce cut)
OrderCode: ZXPROCUT1200EP-80
EVO CUT 100 - 400V AC (20mm max pierce cut)
OrderCode: ZXPROCUT1200EP-100
