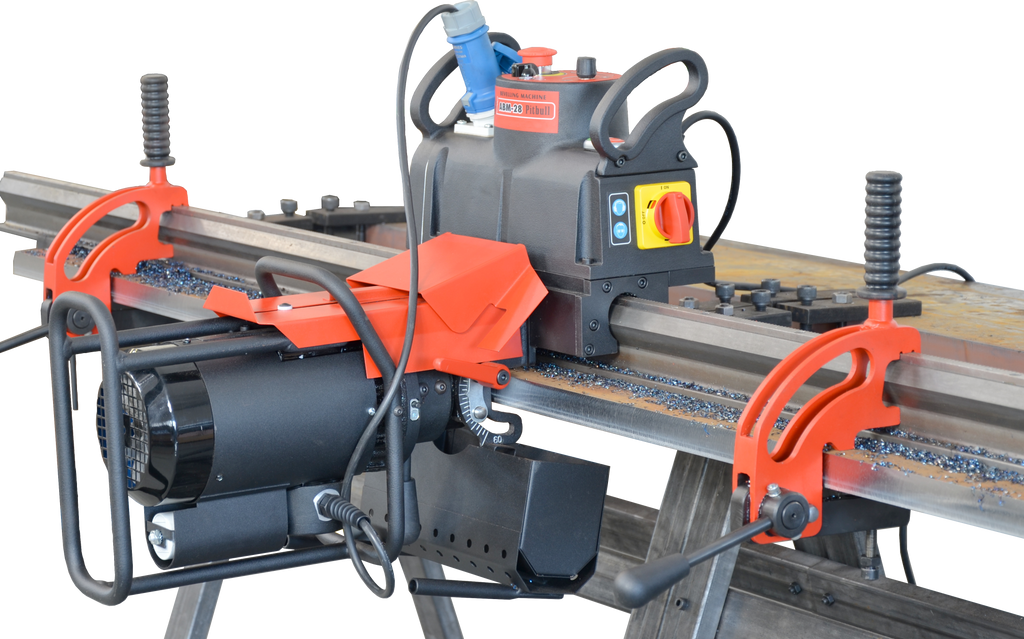

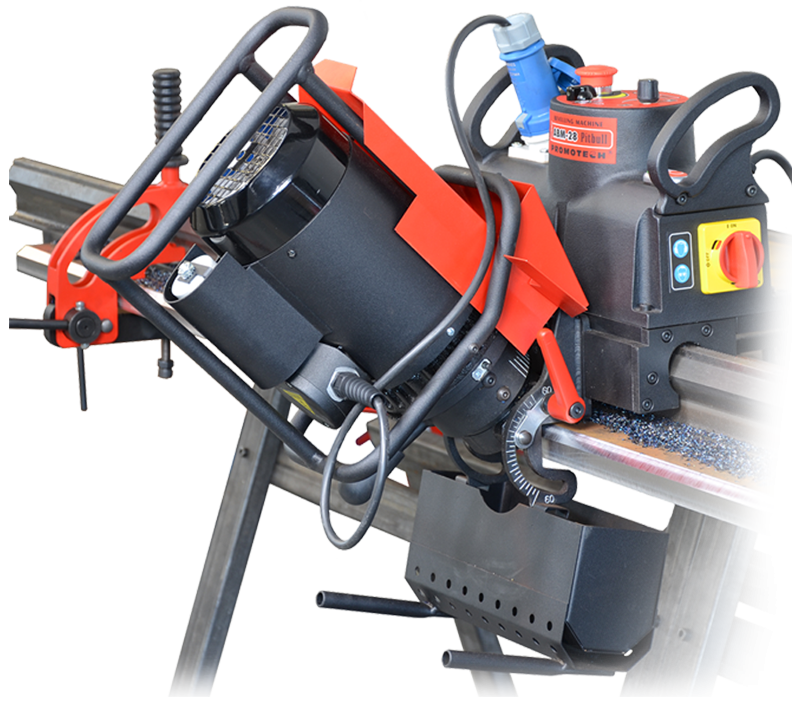

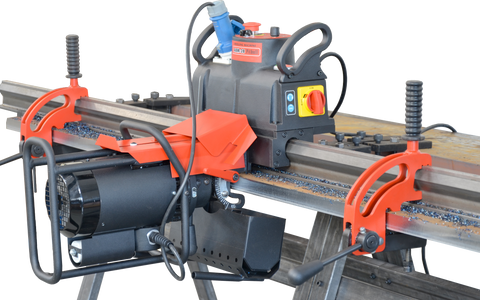

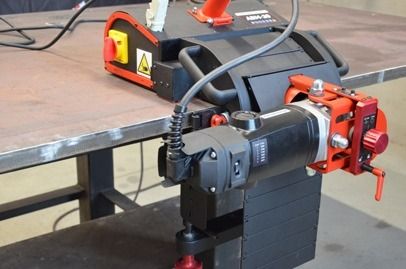

A New Generation Auto-feed Machine-With the ability to bevel steel on top, front and bottom edges, the ABM28 can run without the assistance of an operator with precision.

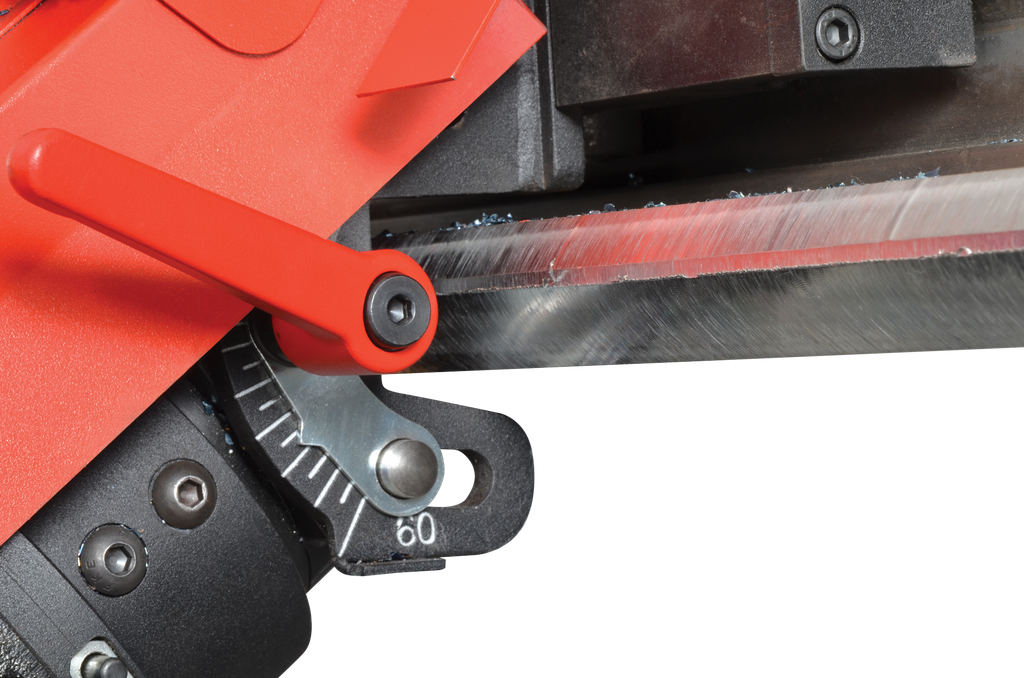

Continuous adjustment bevel angles between 60° and -60°, eliminates the need to turn the plate over. J-groove bevelling option available.
Features
Simple start-up auto feed, which runs without the assistance of an operator. Continuous adjustment bevel angles between 60° and -60°, eliminating the need to turn the plate over. Maximum bevel width (depending on the angle) from 28 to 35mm. Variable feed control for work on a variety of steel grades and thicknesses (up to 35mm as standard or optionally up to 70mm). Bevelling in both travel directions. Motor overload protection. J-groove bevelling option available. Optional extendable rails.
Package Includes
- Carriage mounted on a guide track.
- Milling unit.
- Milling unit support for bevelling at 60° to -60°.
- Additional guide track section.
- Track clamp for 10-35mm plates (3 pcs).
- Chip container.
- Set of tools.
- Clamp for 10-35mm thick plates (2 pcs).
- Wooden box.
- Operators manual.
Specification
Motor: 1600W
Spindle Speed (without load): 2780 RPM
Bevelling angle: 60° to -60°
Maximum bevel width: 35mm
Feed speed: 250 - 500mm

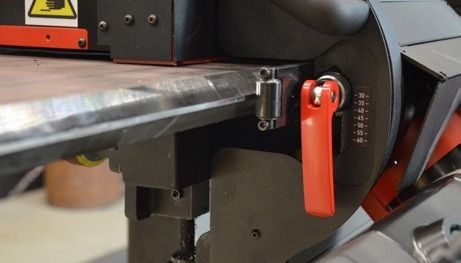

Plate thickness: Max 35mm (optional 36-70mm)
Length: 1211mm
Width 619mm
Height: 532mm
Weight (without milling head): 78.5Kg
Voltage: 220v / 50-60Hz
