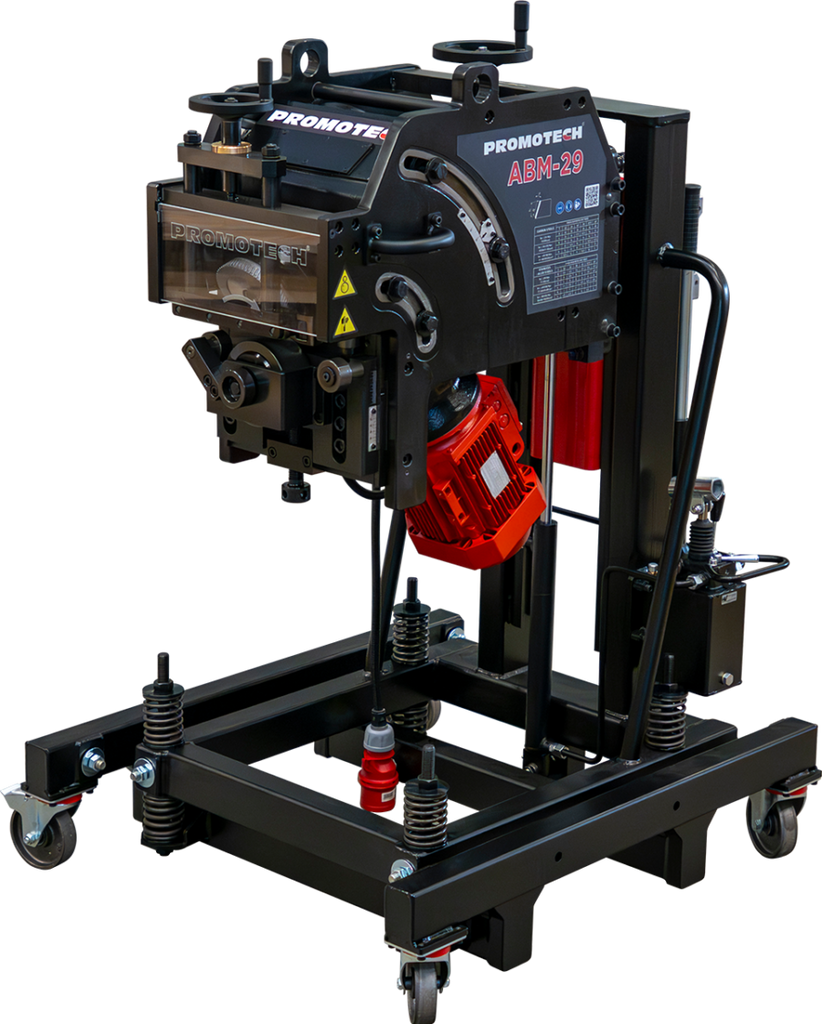

A New Generation Auto-feed Machine. The ABM-29 is a robust, self-propelled machine capable of bevelling up to a 20 mm width in one pass. It can create double-sided bevels ranging from 20 to 45 degrees on various types of steel, including stainless and other specialised steel plates, without requiring the plate to be flipped.
This beveller features an ergonomically designed trolley for easy transport and storage. The ABM-29 can be operated in stationary mode when machining smaller components or pipes with an inner diameter greater than 150 mm.
Features
Precise adjustment of the process parameters: bevel angle, bevel depth, and material thickness
Automatic feed allows ABM-29 to travel along the top and bottom edges of the plate.
ABM-29 can also bevel pipes with ID bigger than 150 mm (6”).
Operation in the inverted position
Built-in ergonomic trolley features a hydraulic height adjustment from 685 to 1000 mm
Stationary operation is possible for machining smaller workpieces.
Bevel Width: Achieves up to 3/4 inches (20 mm) in a single pass and a maximum of 1-5/8 inches (40 mm)with multiple passes.
Adjustable Milling: Continuous adjustment of milling height and bevel width.
Variable Bevel Angle: Adjustable between 20 and 45 degrees.
Integrated Trolley: Facilitates top and bottom bevelling with height adjustment from 27 to 39 inches (685 to 1000mm).
Stationary Operation: Suitable for machining small workpieces.
Pipe Machining: Capable of machining pipes with a minimum internal diameter of 6 inches.
Overload Protection: Ensures safe operation.
Reverse Travel Mode: Frees jammed tools.
Low-Noise Operation: Designed to operate quietly.
