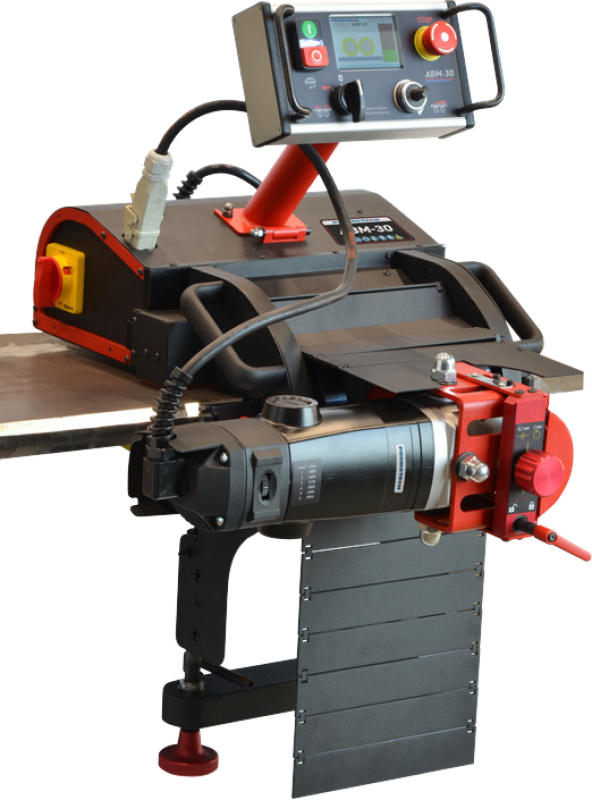

ABM-30 AUTO FEED TRACKLESS BEVELLER
The ABM-30 portable bevelling machine from Steel-Beast performs auto-feed bevelling on steel plates on the top, face and bottom edges. This beveller doesn't need a track to move along the steel plate yet still produces accurate high-quality, double-sided bevels without thermal distortion or heat-affected zones on plate thicknesses ranging from 8-60 mm.
The ABM-30 features an infinitely adjustable bevel angle between – 70 and + 70 degrees and is capable of producing bevels up to 30 mm wide. This also allows for facing in both directions with the milling head depth of 1 mm.
Convenient adjustment to plate -Precise bevel angle setting-Top bevelling-Bottom bevelling-Facing-off.
Needs no track to travel in both directions with feed speed up to 2 m/min
4 wheels feed drive eliminates hard physical work of the operator
Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense
- Feed direction indication
- Material detection
- Bar graph for motor load illustration
- Visual warning signals
Specification
| Voltage | 1~ 200-240 V, 50/60 Hz | 1~ 110-120 V, 50/60 Hz | |
| Power | 2200 W | |
| Spindle Rotational Speed (without load) | 1800-5650 rpm | |
| Feed Speed | 0-2 m/min (0-6.5 ft/min) | |
| Bevel Angle (β, Fig. 1) | From -70° to 70° | |
| Maximum Bevel Width (b, Fig.1) | 30mm (1.18") | |
| Sheet Thickness | 8-60mm (0.3-2.3") | |
| Required Ambient Temperature | 5-40°C | |
| Weight | 53kg (116.8 lbs) |
